Rear Wheel Speed Sensor

  1. Remove the rear seat cushion.
  2. Remove the rear pillar trim assembly.
  3. Remove the tire assembly.
    Fig 1: Removing Rear Pillar Trim Assembly
    G02702127Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the rear wheel speed sensor after disconnecting the wheel speed sensor connector.

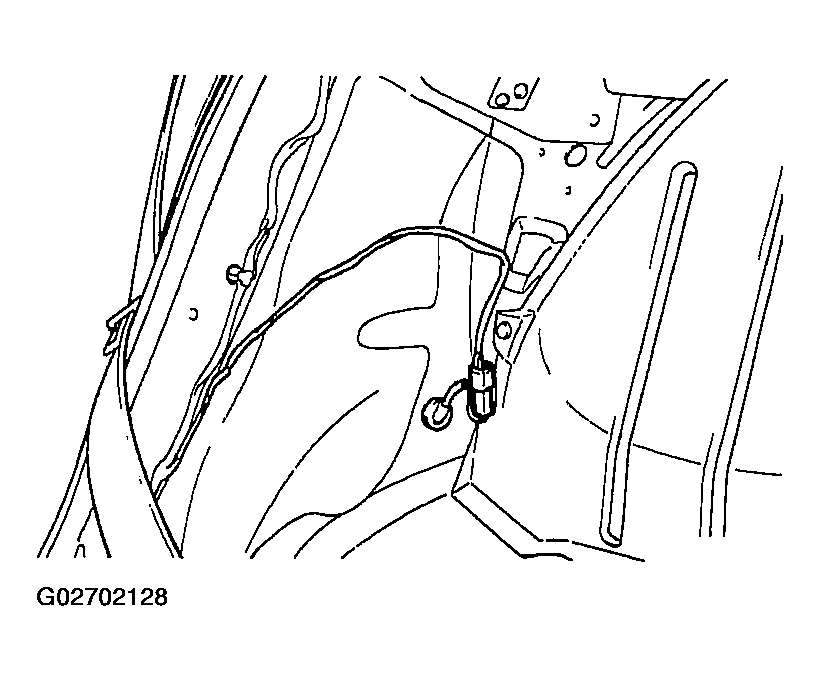

    Fig 2: Locating Speed Sensor
    G02702128Courtesy of KIA MOTORS AMERICA, INC.
