Front Wiper/Washer Switch

WARNING: This page is about a different car, the 2001 Kia Optima and 2001 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.

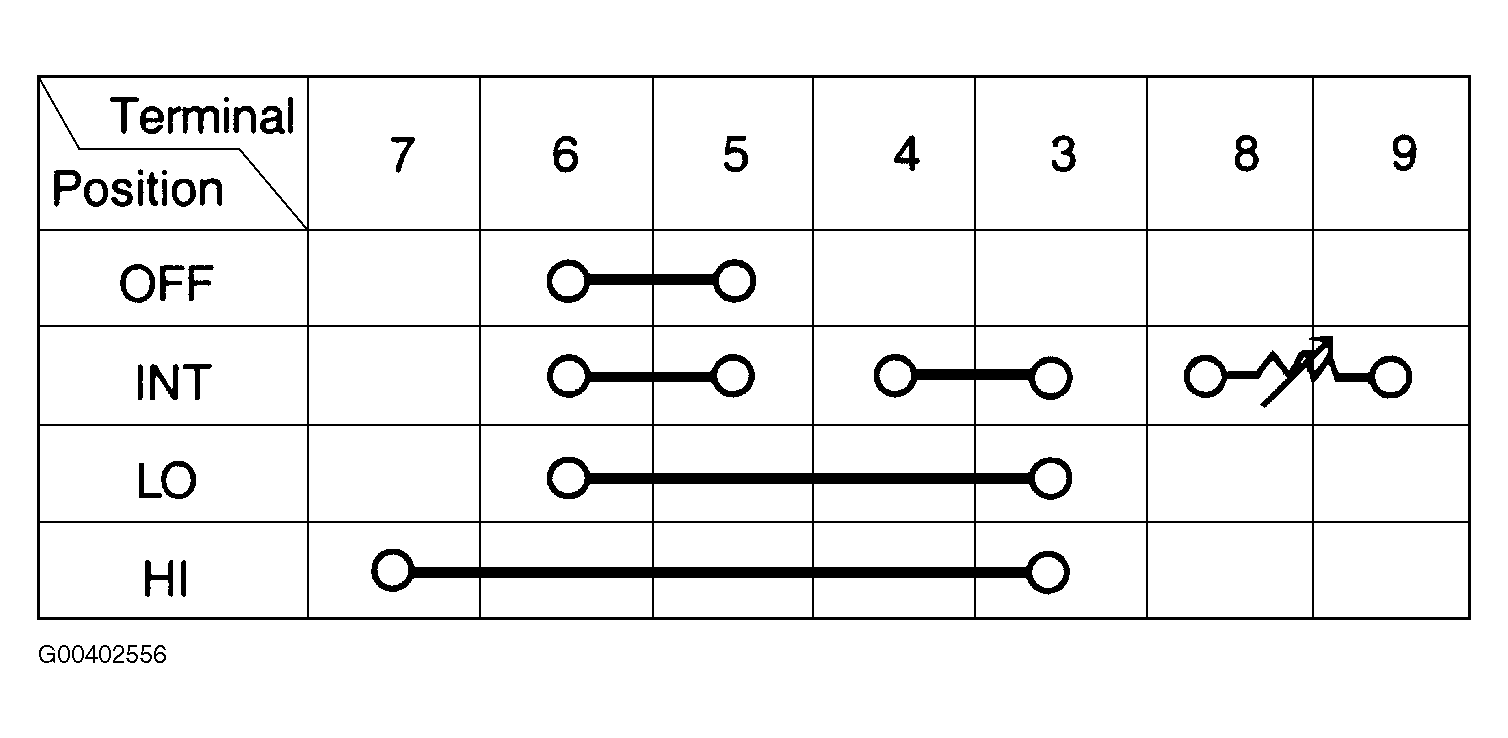

Fig 1: Wiper & Intermittent Volume Switch Testing Chart

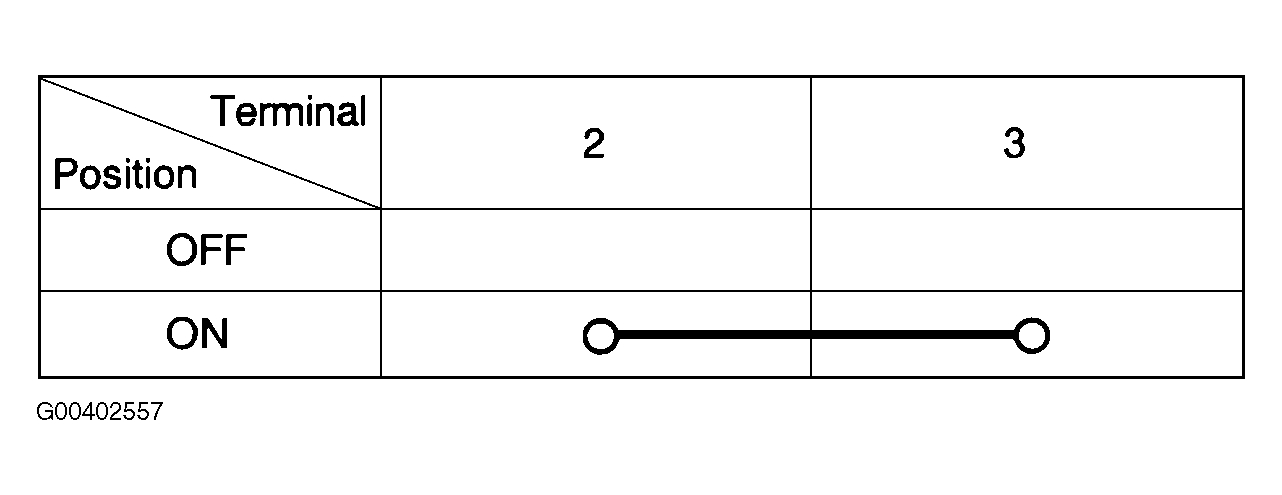

Fig 2: Washer Switch Testing Chart

Fig 3: Wiper/Washer Switch Connector Pinout
