Stop Lamp Switch Connector End View
Stop Lamp Switch Connector End View

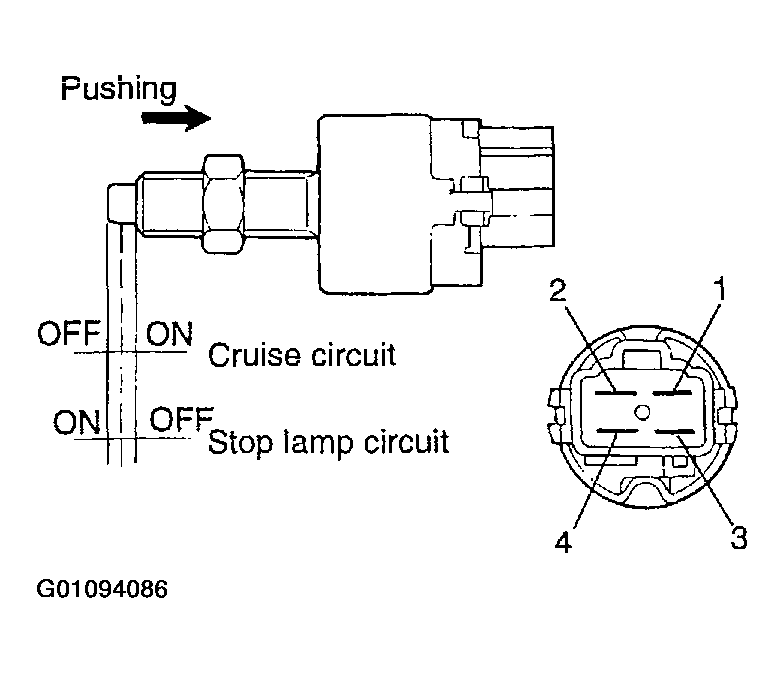

Fig 1: Stop Lamp Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
