Notes With Regard To Diagnosis

The phenomena listed in the following table are not abnormal.

Diagnosis detection condition can vary depending on the diagnosis code.

Make sure that checking requirements listed in the "Comment" are satisfied when checking the trouble symptom again after the diagnosis code has been erased.

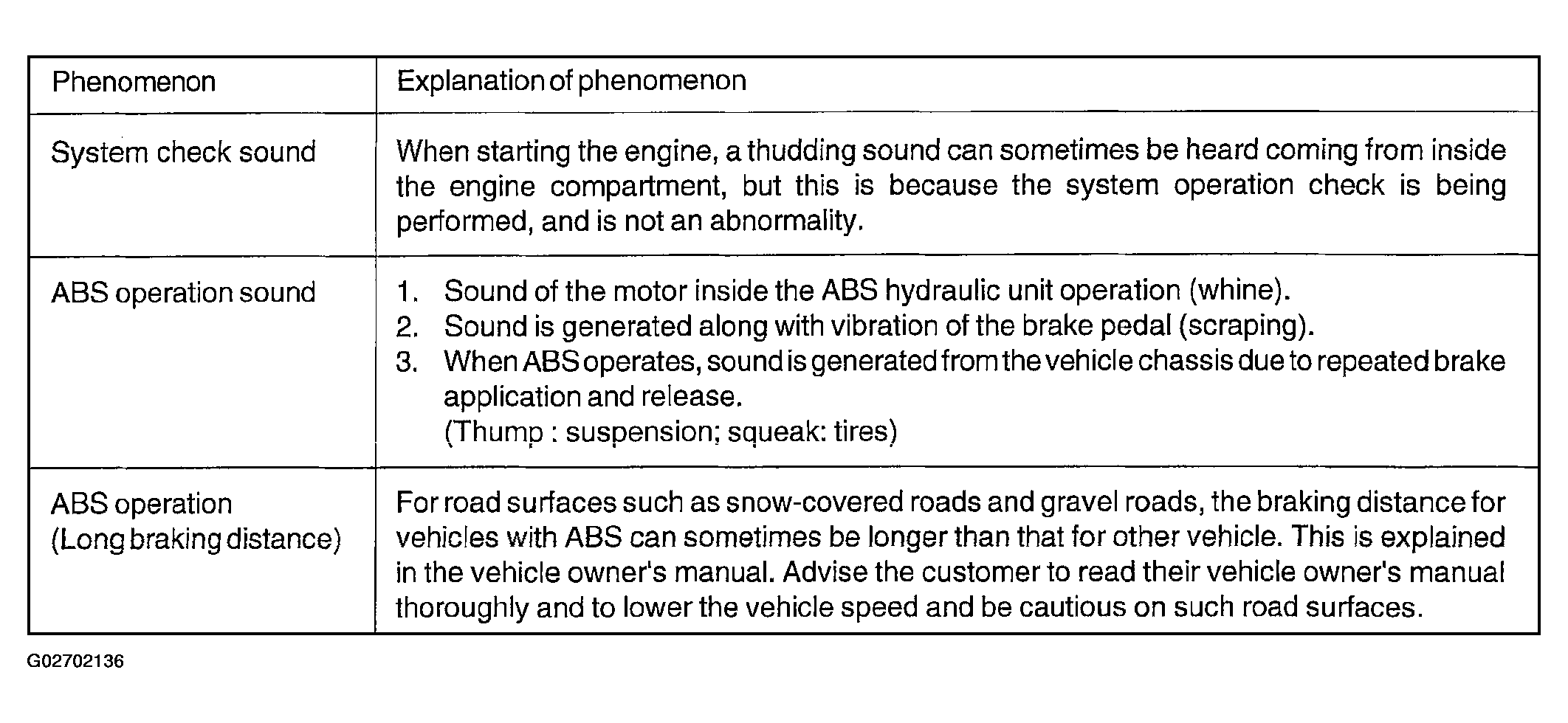

Fig 1: Identifying Phenomenon & Explanation

Courtesy of KIA MOTORS AMERICA, INC.

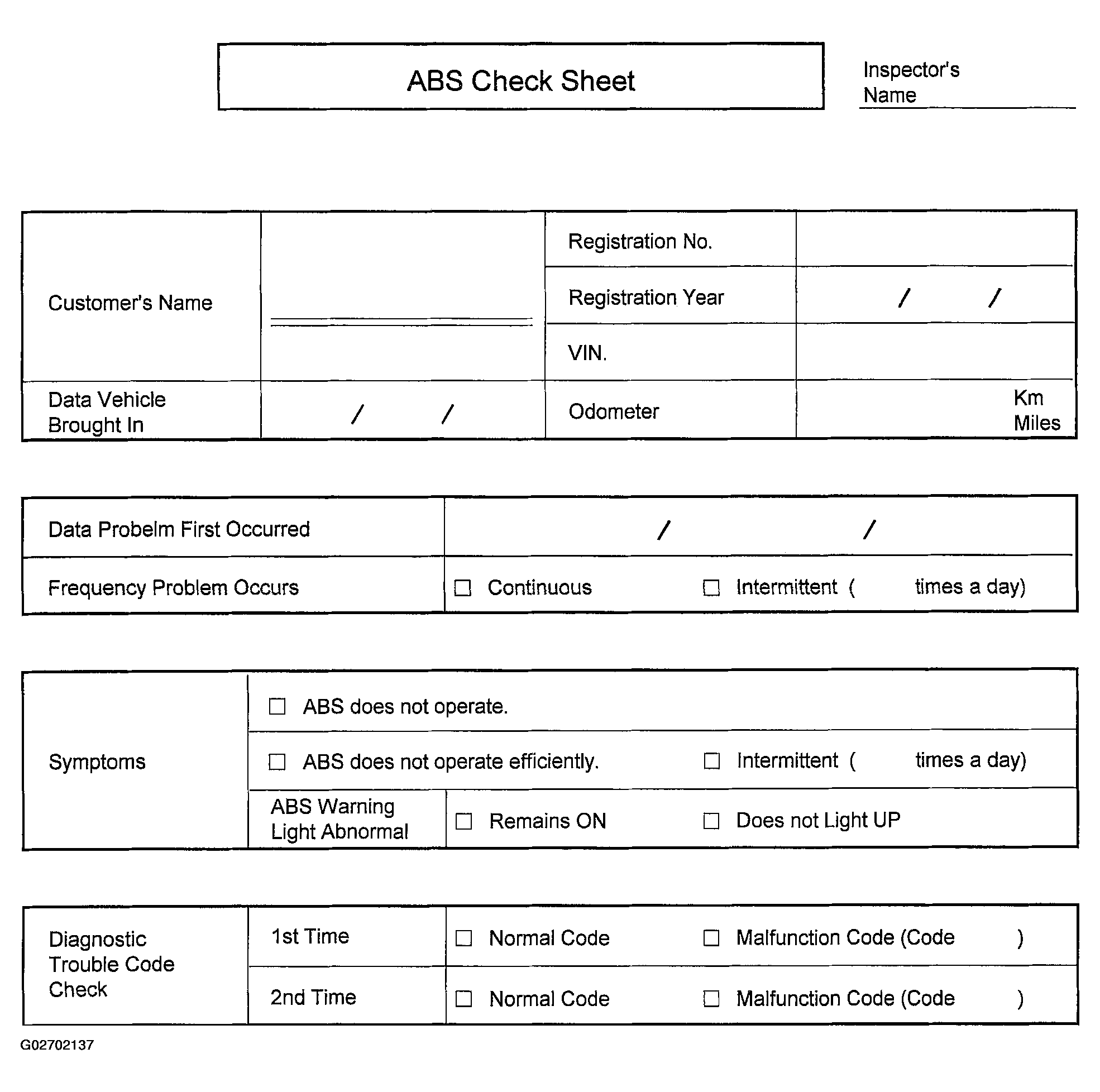

Fig 2: Identifying ABS Check Sheet

Courtesy of KIA MOTORS AMERICA, INC.
