Clutch Pedal: Components

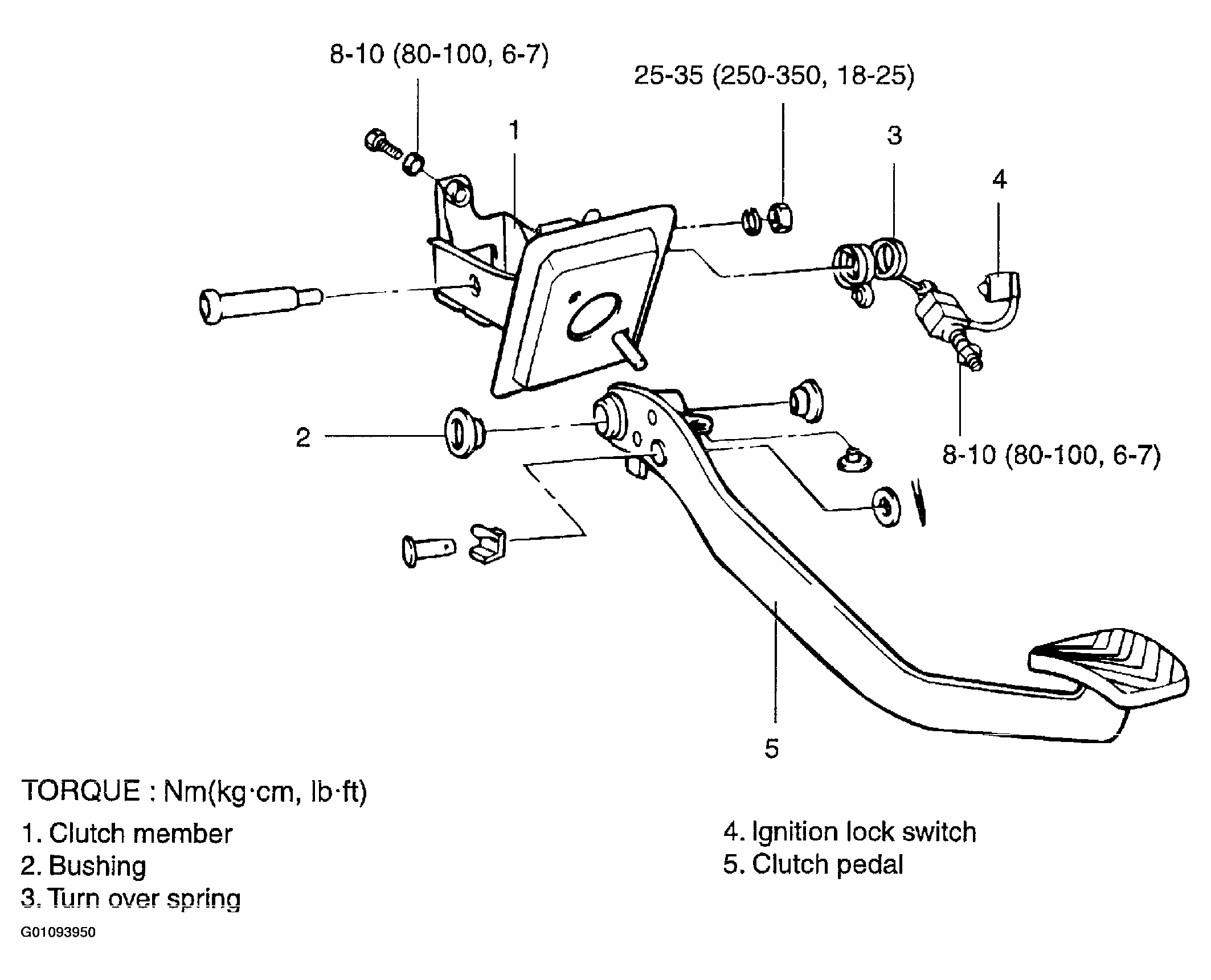

Fig 1: Illustrating Clutch Pedal Components

G01093950

Courtesy of KIA MOTORS AMERICA, INC.
