Clutch housing and transaxle case components

CAUTION: Do not remove an oil seal if not necessary.
  1. Disassemble in order on illustration. Refer to Disassembly Note  .
  2. Assembly will be in reverse order of disassembly.

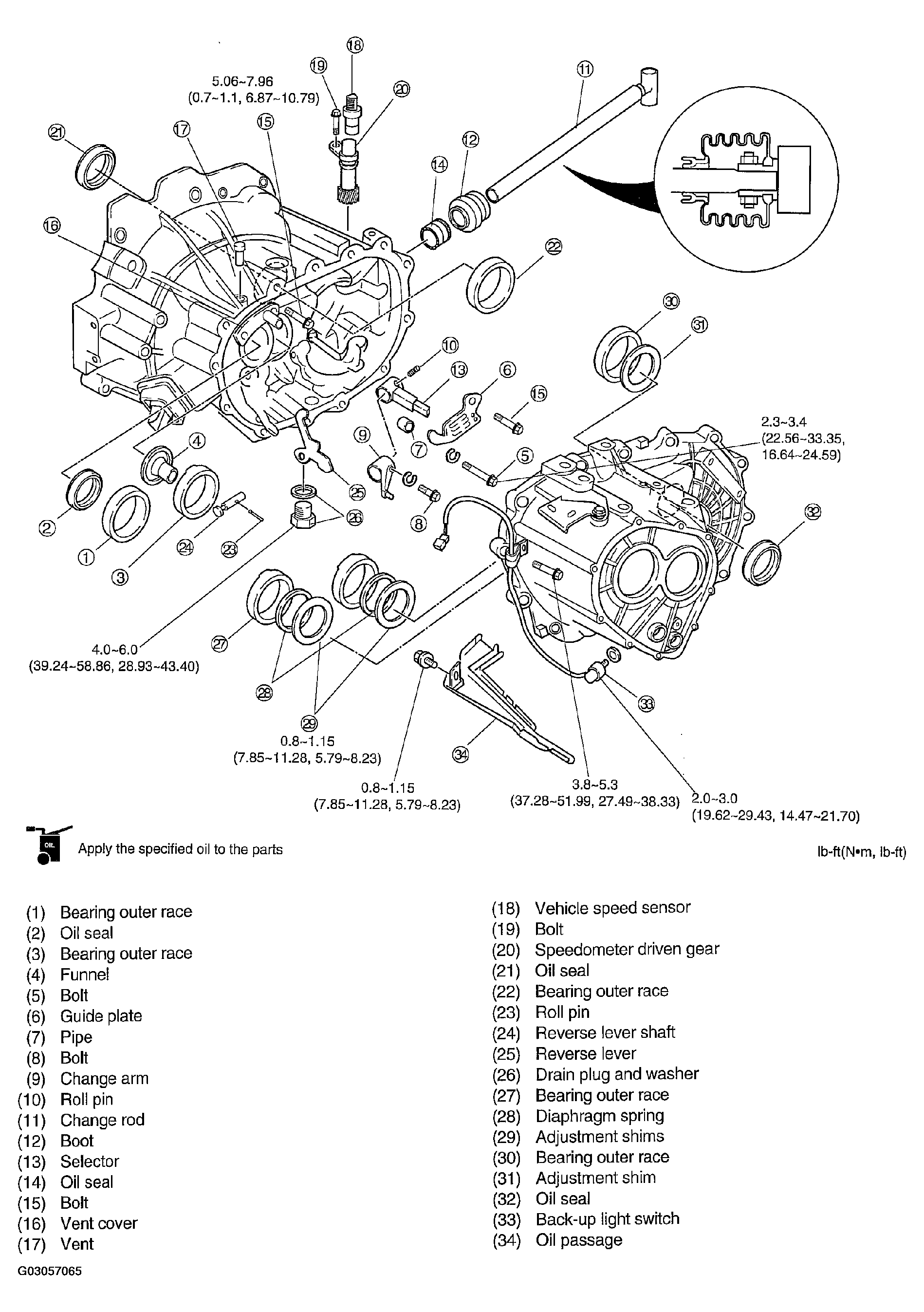

    Fig 1: Exploded View Of Clutch Housing & Transaxle Case Components
    G03057065
