Abs Warning Lamp

The ABS warning lamp in the instrument panel illuminates for 2 seconds after ignition key is turned ON. If the warning lamp does not turn off, or turns on intermittently, there is a malfunction in ABS.

When a malfunction of ABS occurs, the ABS will not operate and the brakes will operate as a standard brake system.

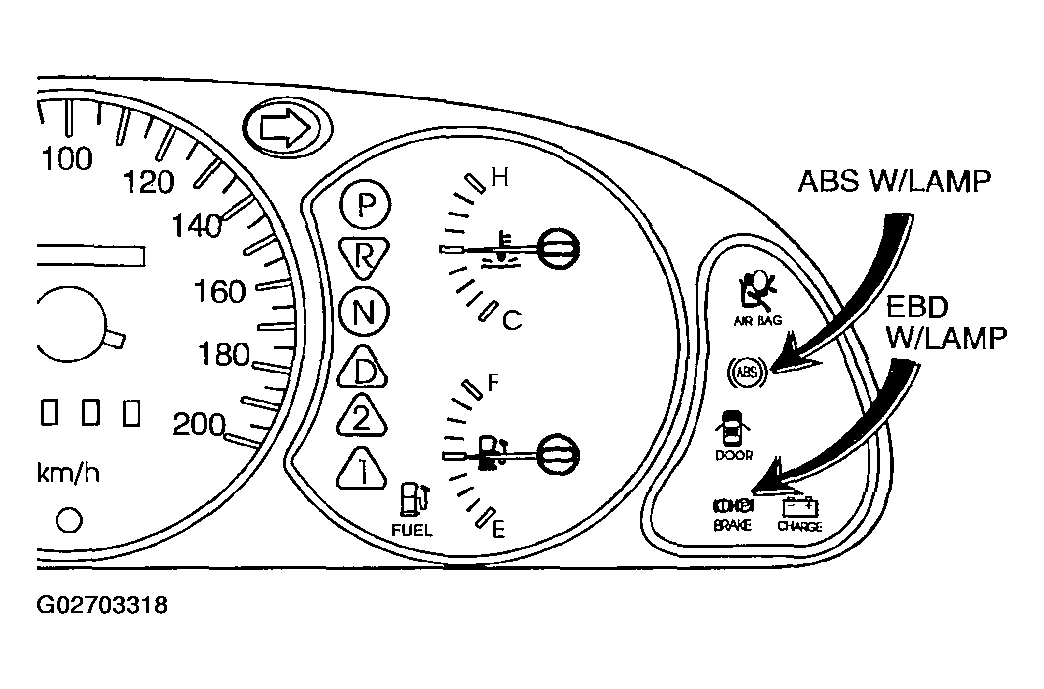

Fig 1: Locating ABS & EBD Warning Lights
G02703318
