Abs Cu Inspection

Terminal voltage table (B+: Battery voltage)

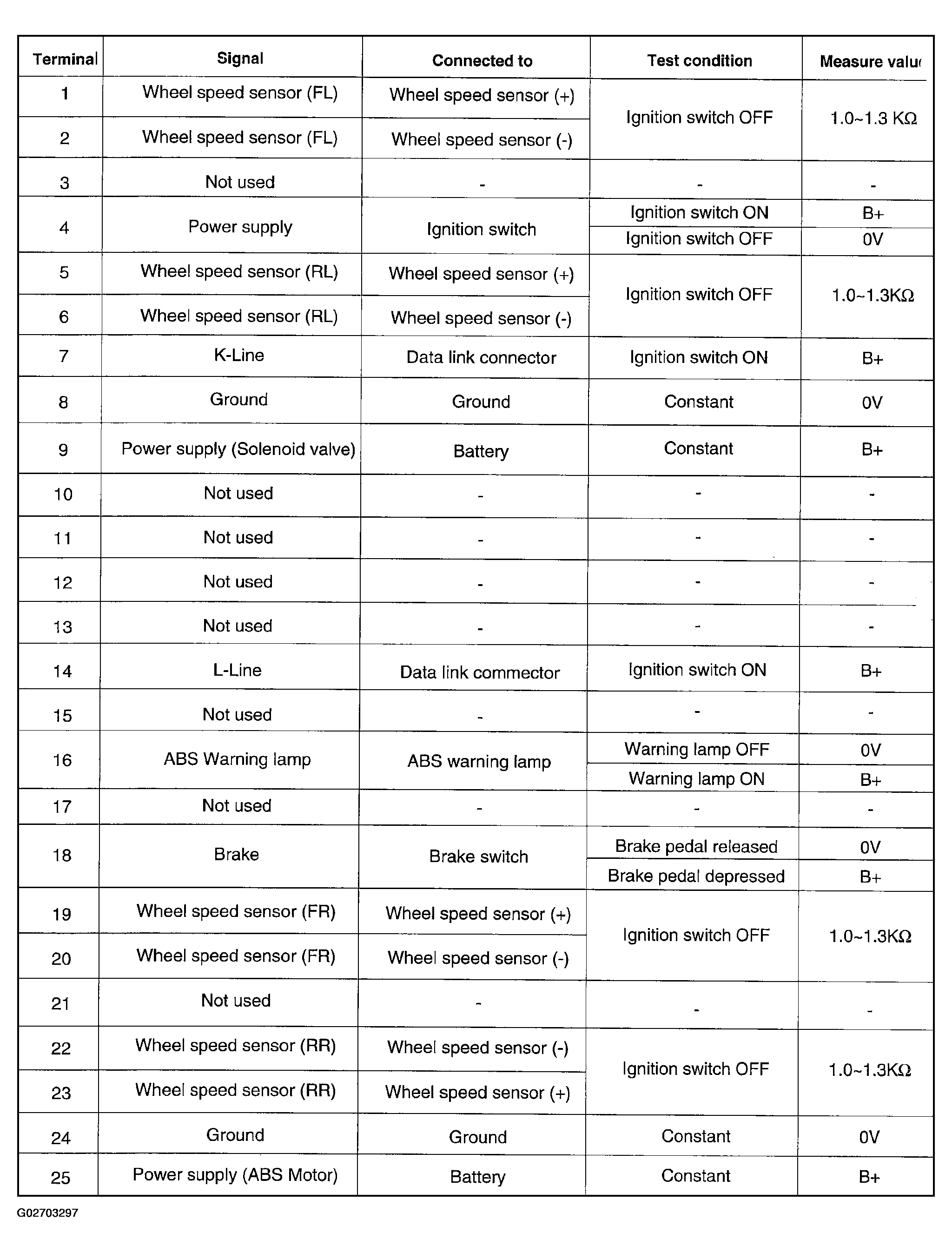

Fig 1: Identifying ABS CU Terminal Voltage Specifications

G02703297
