Assembly Note: Spring

Make sure that the hooked part of the spring is properly seated in the bracket groove, as shown in the illustration.

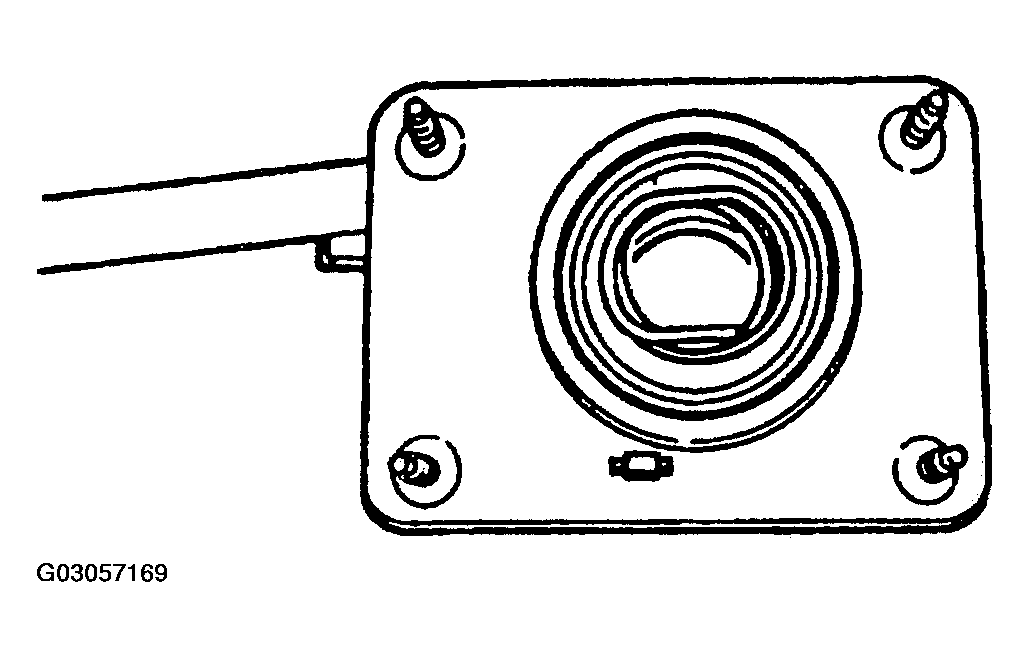

Fig 1: Positioning Spring In Bracket Groove

G03057169
