Clutch Operation

  1. Set reverse/forward clutch assembly onto oil pump.
  2. Check clutch operation by applying compressed air through fluid passages shown in Fig 1 .

    Applied air pressure: 57 psi (392 kPa, 4.0 kg/cm 2  ) maximum

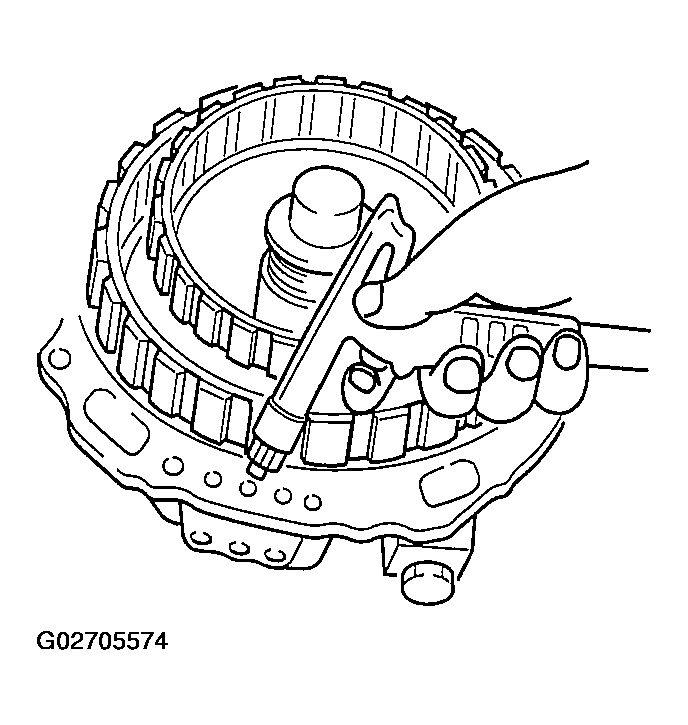

    Fig 1: Checking Clutch Operation Using Compressed Air
    G02705574
