Brake Clearance

  1. Measure clearance between retaining plate and snap ring.

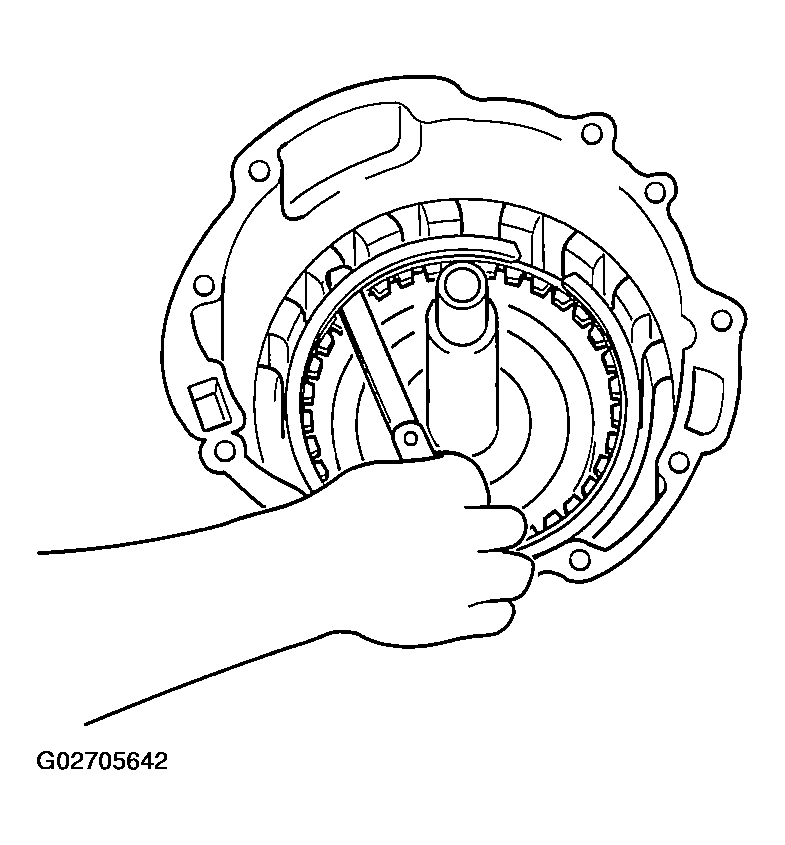

    Fig 1: Measuring Low & Reverse Brake Clearance
    G02705642
  2. If not as specified, replace parts as necessary.

    Low and reverse brake clearance: 0.083-0.094 in. (2.1-2.4 mm)
