Low And Reverse Brake: Disassembly

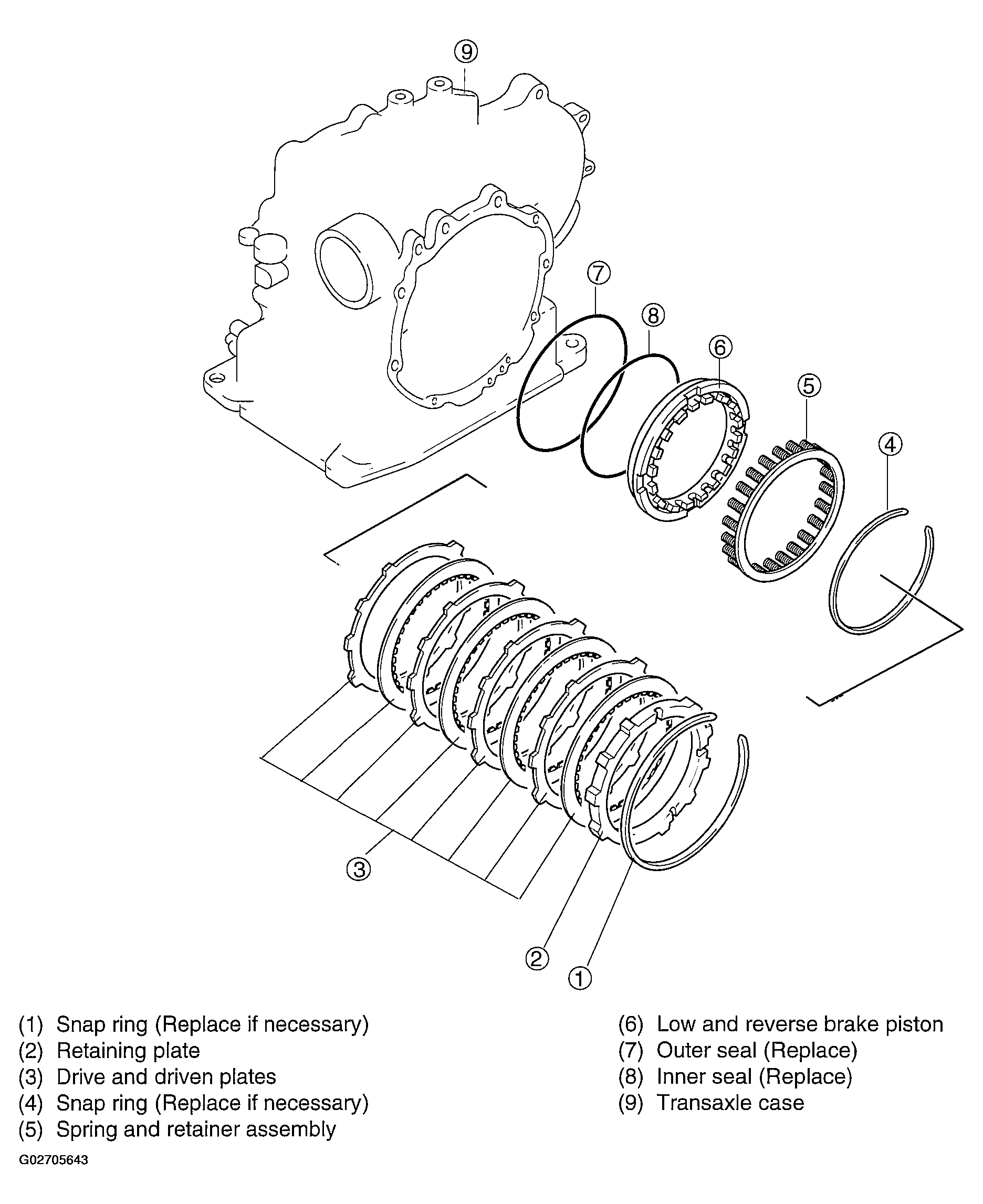

Fig 1: Exploded View Of Low & Reverse Brake Assembly
G02705643
  1. Remove snap ring.
  2. Remove retaining plate.
  3. Remove drive plates and driven plates, (each four)
  4. Install SST(0K2CA 190 AA1)  in transaxle case as shown in Fig 2 .

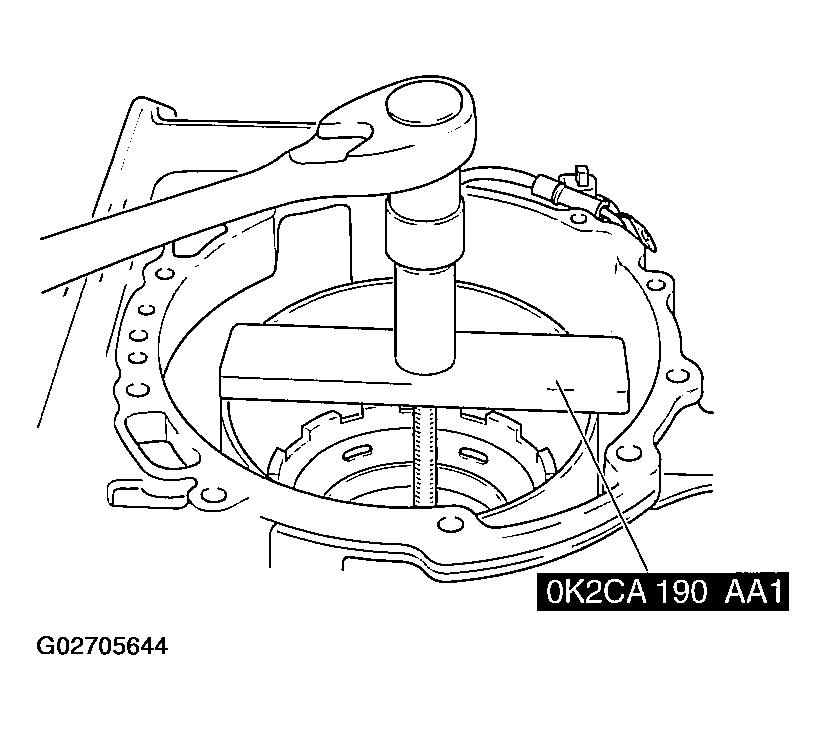

    Fig 2: Installing Spring Compressor Into Transaxle Case
    G02705644
  5. Compress spring and retainer assembly.
  6. Remove snap ring.
  7. Remove SST(0K201 190 AA1)  , then remove spring and spring retainer assembly.
  8. Remove low and reverse brake piston by applying compressed air through fluid passage.

    Air pressure: 57 psi (392 kPa, 4.0 kg/cm 2  )

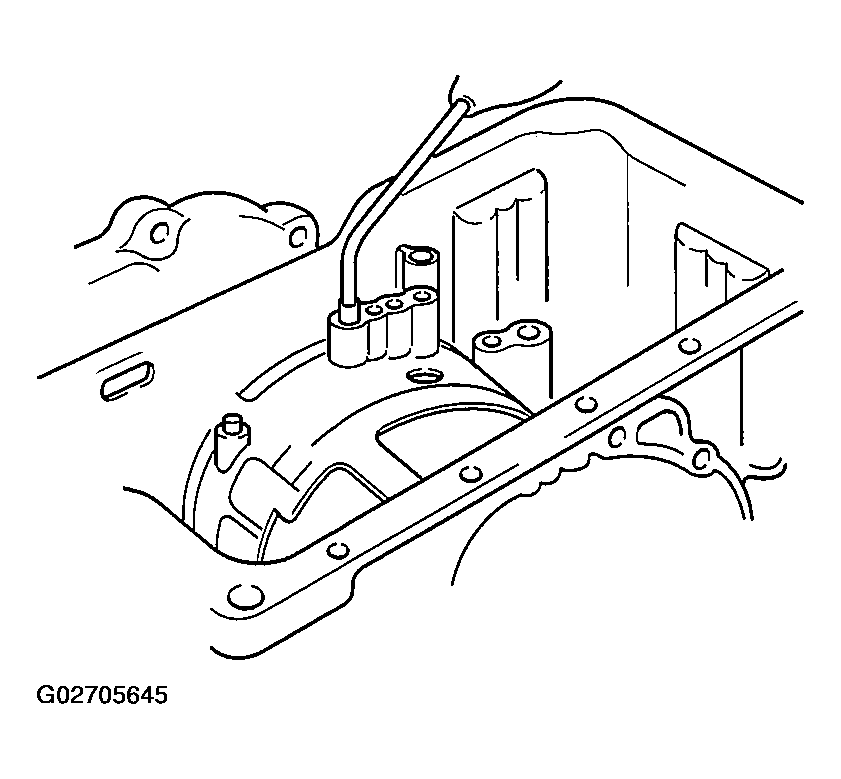

    Fig 3: Removing Low & Reverse Brake Piston Using Compressed Air
    G02705645
  9. Remove outer seal and inner seal from low and reverse brake piston.
