Idler Gear: Disassembly

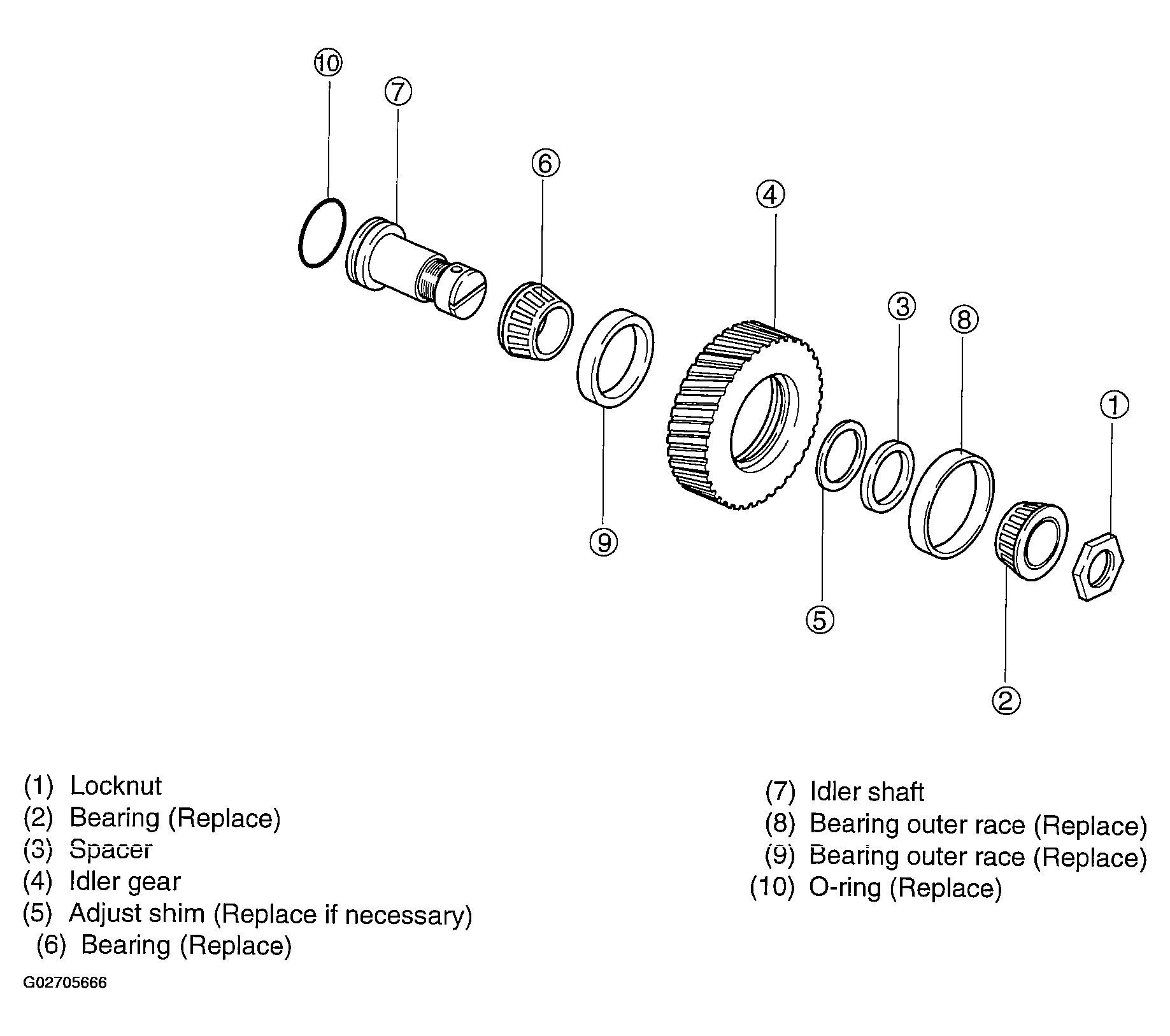

Fig 1: Exploded View Of Idler Gear Components

G02705666

NOTE: Use protective plates in vise to prevent damage to SST(0K130 191 034).

Secure idler shaft in a vise with SST(0K130 191 034), and remove lock nut.

Fig 2: Removing Idler Shaft Lock Nut
Remove bearing outer race from idler gear with SST(0K130 170 012).

Fig 3: Removing Bearing Outer Race From Idler Gear
