Special Service Tools

Fig 1: Support, Engine 0K201 170 AA0A

G02705275

Used to remove transaxle.

Fig 2: Leak Checker 0K201 190 016

G02705276

Used to disassemble/assemble 3-4 clutch.

Fig 3: Attachment 0K130 322 020

G02705277

Used to measure bearing preload.

Fig 4: Installer, Oil Seal 0K201 170 AA1

G02705278

Used to install oil seal.

Fig 5: Compressor Set, Return Spring 0K201 190 AA1

G02705279

Used to measure line pressure.

Fig 6: Holder, Idler Gear Shaft 0K130 191 034

G02705280

Used to adjust bearing preload.

Fig 7: Installer, Oil Seal 0K201 190 017

G02705281

Used to disassemble transaxle.

Fig 8: Holder, Turbine Shaft 0K201 190 019

G02705282

Used to remove/install turbine shaft.

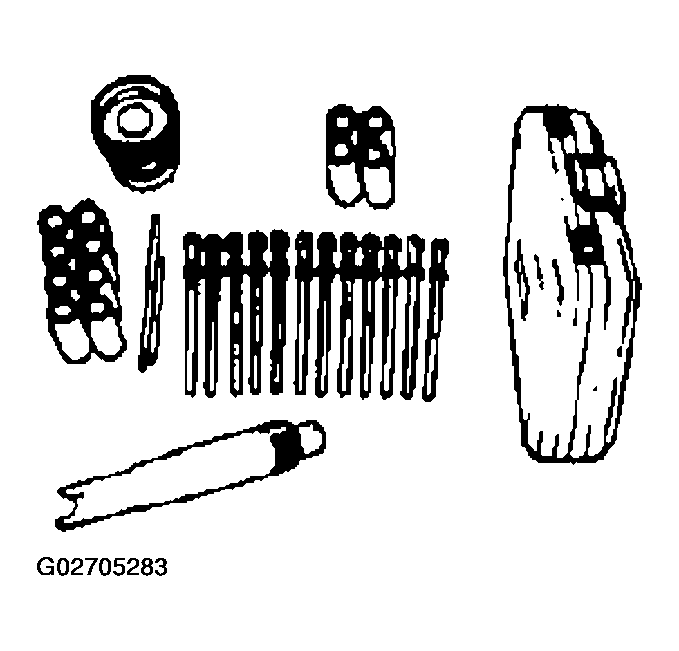

Fig 9: Selector Set, Shim 0K201 175 AA0

G02705283

Used to adjust preload.

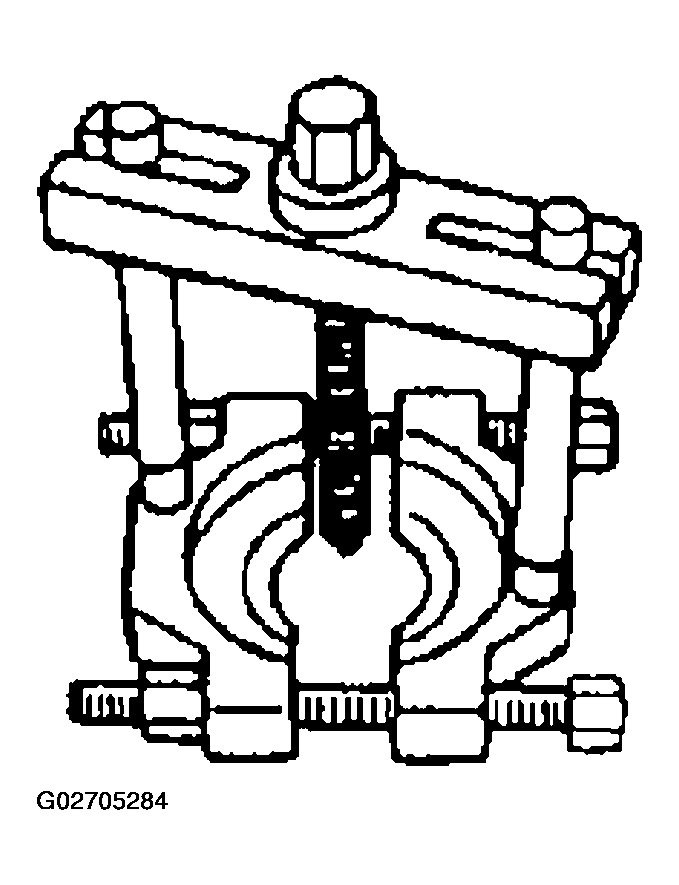

Fig 10: Puller, Bearing 0K130 171 013

G02705284

Used to remove differential bearing.

Fig 11: Servo Piston Lifter 0K2CA 190 AA2

G02705285

Used to press servo piston lifter.

Fig 12: Spring Retainer Assembly 0K2CA 190 AA1

G02705286

Used to remove/install spring retainer assembly.

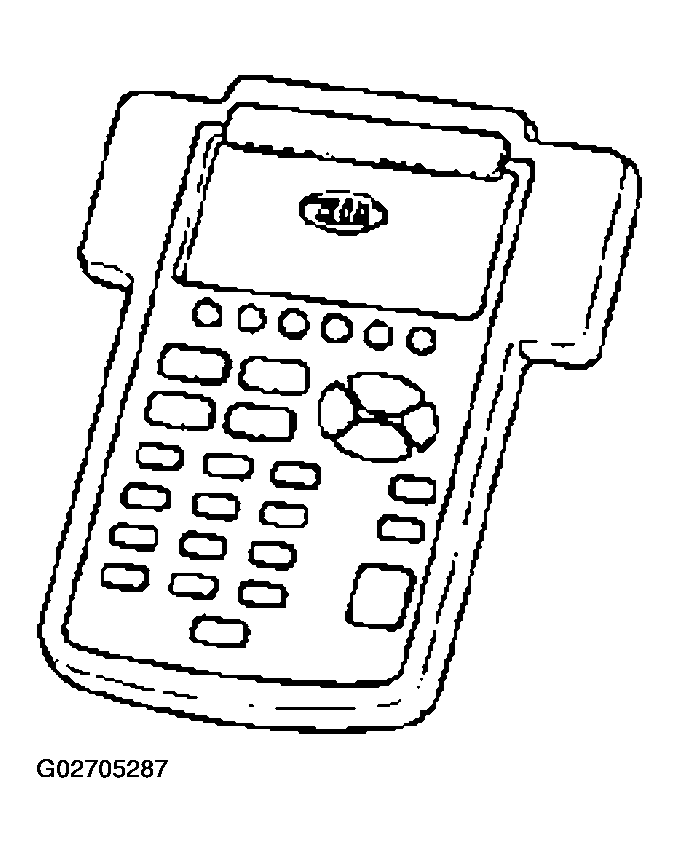

Fig 13: Hi-Scan Pro 0K2CA 089 HSP

G02705287

Used for diagnosis trouble codes.
