3-4 Clutch: Disassembly

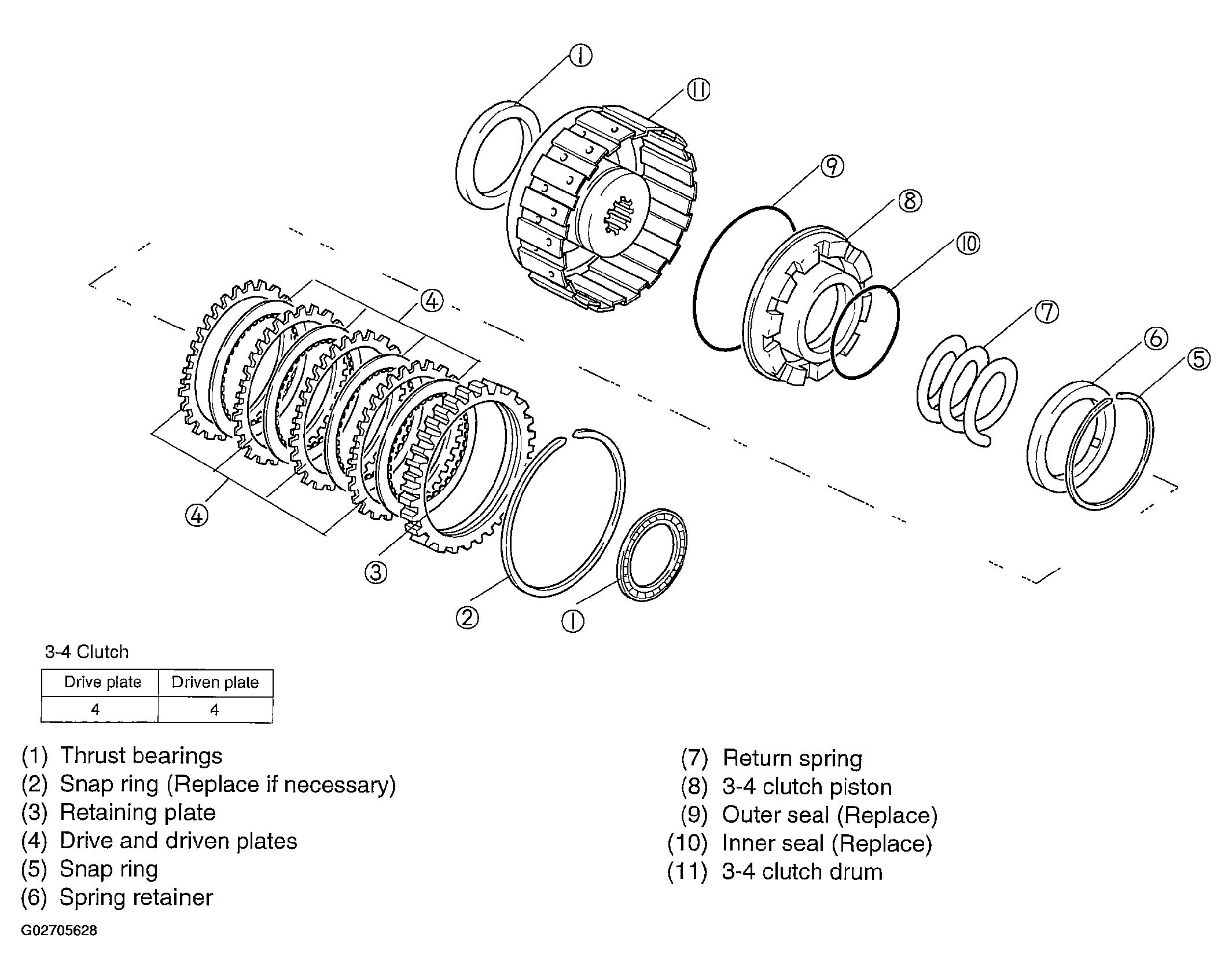

Fig 1: Exploded View Of 3-4 Clutch
G02705628
  1. Remove two trust bearings.

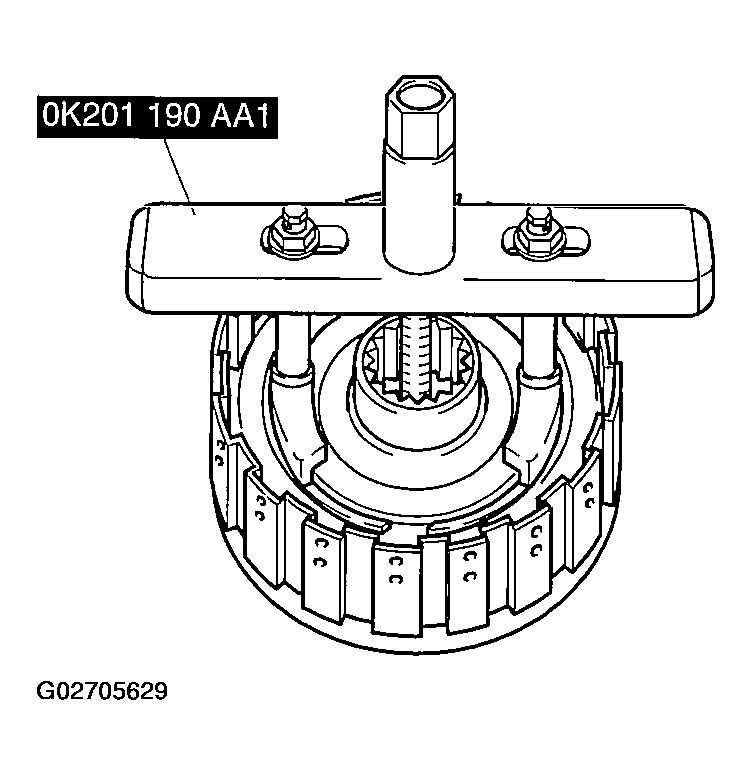

  2. Install SST(0K201 190 AA1)  to 3-4 clutch as shown in Fig 2 .
    Fig 2: Installing Clutch Spring Compressor
    G02705629
  3. Compress spring and retainer assembly.
  4. Remove snap ring.
  5. Remove SST(0K201 190 AA1),  then remove spring and retainer.
  6. Remove snap ring.
  7. Remove retaining plate.
  8. Remove drive and driven plates. (each three)

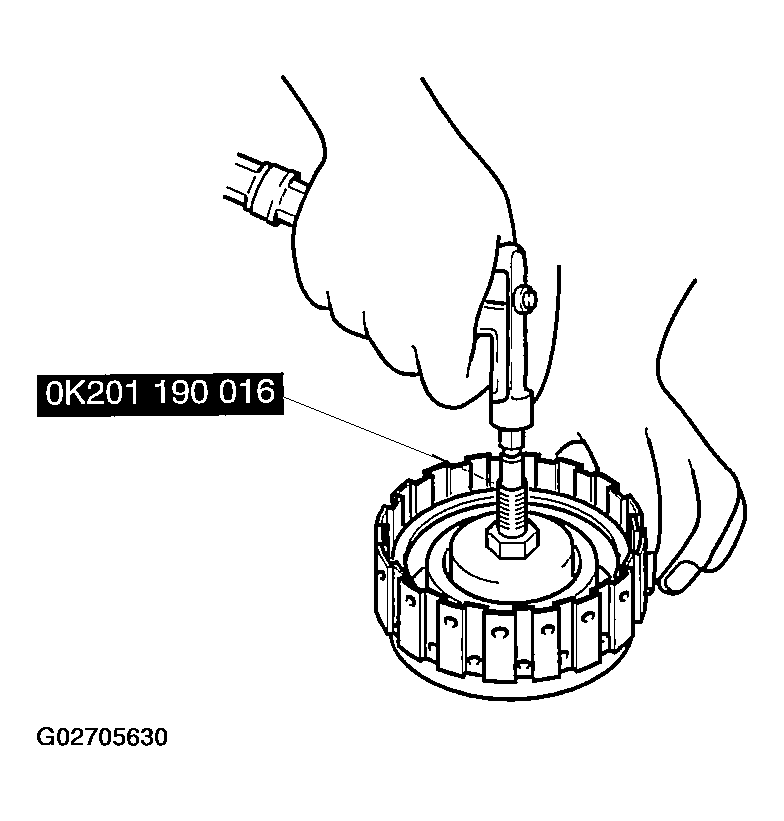

  9. Install SST(0K201 190 016)  onto 3-4 clutch drum and remove 3-4 clutch piston using compressed air.

    Air pressure: 57 psi (392 kPa, 4.0 kg/cm 2  ) maximum

    Fig 3: Removing 3-4 Clutch Piston Using Compressed Air
    G02705630
  10. Remove SST(0K201 190 016).
  11. Remove outer seal and inner seal 3-4 clutch piston.
