Home >> Kia >> 2001 >> Rio Automatic >> Repair and Diagnosis >> Electrical >> Fuses & Circuit Breakers >> Identification >> Passenger Compartment Fuse Box

Passenger Compartment Fuse Box

NOTE: Passenger compartment fuse box is located on driver's side dash panel, below steering wheel.

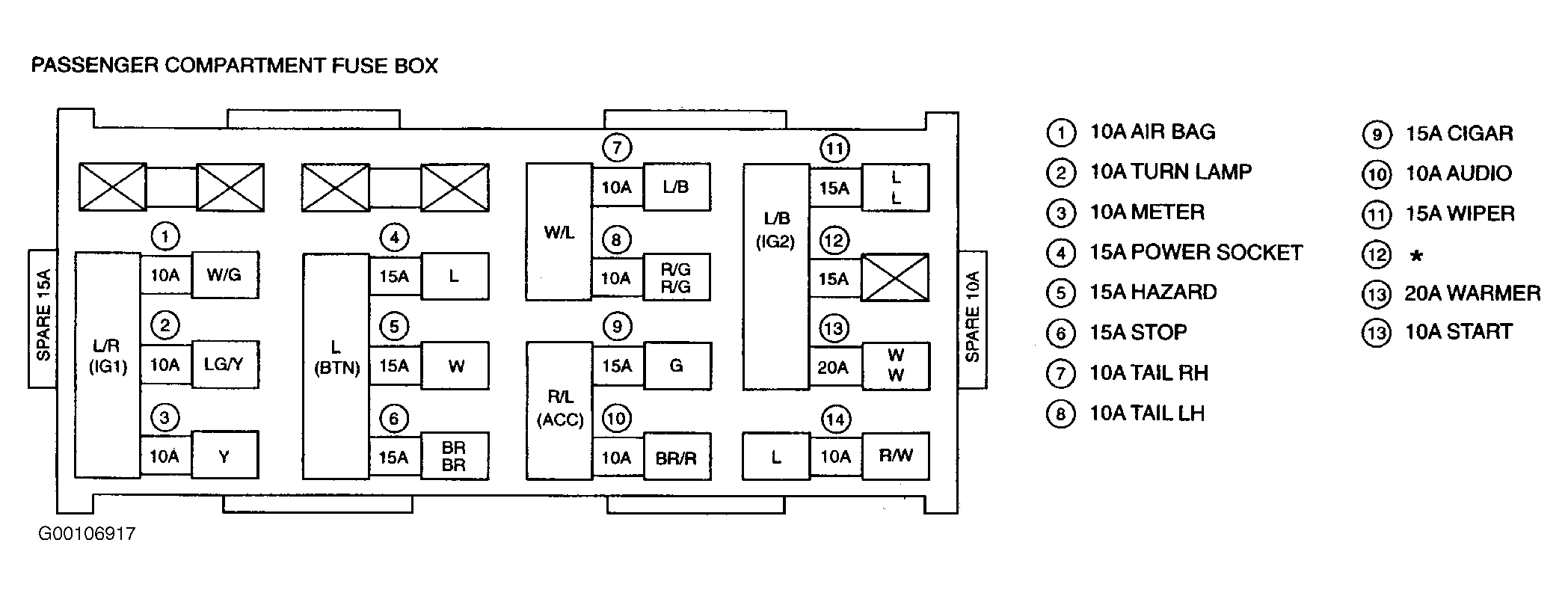

Fig 1: Identifying Passenger Compartment Fuse Box Components
G00106917Courtesy of KIA MOTORS AMERICA, INC.
