Engine Compartment Fuse/Relay Box

NOTE: Engine compartment fuse/relay box is located on driver's side of engine compartment.

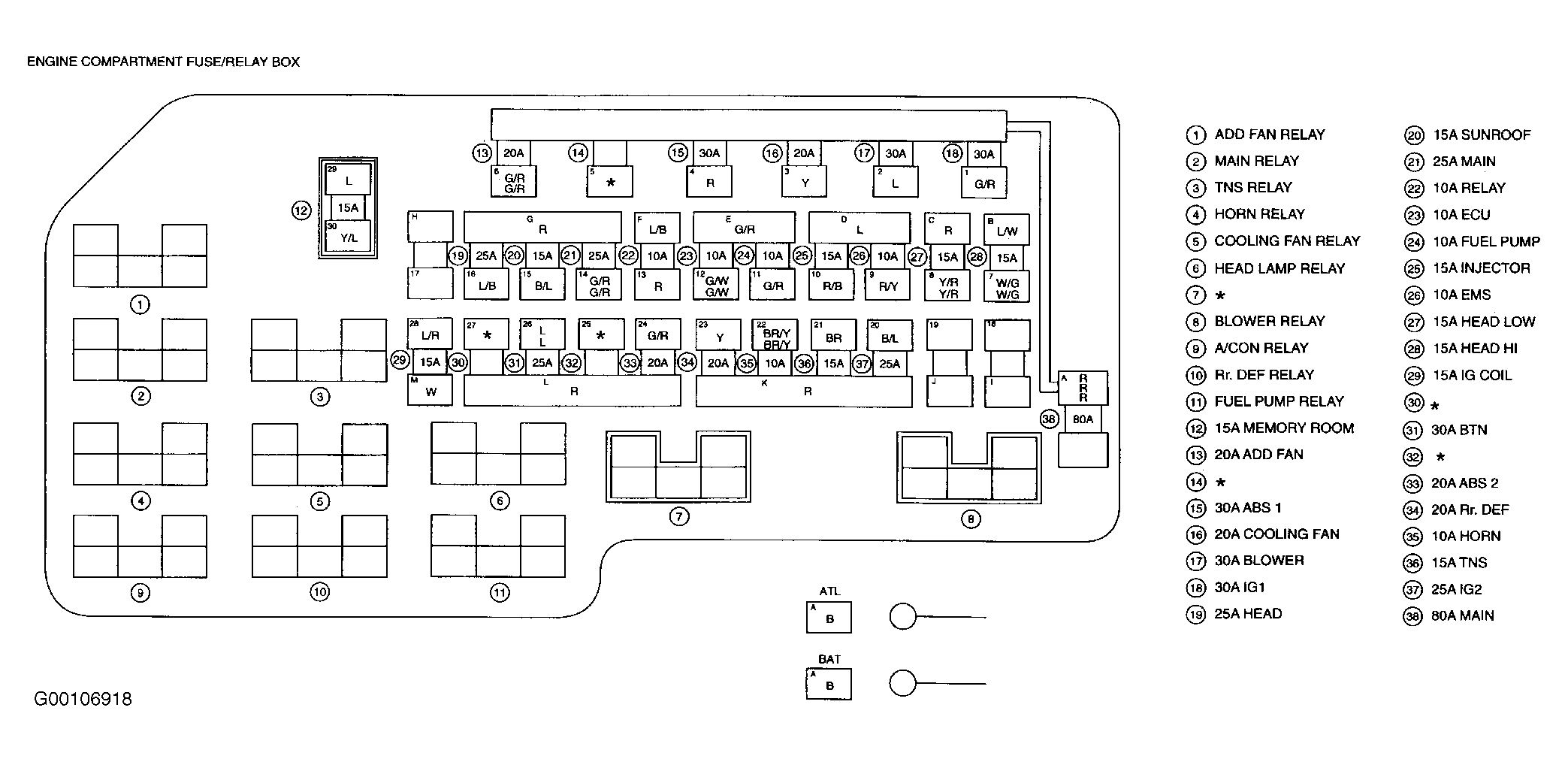

Fig 1: Identifying Engine Compartment Fuse/Relay Box Components
G00106918Courtesy of KIA MOTORS AMERICA, INC.
