Manual Transaxle System: Reassembly

Install the needle roller bearing.

Fig 1: Installing Needle Roller Bearing
Install the 1st speed gear.

Fig 2: Installing 1st Speed Gear

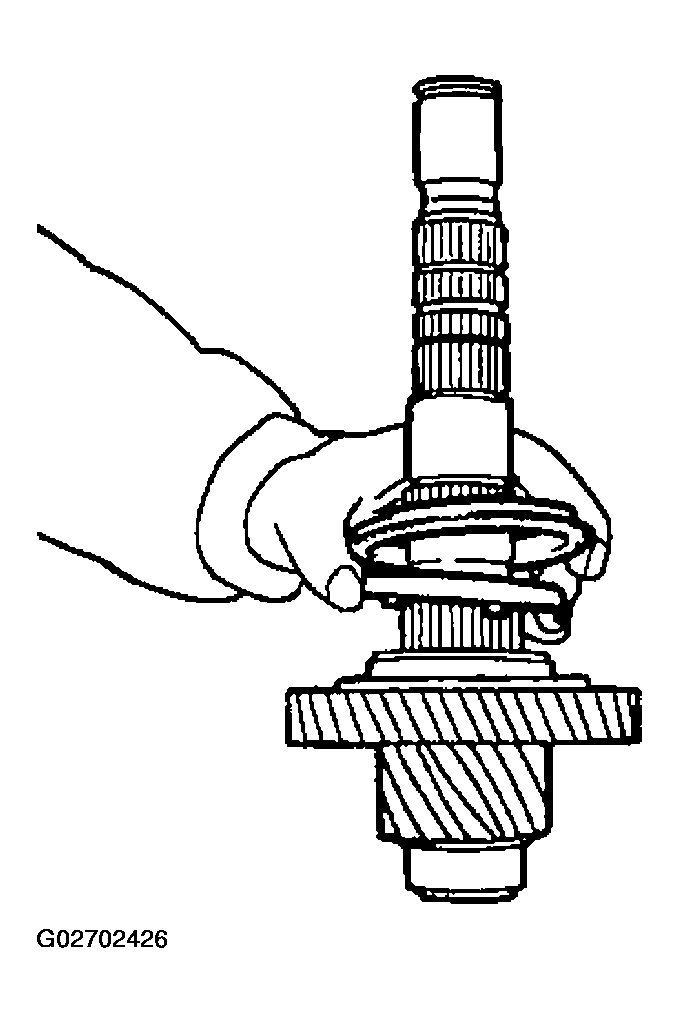

Install the double cone assembly.

Fig 3: Installing 1st Gear Double Cone Assembly
Install the synchronizer sleeve and hub.

Fig 4: Installing Synchronizer Sleeve & Hub
Install the double cone assembly.

Fig 5: Installing 2nd Gear Double Cone Assembly

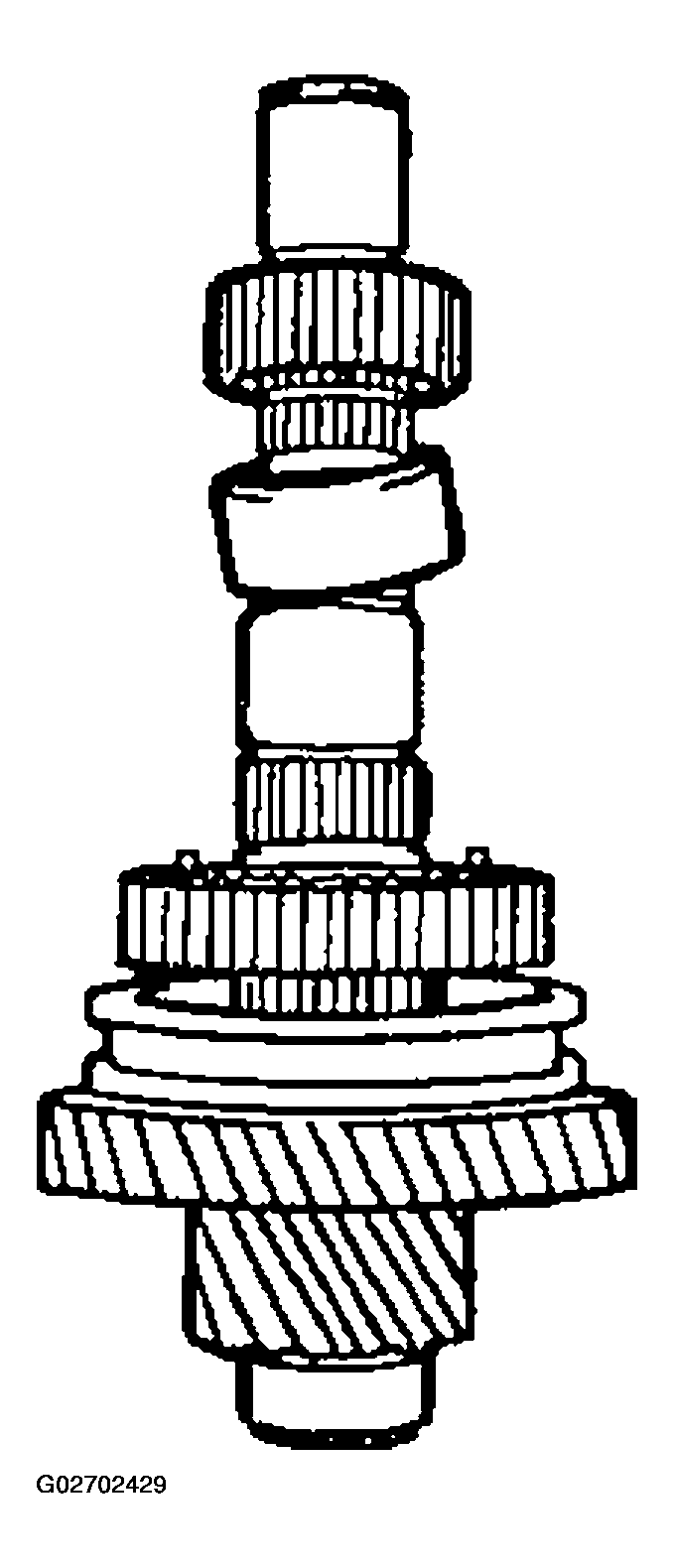

Install the 2nd speed sleeve and the needle roller bearing.

Fig 6: Installing 2nd Speed Sleeve & Needle Roller Bearing

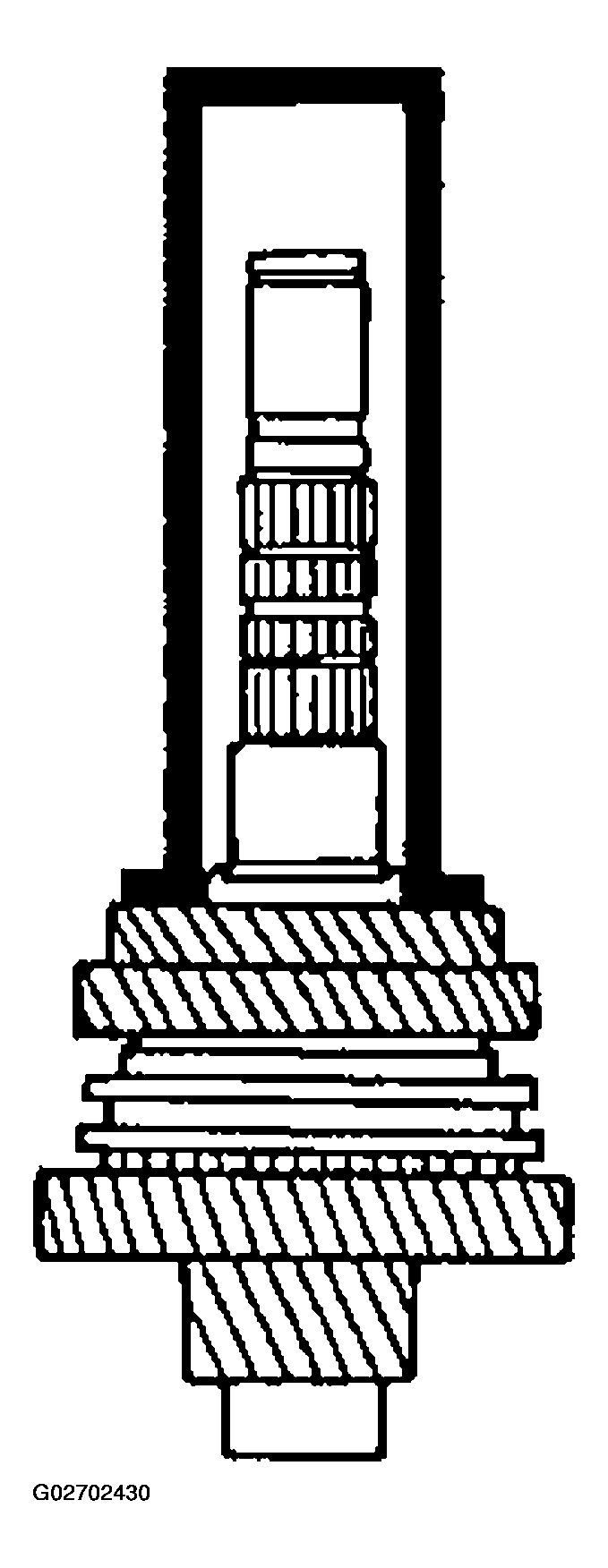

Install the 2nd and 3rd speed gear using the special tool (09432-22000).

Fig 7: Installing 2nd & 3rd Speed Gear
Install the snap ring.

Fig 8: Installing Snap Ring

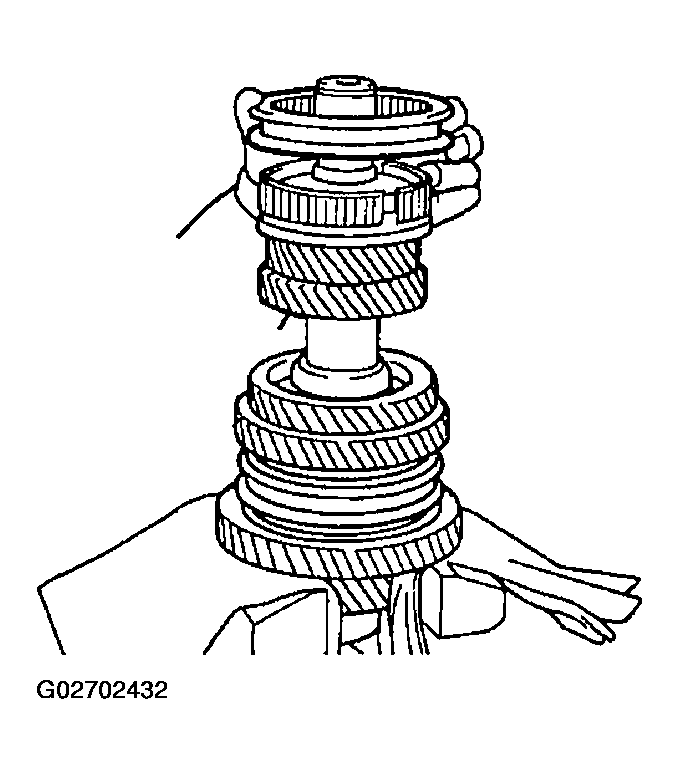

Install the 4th speed gear, the 5th speed gear sleeve, the needle roller bearing, the 5th speed gear, the synchronizer ring (5th), the synchronizer hub and the sleeve (5th & Rev).

Fig 9: Installing 4th Speed Gear, Sleeve, Roller Bearing, 5th Speed Gear & Synchronizer Assembly

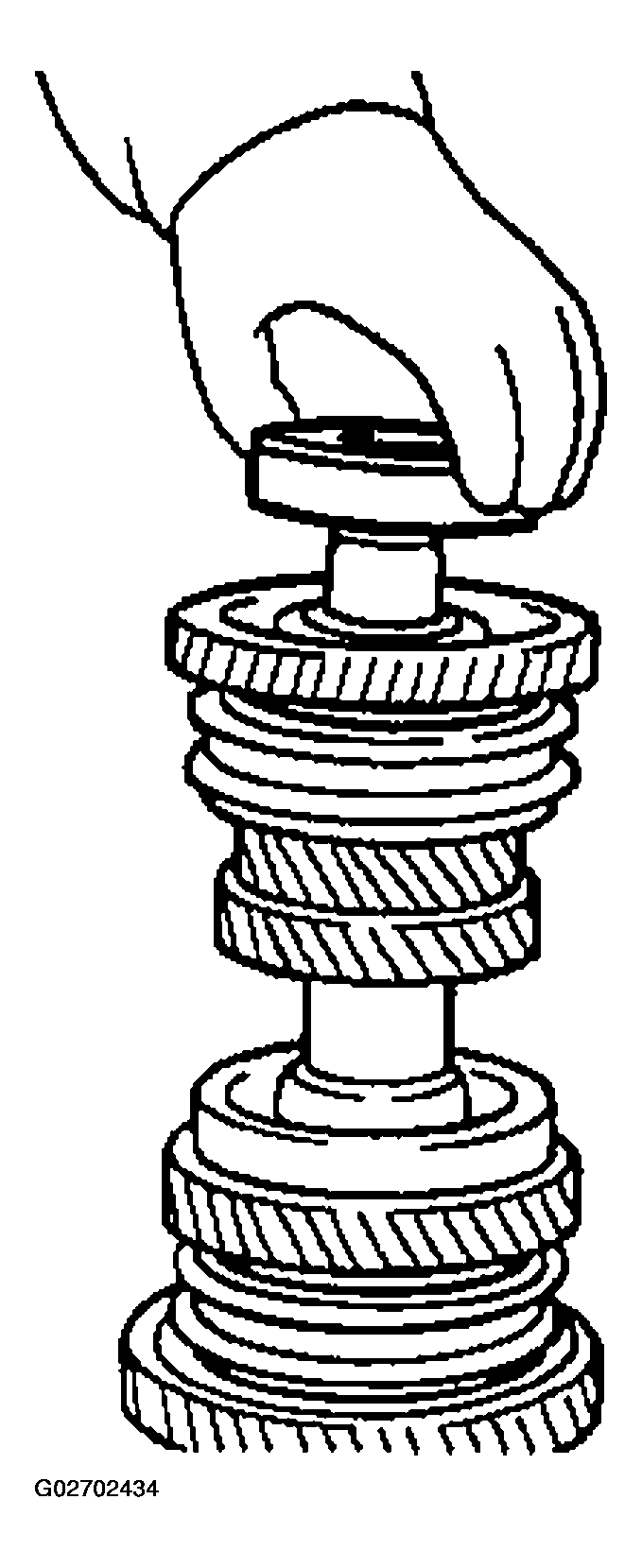

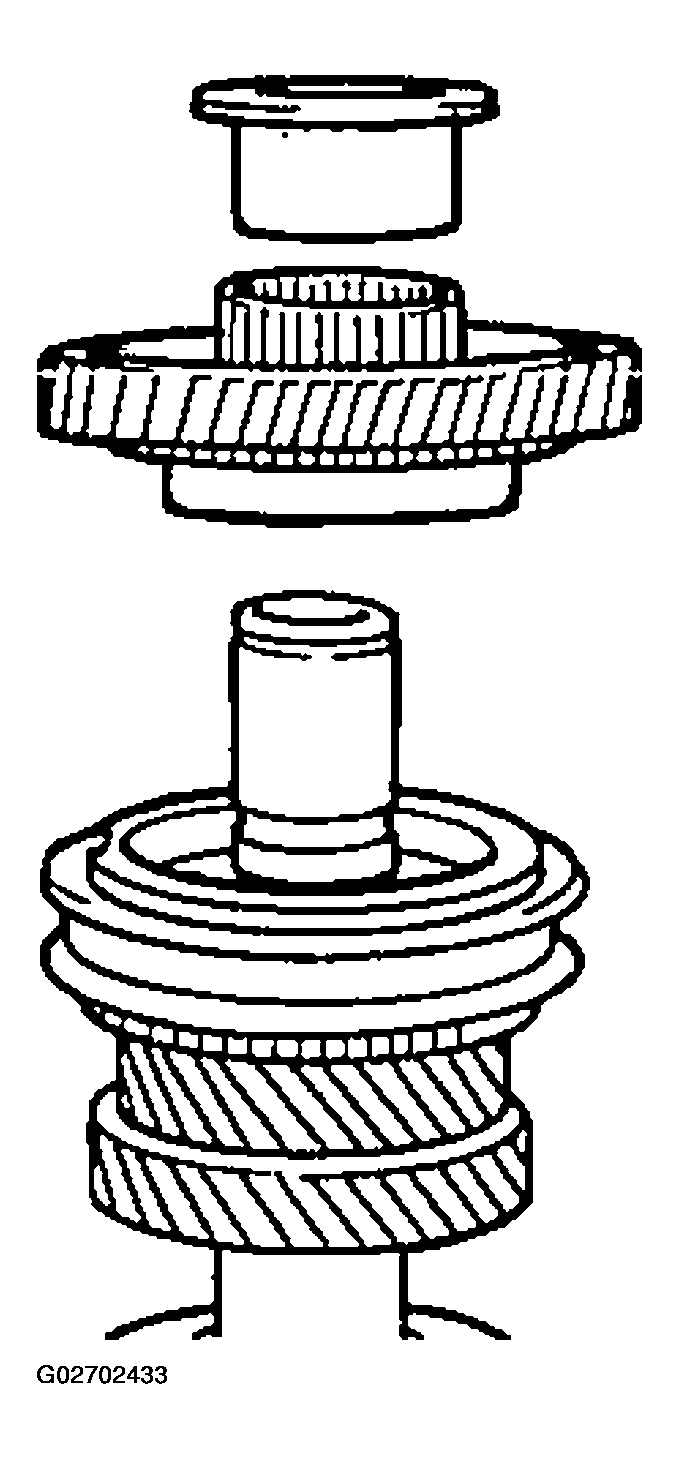

Install the needle roller bearing, reverse gear assembly and reverse driven gear sleeve.

Fig 10: Installing Needle Roller Bearing, Reverse Gear & Driven Gear Sleeve
Install the ball bearing using the special tool (09432-22000), then install snap ring.

Fig 11: Installing Ball Bearing & Snap Ring
