Front Wheel Speed Sensor

  1. Remove the front wheel speed sensor mounting bolt.

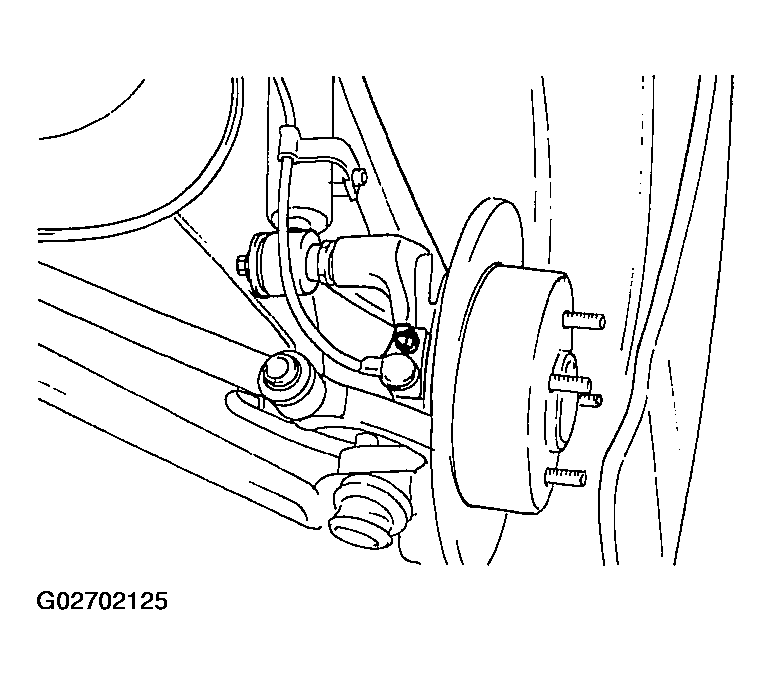

    Fig 1: Locating Mounting Bolt
    G02702125Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector.

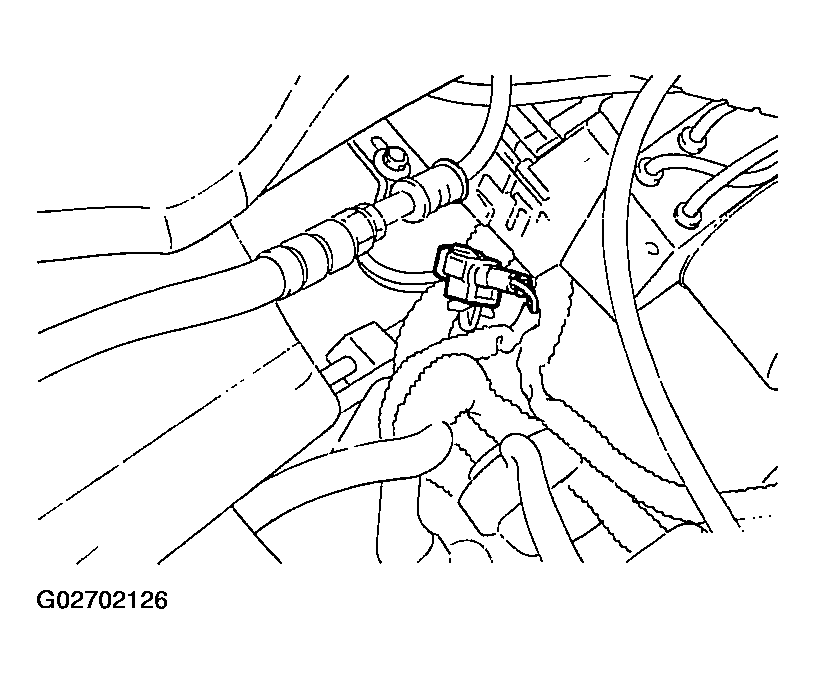

    Fig 2: Removing Front Speed Sensor
    G02702126Courtesy of KIA MOTORS AMERICA, INC.
