Inspection Chart For Diagnostic Trouble Codes

Inspect according to the inspection chart that is appropriate for the malfunction code.

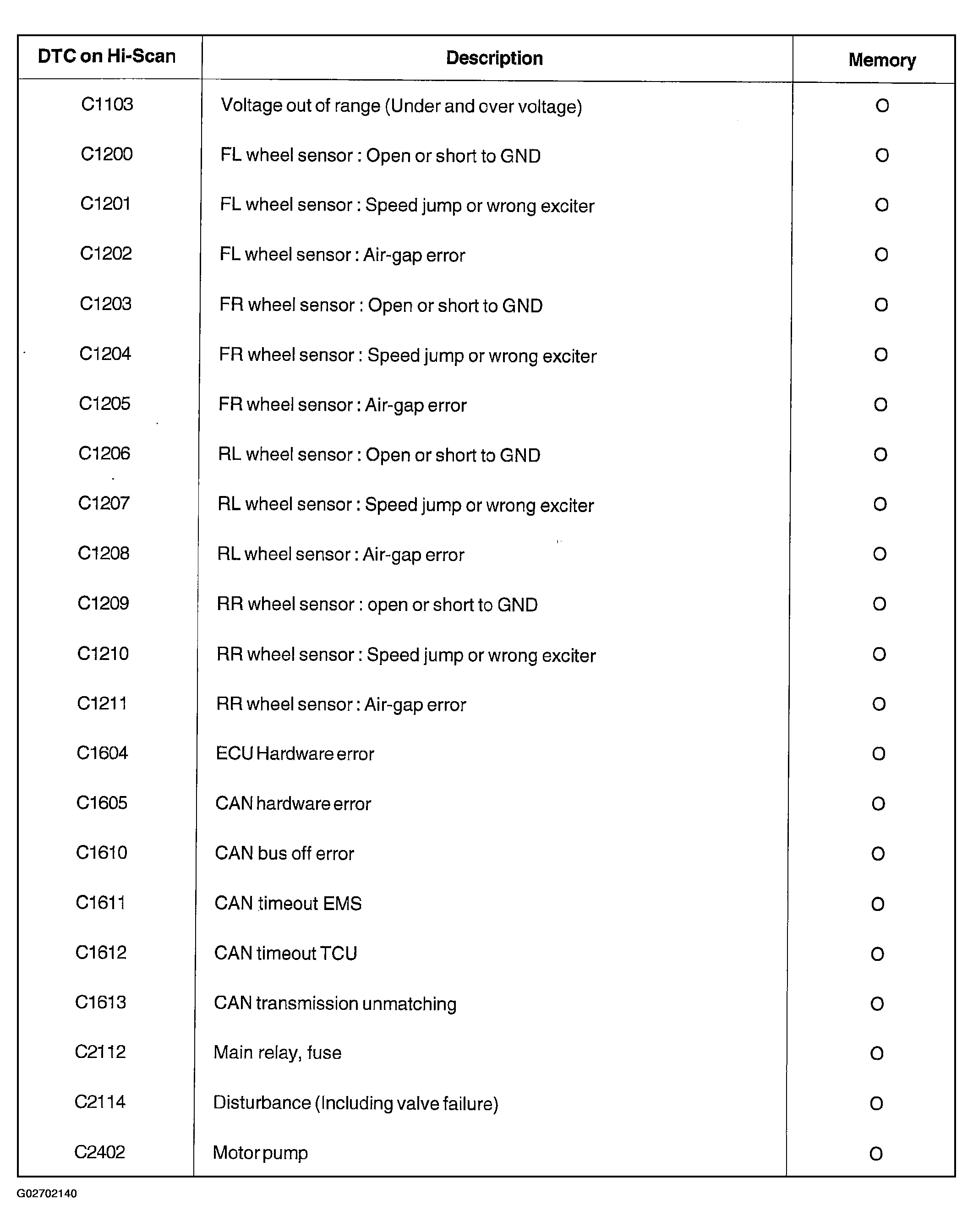

Fig 1: Identifying Diagnostic Trouble Codes
G02702140Courtesy of KIA MOTORS AMERICA, INC.
