Cruise Control Main Switch

  1. Operate the switch, and check for the continuity between the terminals.
  2. If continuity is not as specified, replace the switch.

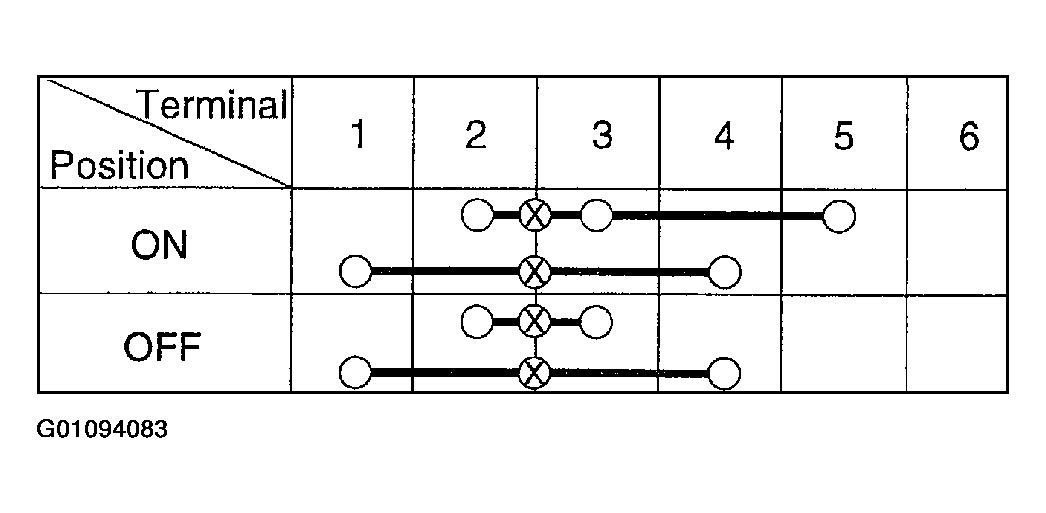

    Fig 1: Checking Cruise Control Main Switch Continuity
    G01094083
    Fig 2: Identifying Cruise Control Main Switch Connector Terminals
    G01094084
