Front Washer Motor

  1. Turn ignition off. Using an ohmmeter, check for continuity between front washer motor connector terminals. See Fig 1. If continuity exists, go to next step. If continuity does not exist, replace front washer motor. See FRONT WASHER MOTOR  under REMOVAL & INSTALLATION.
  2. Using jumper wires, connect a fused jumper wire between positive battery terminal and front washer motor connector Black wire on Sephia and Spectra, or Red/Black wire on Sportage. Connect a second jumper wire between negative battery terminal and front washer motor connector Blue/Light Green wire on Sephia and Spectra, or White wire on Sportage. If front washer motor does not operate, replace front washer motor. See FRONT WASHER MOTOR  under REMOVAL & INSTALLATION.

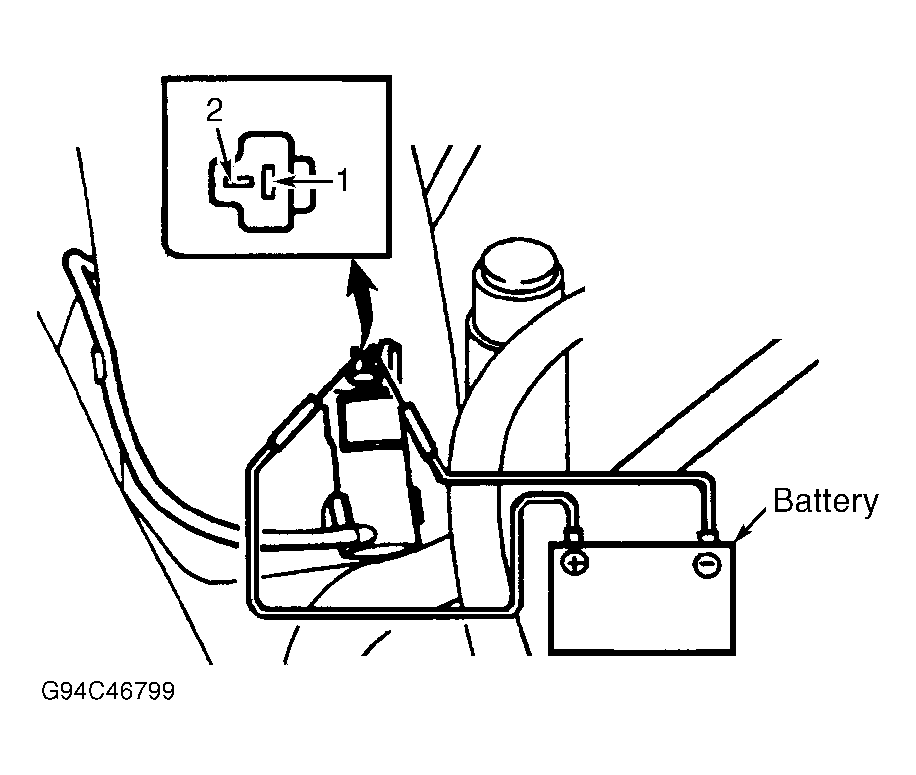

Fig 1: Testing Washer Motor (Typical)
G94C46799Courtesy of KIA MOTORS AMERICA, INC.
