Power Distribution Center
Power Distribution Center
NOTE:
Power distribution center is located on left side engine compartment. See
Fig 1
.
Fig 1: Locating Power Distribution Center
Courtesy of KIA MOTORS AMERICA, INC.

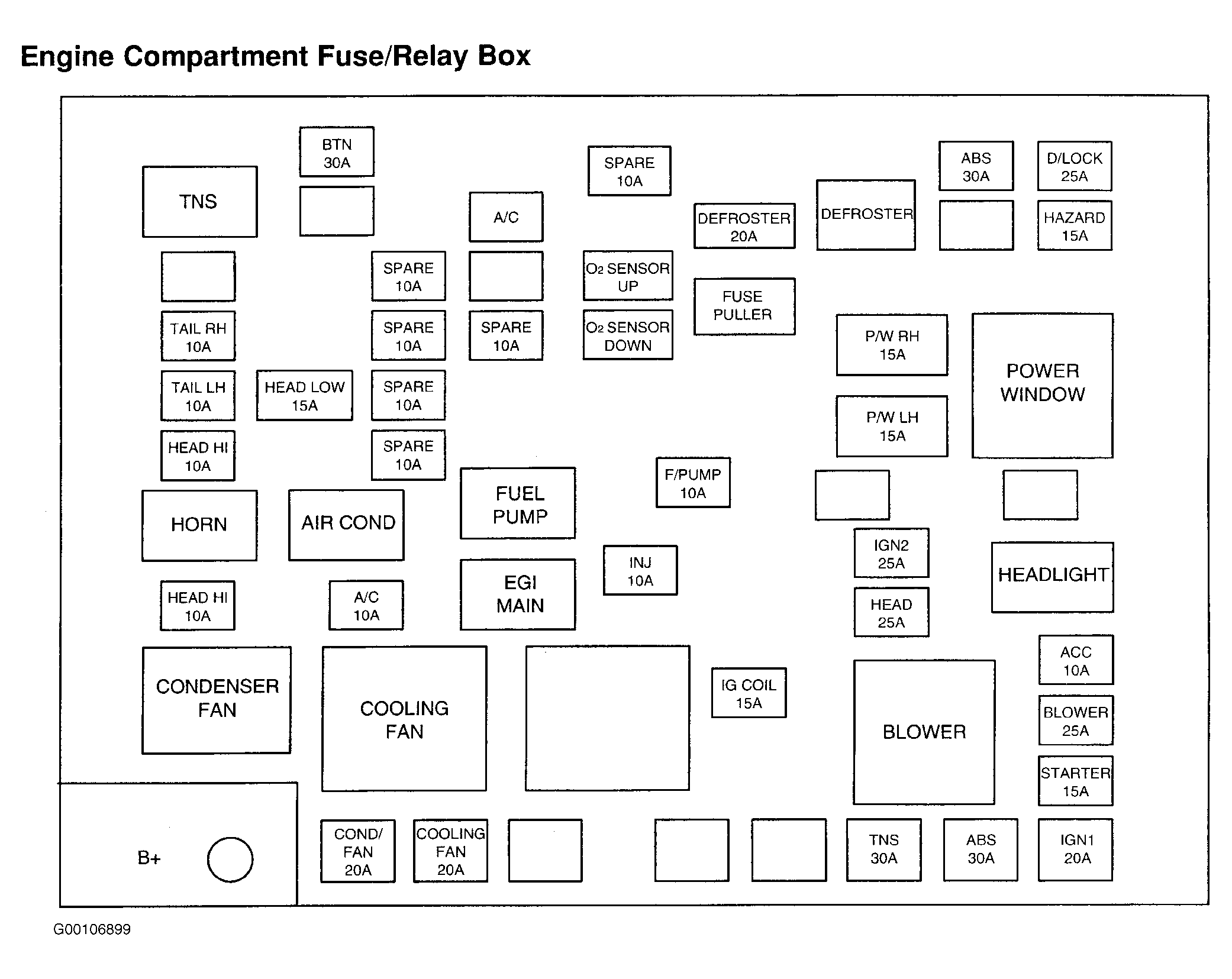

Fig 2: Identifying Power Distribution Center Components
Courtesy of KIA MOTORS AMERICA, INC.

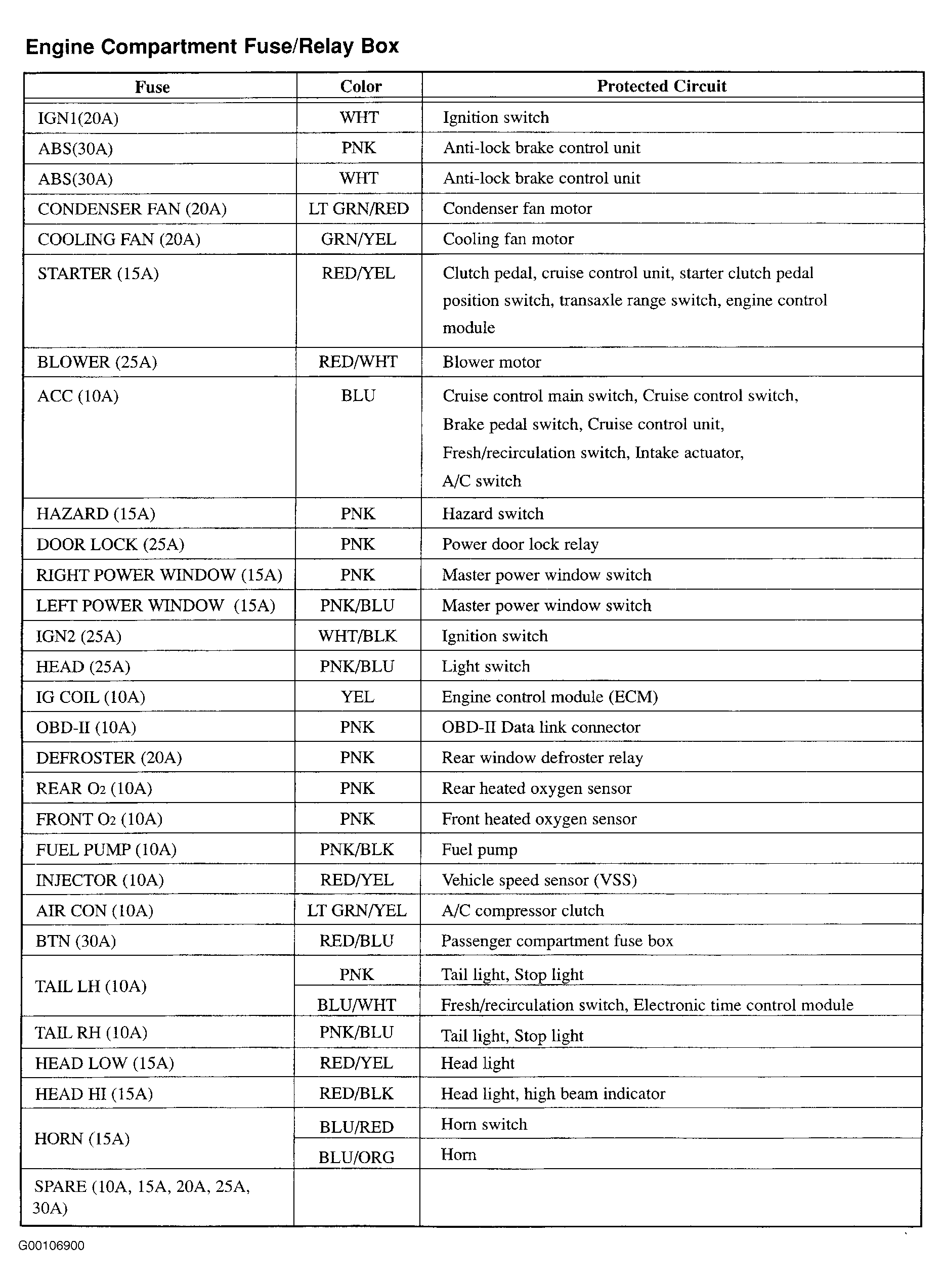

Fig 3: Power Distribution Center Legend
Courtesy of KIA MOTORS AMERICA, INC.
