Identification
>>
Fuse Box
Fuse Box
NOTE:
Fuse box is located at left passenger kick panel.

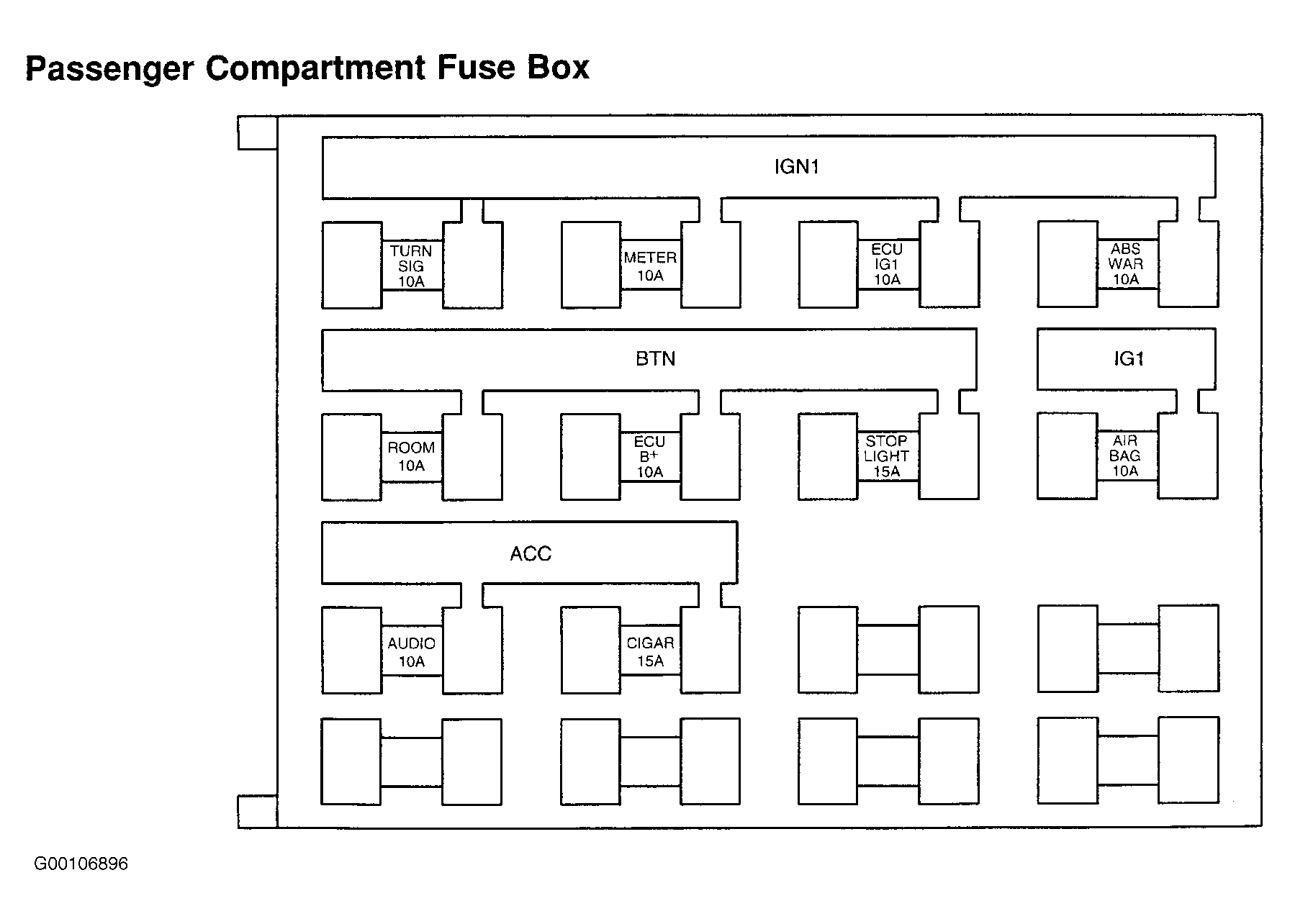

Fig 1: Identifying Fuse Box Components
Courtesy of KIA MOTORS AMERICA, INC.

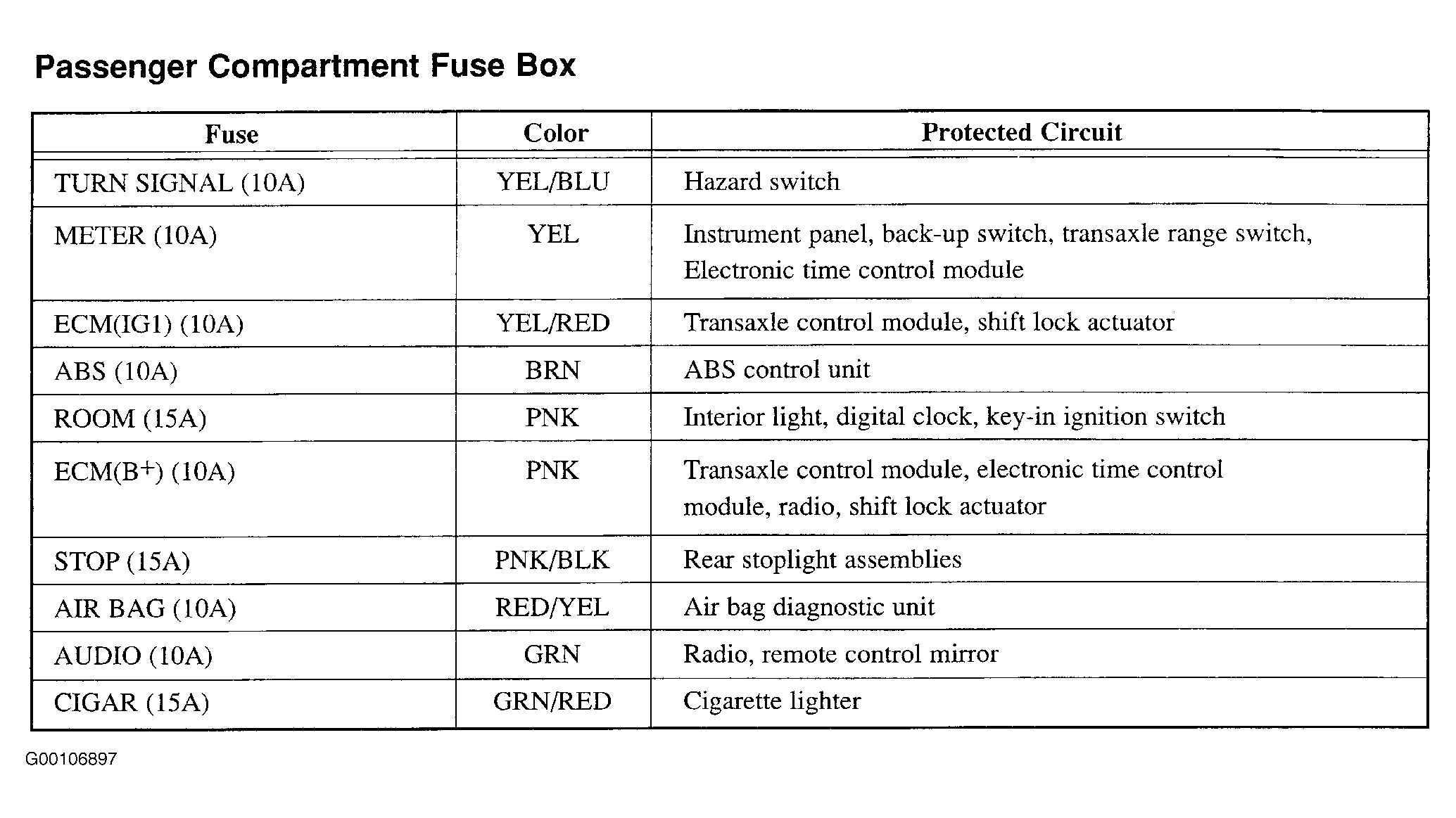

Fig 2: Fuse Box Legend
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
