Combination Switch: Sephia

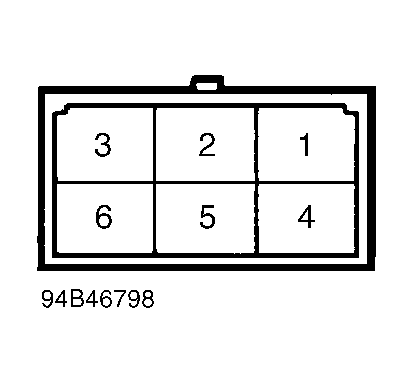

Disconnect wiper/washer switch 6-pin connector. With wiper/washer switch in specified position, check for continuity between wiper/washer switch connector terminals. See FRONT WIPER/WASHER SWITCH TEST (SEPHIA) table. See Fig 1. If continuity does not exist between specified terminals, replace combination switch.
FRONT WIPER/WASHER SWITCH TEST (SEPHIA)
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Washer Switch (On) | 1 & 3 | |
| Wiper Switch | ||
| OFF | 4 & 5 | |
| LO | 3 & 4 | |
| HI | 3 & 6 | |
| INT | 1 & 2; 4 & 5 | |
