Power Mirror Switch
NOTE:
On Sephia, power mirror switch may also be referred to as the power mirror controller.

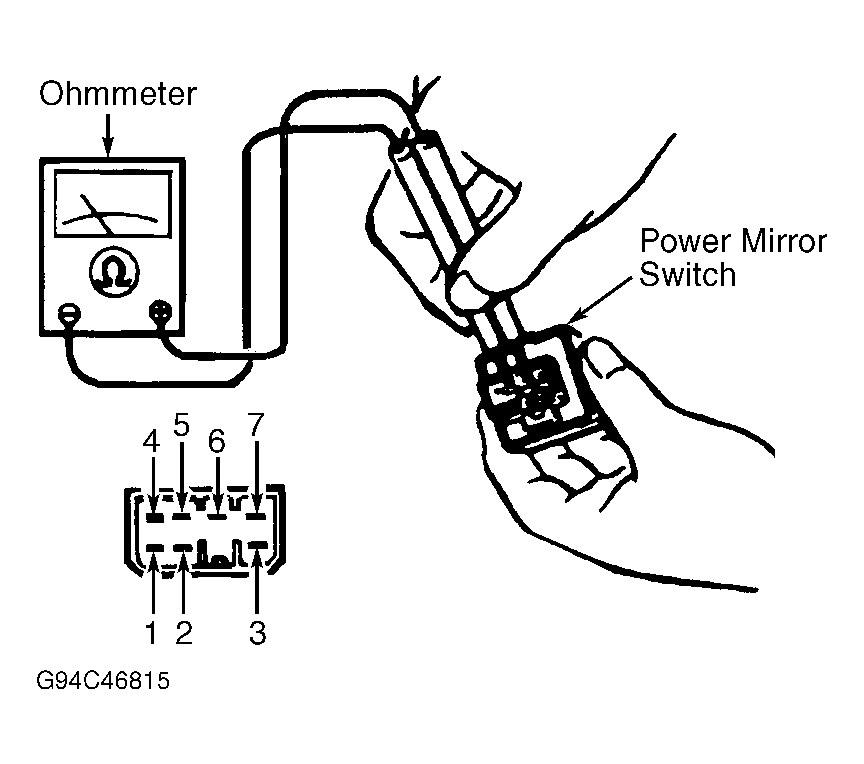

Power mirror switch is located left of steering column in dash panel. Disconnect power mirror switch connector. With power mirror switch in specified position, ensure continuity exists between specified terminals. See appropriate POWER MIRROR SWITCH TEST table. See Fig 1 . Replace switch if continuity is not as specified.
POWER MIRROR SWITCH TEST (SEPHIA)
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Driver Switch | ||
| Up | 3 & 4; 2 & 6 | |
| Down | 2 & 4; 3 & 6 | |
| Left | 3 & 6; 2 & 7 | |
| Right | 2 & 6; 3 & 7 | |
| Passenger Switch | ||
| Up | 2 & 5; 3 & 4 | |
| Down | 2 & 4; 3 & 5 | |
| Left | 1 & 2; 3 & 5 | |
| Right | 1 & 3; 2 & 5 | |
POWER MIRROR SWITCH TEST (SPORTAGE)
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Driver Switch | ||
| Up | 3 & 4; 2 & 6 | |
| Down | 2 & 4; 3 & 6 | |
| Left | 2 & 6; 3 & 7 | |
| Right | 2 & 7; 3 & 6 | |
| Passenger Switch | ||
| Up | 3 & 6; 2 & 6 | |
| Down | 2 & 5; 3 & 6 | |
| Left | 1 & 3; 2 & 6 | |
| Right | 1 & 2; 3 & 6 | |
