Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Air Bag Diagnostic Unit | Behind front of center console. |
| Anti-Lock Brake Control Unit | Beneath passenger's seat. |
| Cruise Control Unit | Below right side of dash, at kick panel. See Figure . |
| Electronic Time & Alarm Control Module (1.6L Only) | Below left side of dash, above fuse panel. See Figure . |
| Engine Control Module (ECM) (1.6L) | Below center of dash, at front of center console. See Figure . |
| Flasher Module | Below left side of dash, on bracket above fuse box. See Figure . |

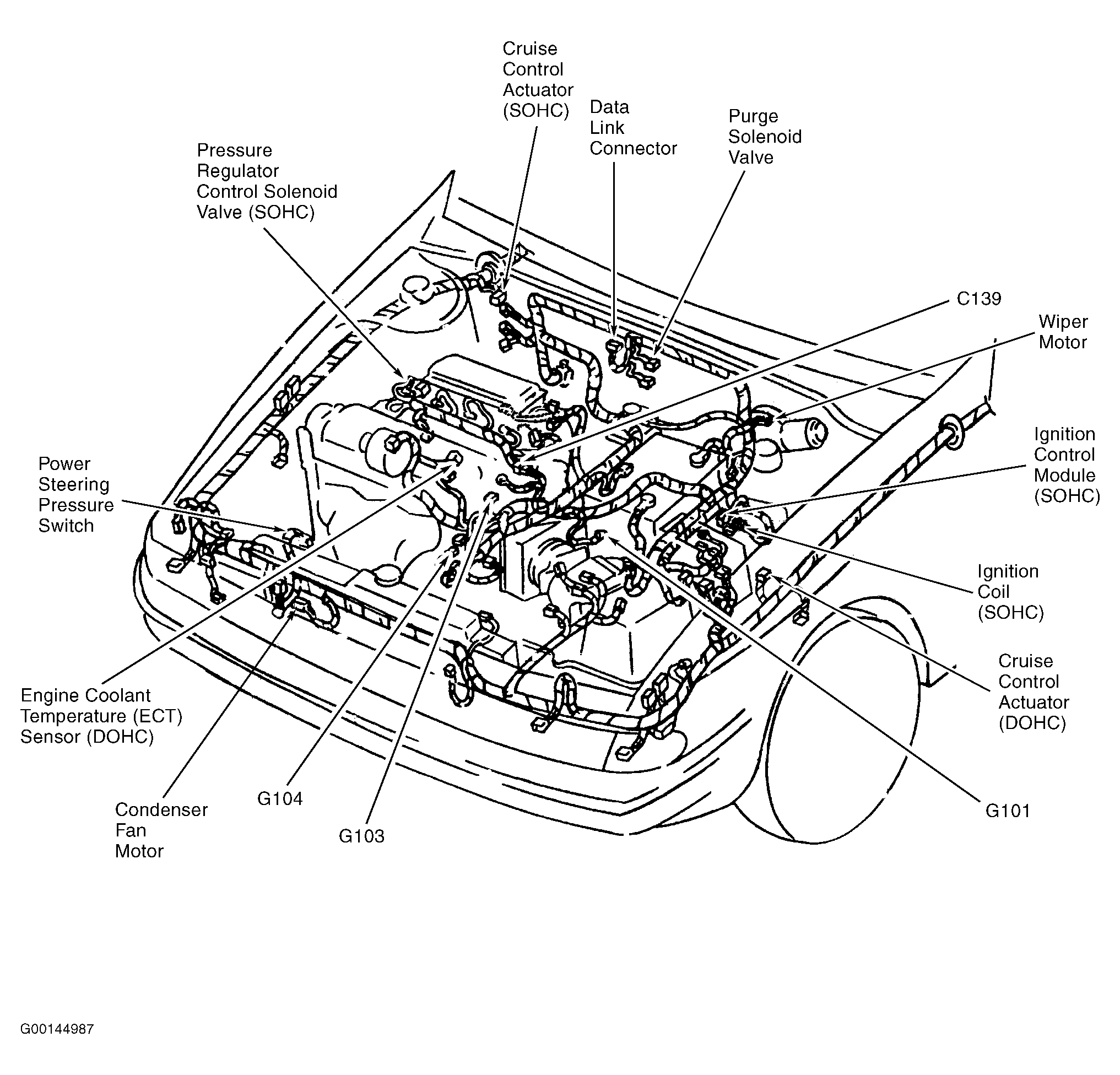

| Ignition Control Module (SOHC) | On left side of engine compartment, below ignition coil. See Figure . |
| Ignition Control Module (ICM) (DOHC) | Inside distributor. |
| Powertrain Control Module (PCM) (1.8L) | Below center of dash, forward of center console. See Figure . |
| Transaxle Control Module (1.6L) | Below left side of dash, above fuse box. See Figure . |
