Camber & Caster Adjustments

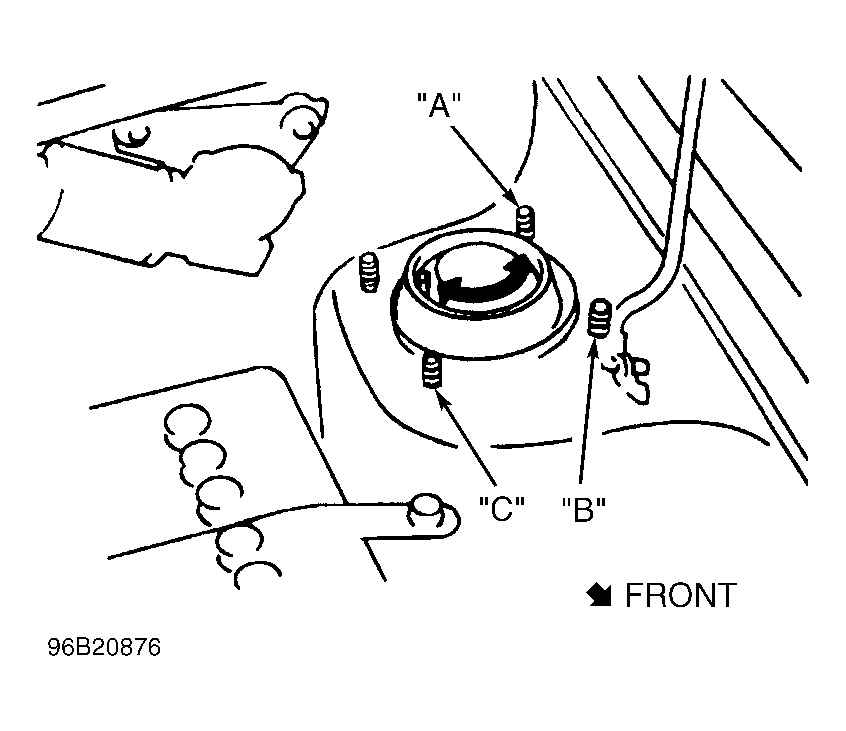

Measure front camber and caster. If adjustment is necessary, raise and support vehicle. Reference mark position of strut mounting block. Remove upper strut mounting block retaining nuts. Push mounting block downward, turning to desired position (A, B or C). See Fig 1 . See CAMBER & CASTER ADJUSTMENT table. Reinstall and ti ghten nuts to specification. See TORQUE SPECIFICATIONS .
CAMBER & CASTER ADJUSTMENT
| Alternate Position | Change Camber Angle | Change Caster Angle |
|---|---|---|
| A | 0 | 7/16" (11 mm) |
| B | 17/32" (13.5 mm) | 7/16" (11 mm) |
| C | 17/32" (13.5 mm) | 0 |
