Pin Voltage Charts

NOTE: Unless stated otherwise in testing procedures, perform all voltage tests with a Digital Volt-Ohmmeter (DVOM) with minimum 10-megohm input impedance. Voltage readings may vary slightly due to battery condition or charging rate.

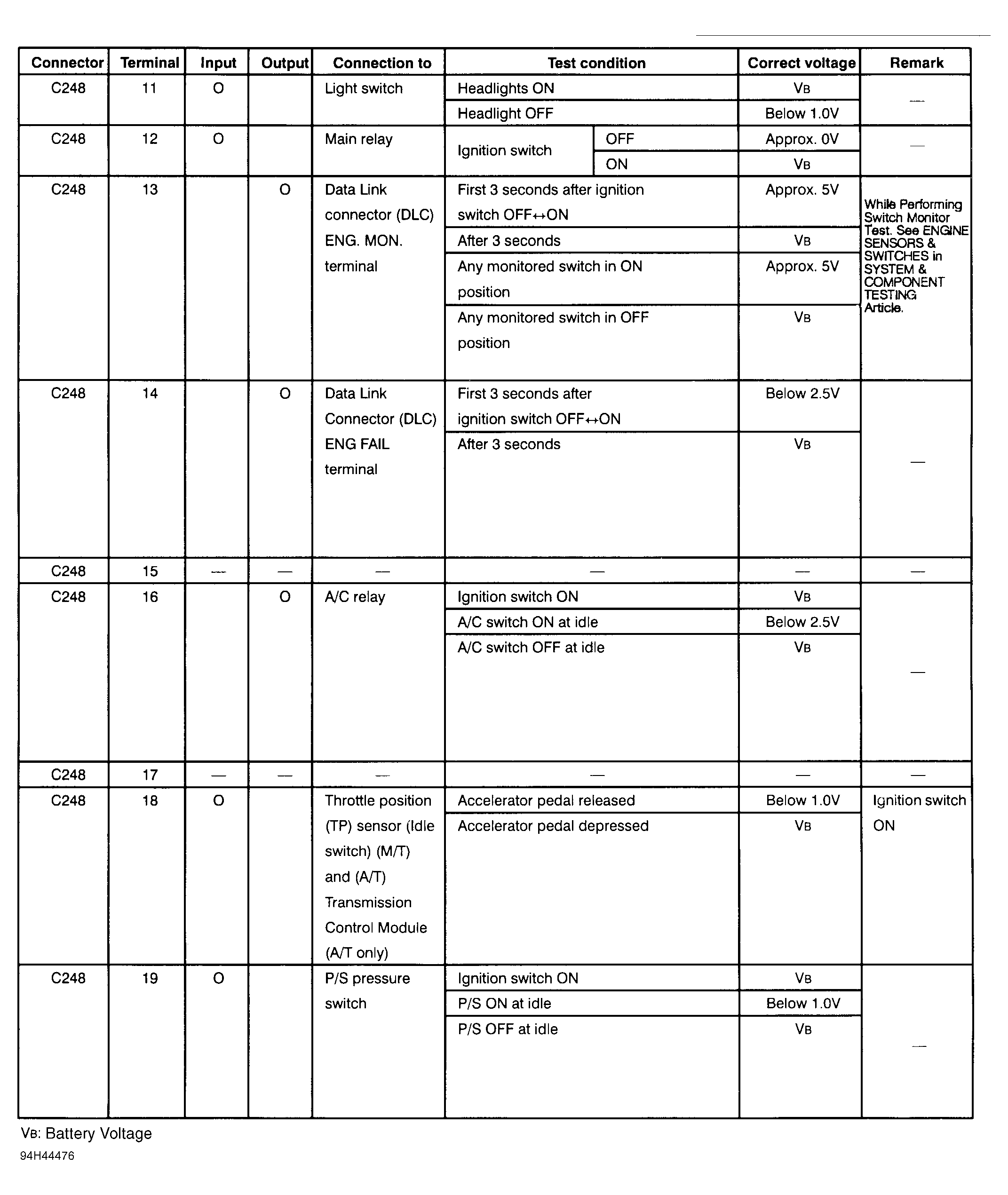

Fig 1: ECM Pin Voltage Chart (1 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

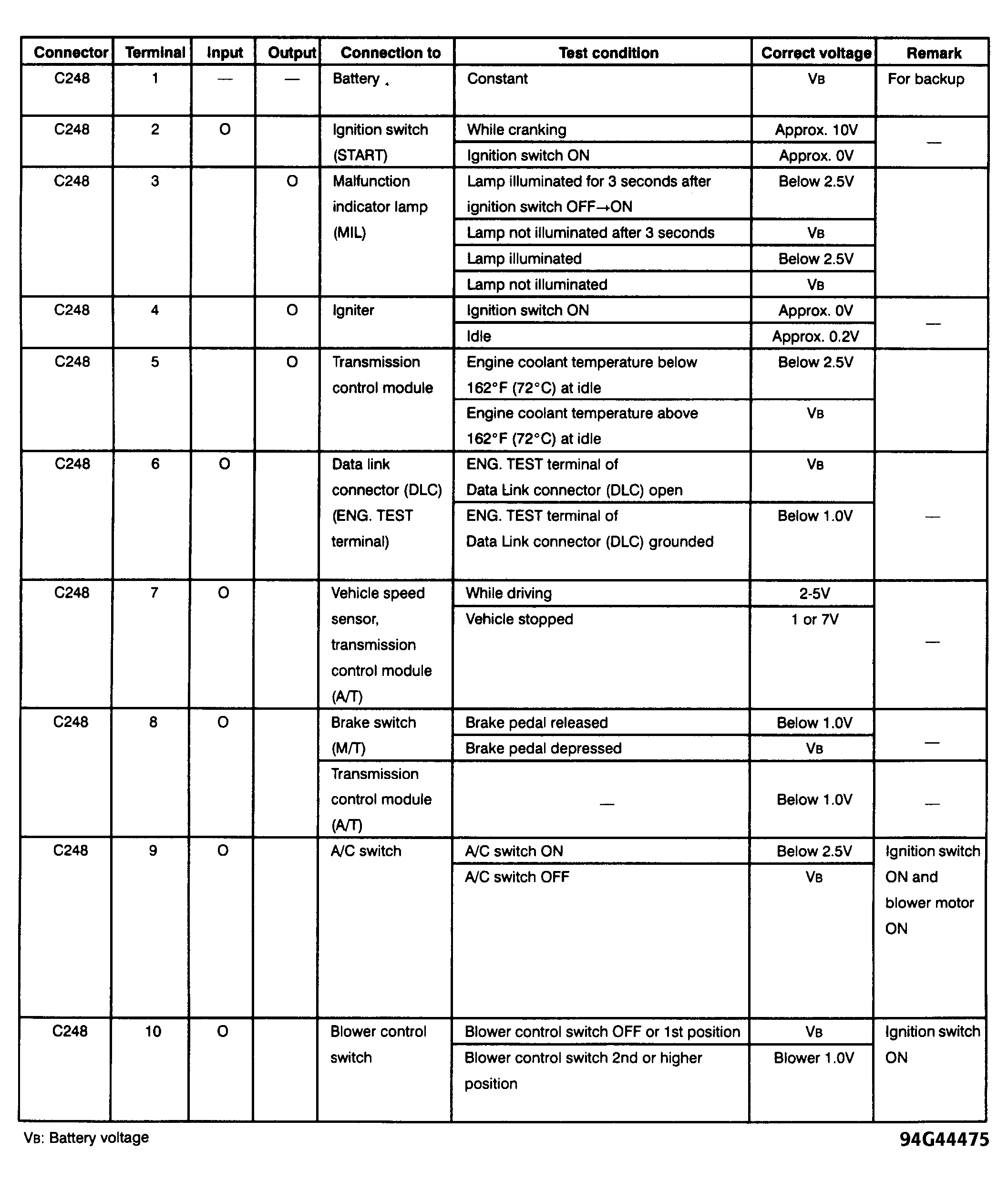

Fig 2: ECM Pin Voltage Chart (2 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

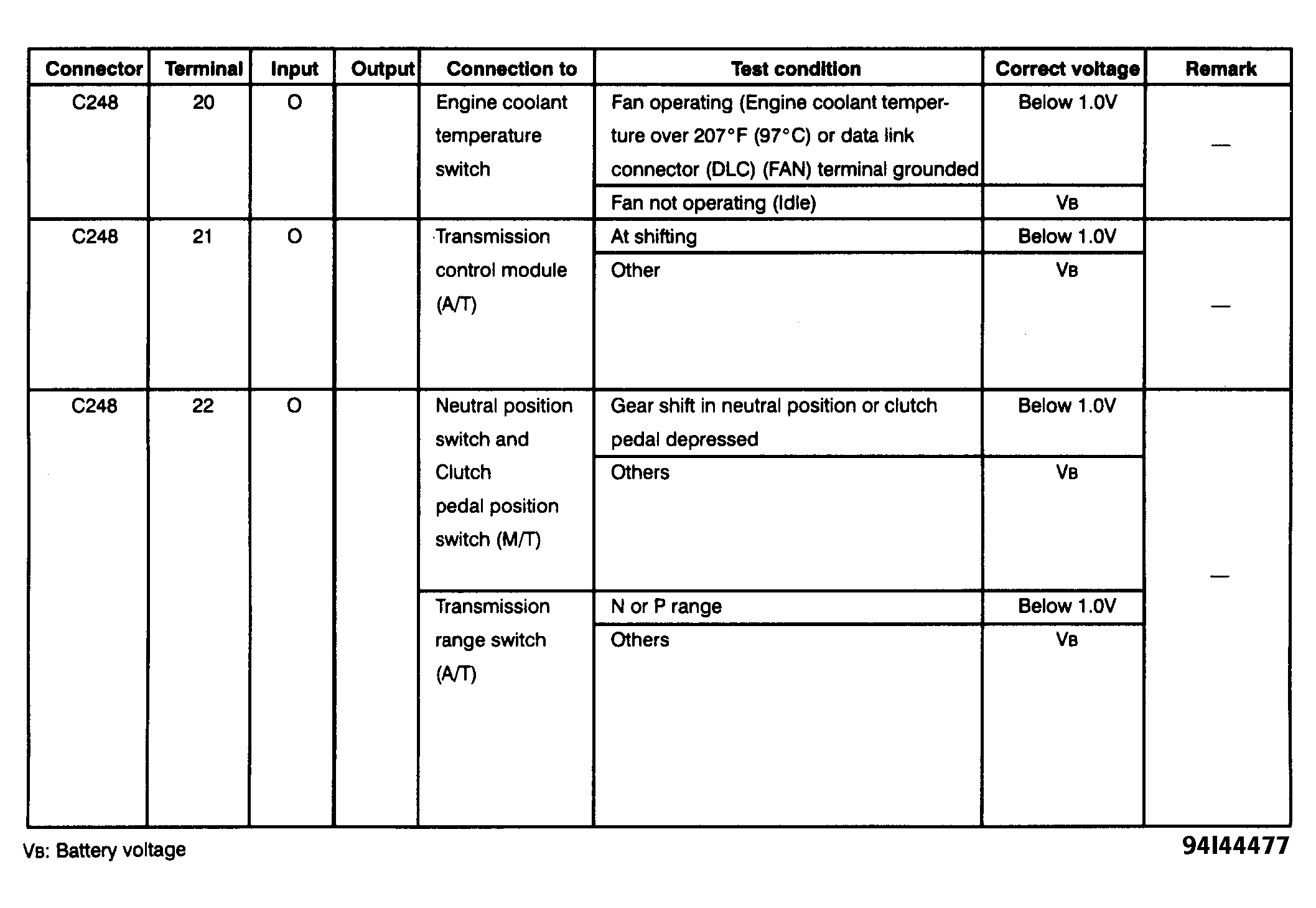

Fig 3: ECM Pin Voltage Chart (3 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

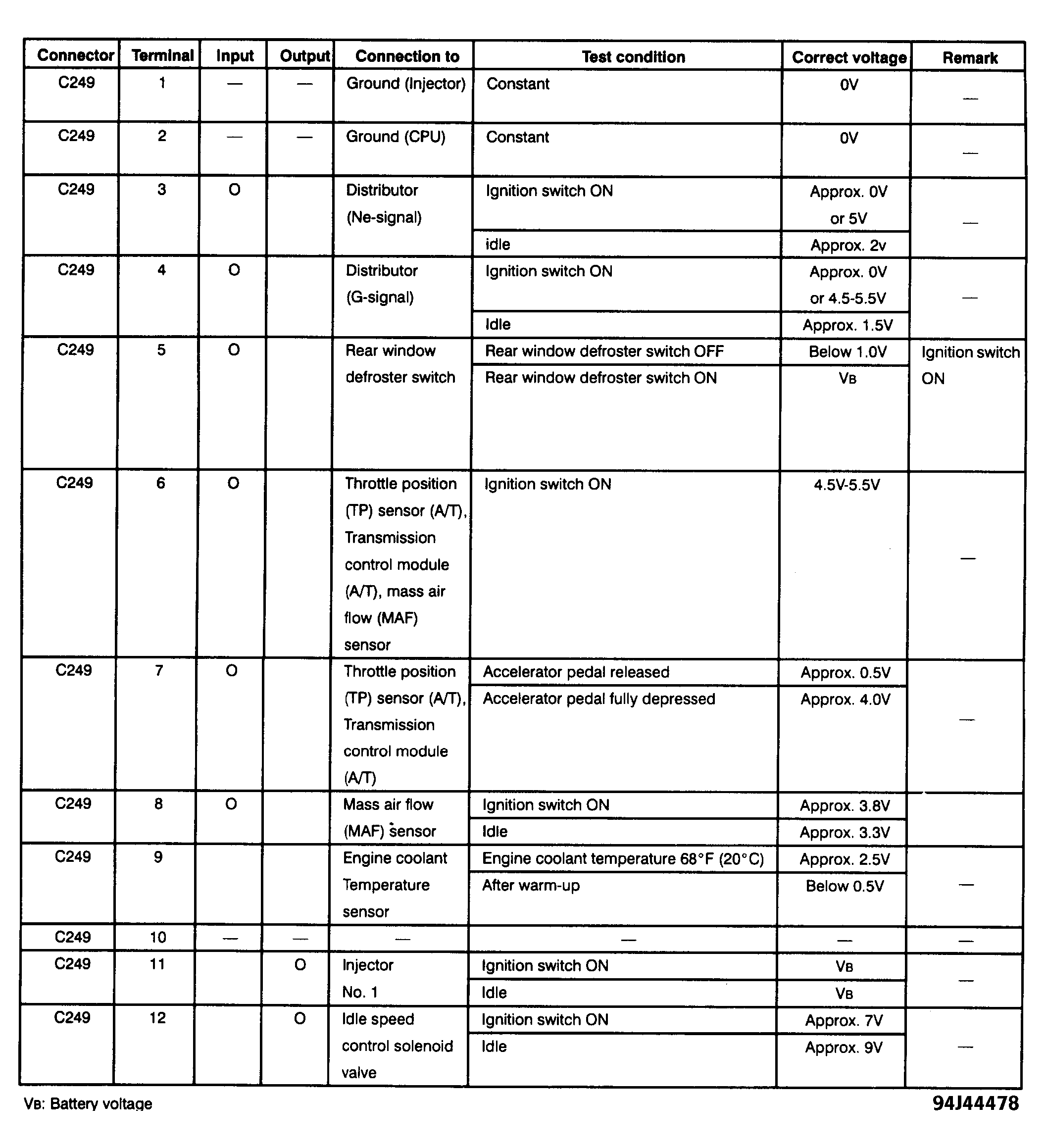

Fig 4: ECM Pin Voltage Chart (4 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: ECM Pin Voltage Chart (5 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.
