Speedometer Sensor Test

  1. Disconnect negative battery cable. Disconnect speedometer sensor connector. Rotate front wheels and measure voltage between sensor terminals.
  2. If voltmeter does move, repair wiring harness between instrument cluster and speedometer sensor. See WIRING DIAGRAMS  .

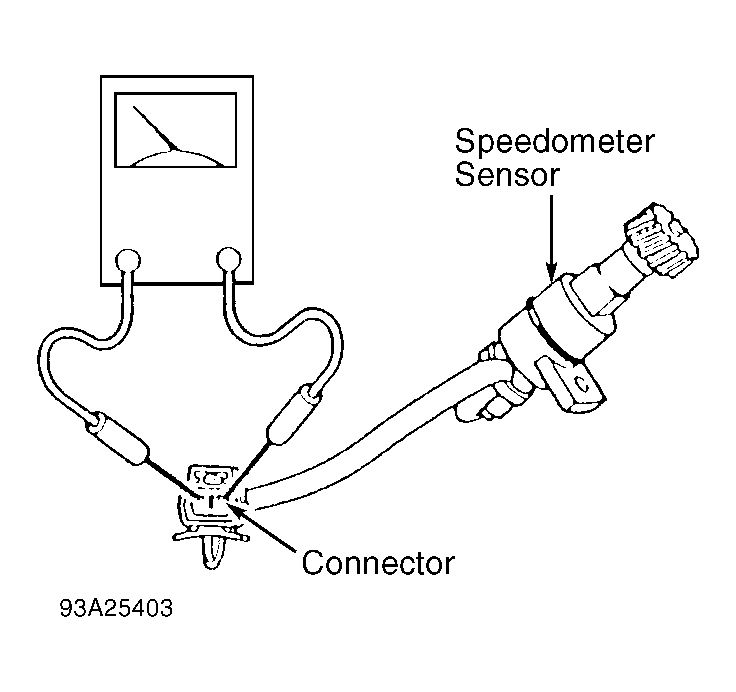

Fig 1: Checking Speedometer Sensor
G93A25403Courtesy of MAZDA MOTORS CORP.
