Torque Specifications - EGR System
 Courtesy of CHRYSLER GROUP, LLC
|

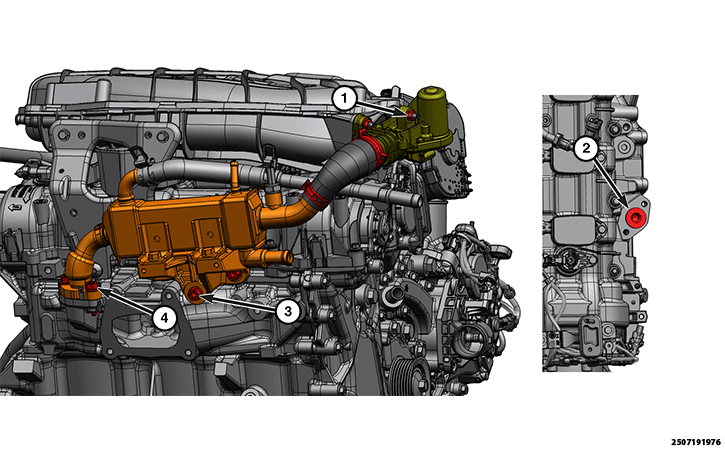

TORQUE SPECIFICATIONS - EGR SYSTEM
| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENTS |
| 1 |
EGR Valve Nuts |
8 N. m (71 In. Lbs.) |
- |
| 2 |
EGR Blocker Plug to Cylinder Head |
50 N. m (37 Ft. Lbs.) |
- |
| 3 |
EGR Cooler Bolts |
23 N. m (17 Ft. Lbs.) |
- |
| 4 |
EGR to Exhaust Manifold Bolts |
37 N. m (27 Ft. Lbs.) |
- |
