Torque Specifications - Shock Absorbers And Springs

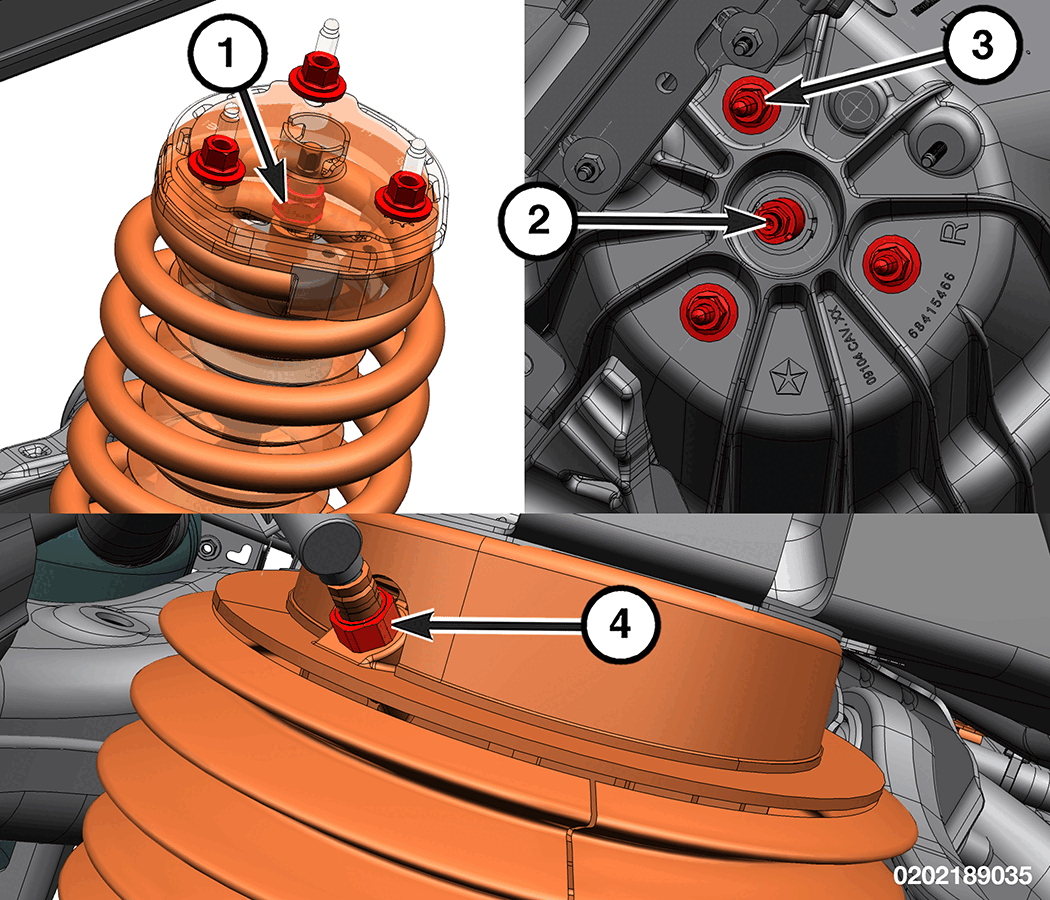

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Strut Rod Nut | 112 N. m (83 Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 2 | Front Air Spring Line Nut | 6 N. m (53 In. Lbs.) | - |
| 3 | Shock Absorber Upper Nut | 35 N. m (26 Ft. Lbs.) | - |
| 4 | Rear Air Spring Line Nut | 3.5 N. m (31 In. Lbs.) | - |
