Left Quarter PDC - PHEV: Notes

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to 2.0L, 12 VOLT BATTERY DISCONNECT .
2. Using a trim stick or equivalent, remove the left quarter trim panel access cover.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Access Cover

3. Remove the electrical terminal nut and positive cable from the PDC.

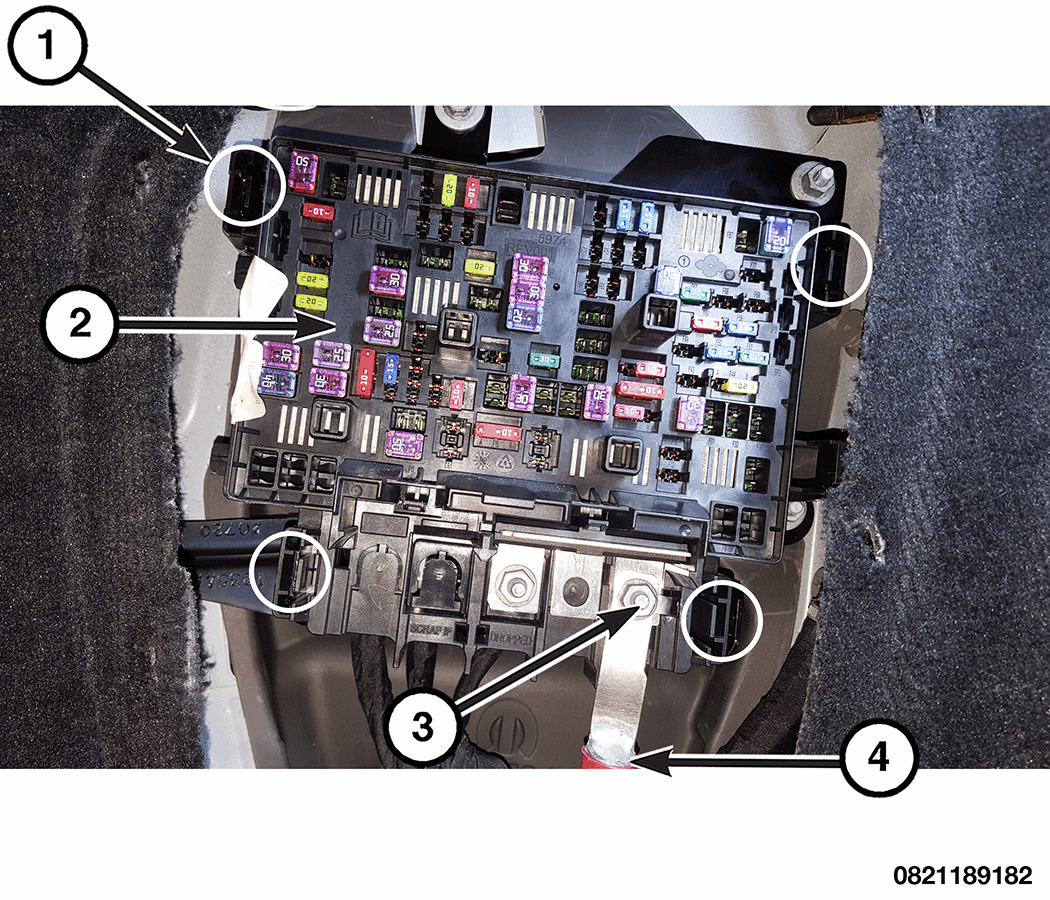

   Courtesy of CHRYSLER GROUP, LLC

   1 - Retaining Tabs

   2 - Power Distribution Center (PDC)

   3 - Electrical Terminal Nut

   4 - Positive Cable

4. Release the retaining tabs securing the PDC to the PDC bracket.
5. Pull the PDC out from the PDC bracket and disconnect the wire harness connectors. Remove the PDC from the vehicle.

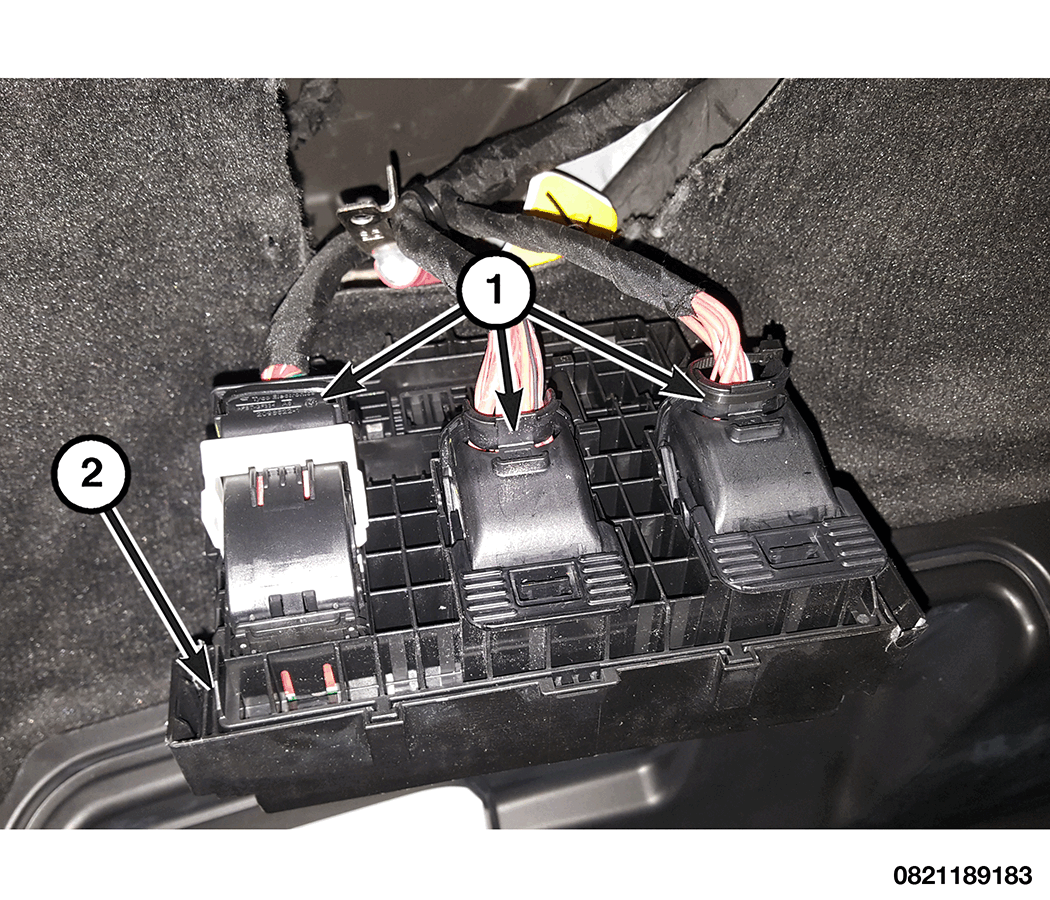

   Courtesy of CHRYSLER GROUP, LLC

   1 - Wire Harness Connectors

   2 - Power Distribution Center (PDC)

6. If necessary, remove the fasteners from the PDC bracket and remove it from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
