Removal And Installation: Clevis: Notes

REMOVAL

NOTE: The air suspension system can be disabled and enabled by using the Display Screen Module (DSM) in the vehicle under Tire Jack Mode, which is the preferred method. If the disable level control routine in the diagnostic scan tool is used, it will only disable the level control (automatic and manual) for that ignition cycle. The air suspension system can also be enabled by driving the vehicle above 19 km/h (12 mph). The air suspension must be disabled prior to lifting the vehicle or performing any work.
  1. If equipped with air suspension, disable the air suspension system. Refer to DISABLING AND ENABLING AIR SUSPENSION .
  2. Disconnect and isolate the negative battery cable(s). Refer to 2.0L, 12 VOLT BATTERY DISCONNECT or 3.6L, BATTERY DISCONNECT AND CONNECT .
  3. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  4. Remove the tire and wheel assembly. Refer to TIRES AND WHEELS, REMOVAL AND INSTALLATION .
  5. Disconnect the stabilizer bar link from the clevis bracket. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .
  6. Remove the front brake hose bracket bolt.

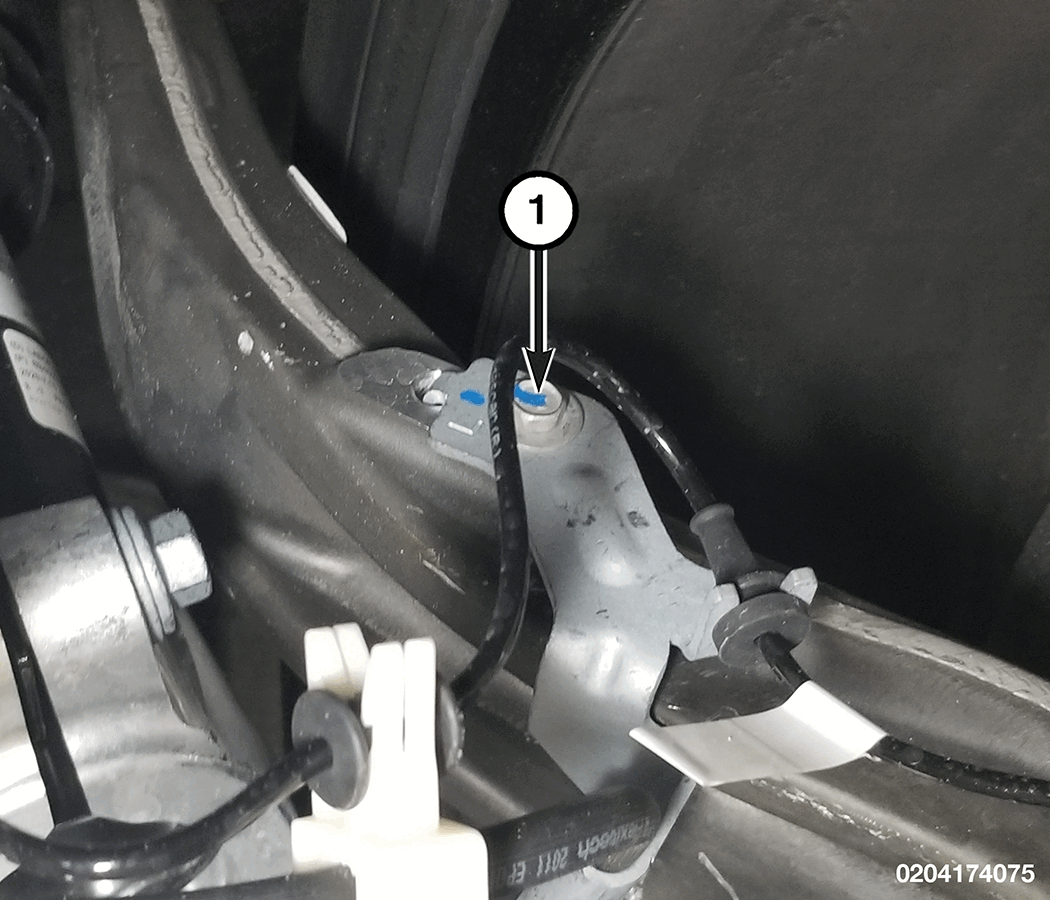

    GC0200821Courtesy of CHRYSLER GROUP, LLC
    1 - Front Brake Hose Bracket Bolt
  7. Disconnect the active damping sensor wire harness connector.
    GC0201905Courtesy of CHRYSLER GROUP, LLC
    1 - Active Damper Sensor Bolt
    2 - Wire Harness Connector
  8. Remove the wheel speed sensor bolt.

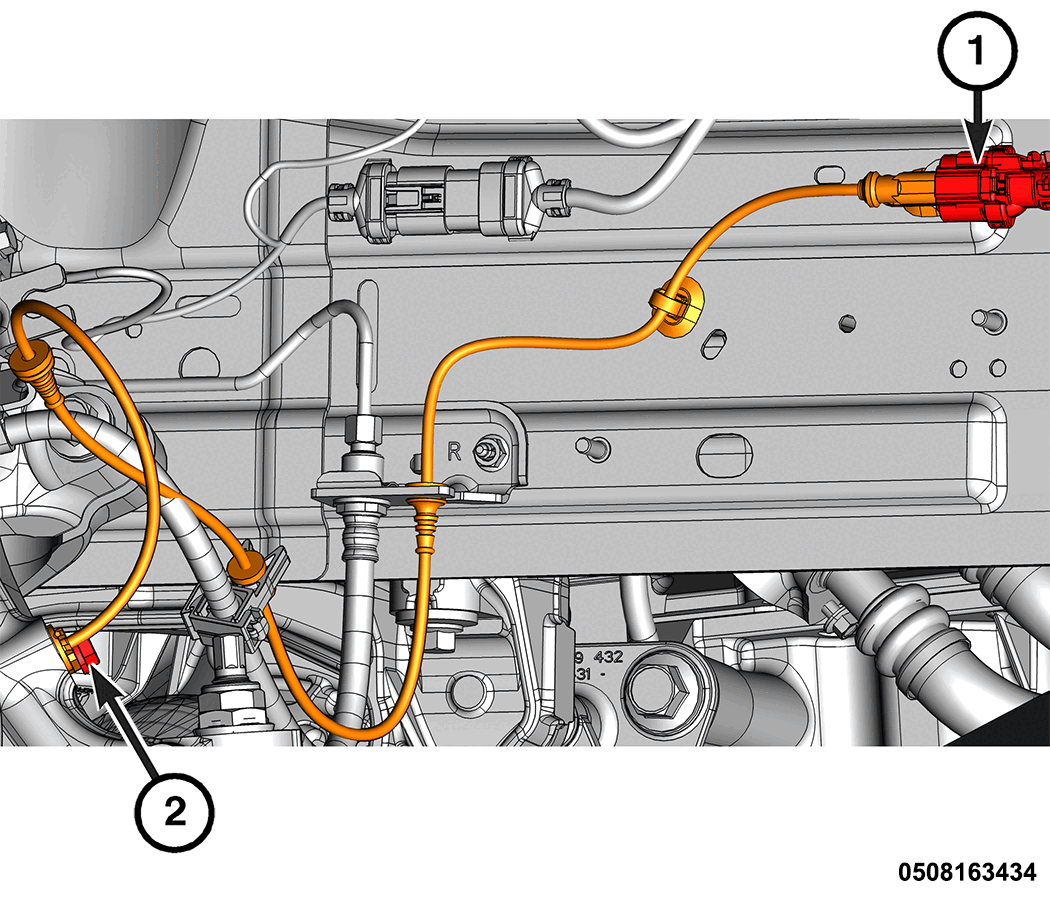

    GC0201841Courtesy of CHRYSLER GROUP, LLC
    1 - Wire Harness Connector
    2 - Wheel Speed Sensor Bolt
  9. Remove the wheel speed sensor from the steering knuckle.
  10. On 4X4 models, have a helper apply brake pressure, then remove and DISCARD  the halfshaft hub and bearing nut.

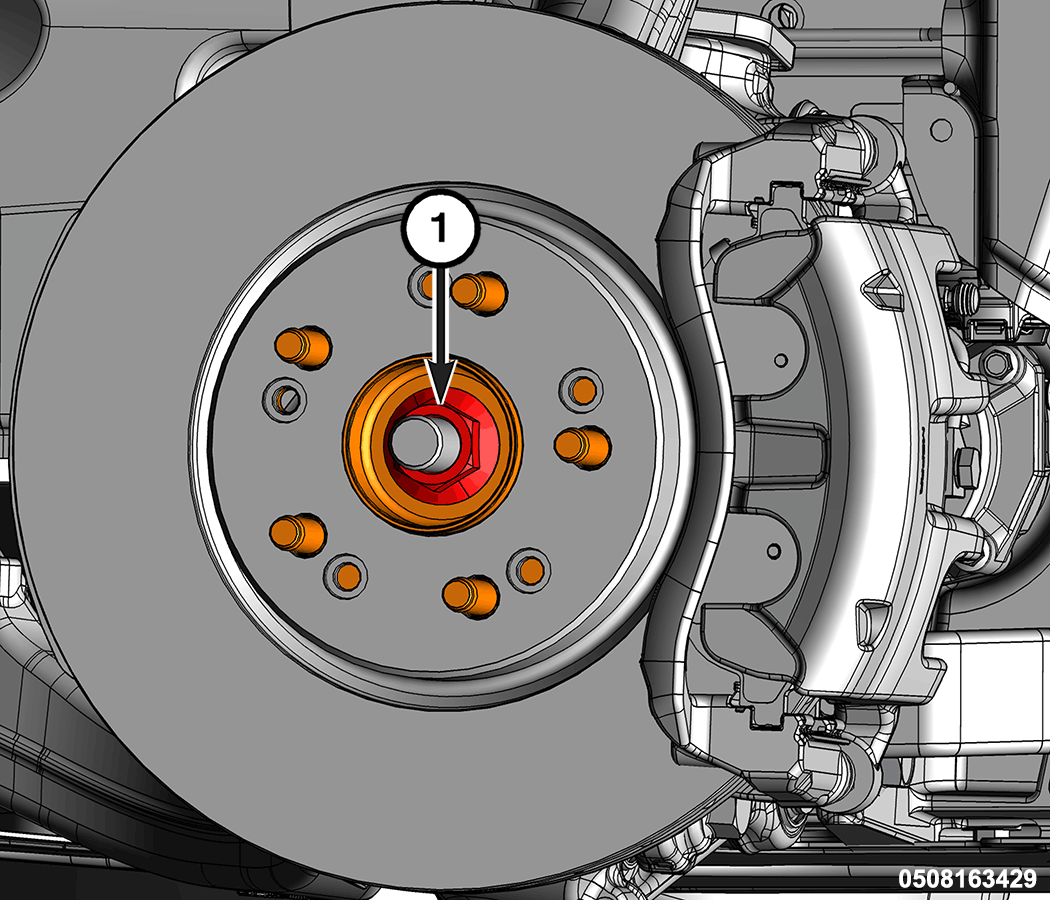

    GC0201859Courtesy of CHRYSLER GROUP, LLC
    1 - Halfshaft Hub and Bearing Nut
  11. Disconnect the upper control arm from the steering knuckle. Refer to ARM, UPPER CONTROL, REMOVAL AND INSTALLATION .
  12. Hold the nut and remove the clevis pinch bolt.
    CAUTION:

    DO NOT attempt to rotate the clevis bracket pinch nut. The clevis bracket pinch nut is pressed in the clevis bracket and damage will occur if the nut is rotated.

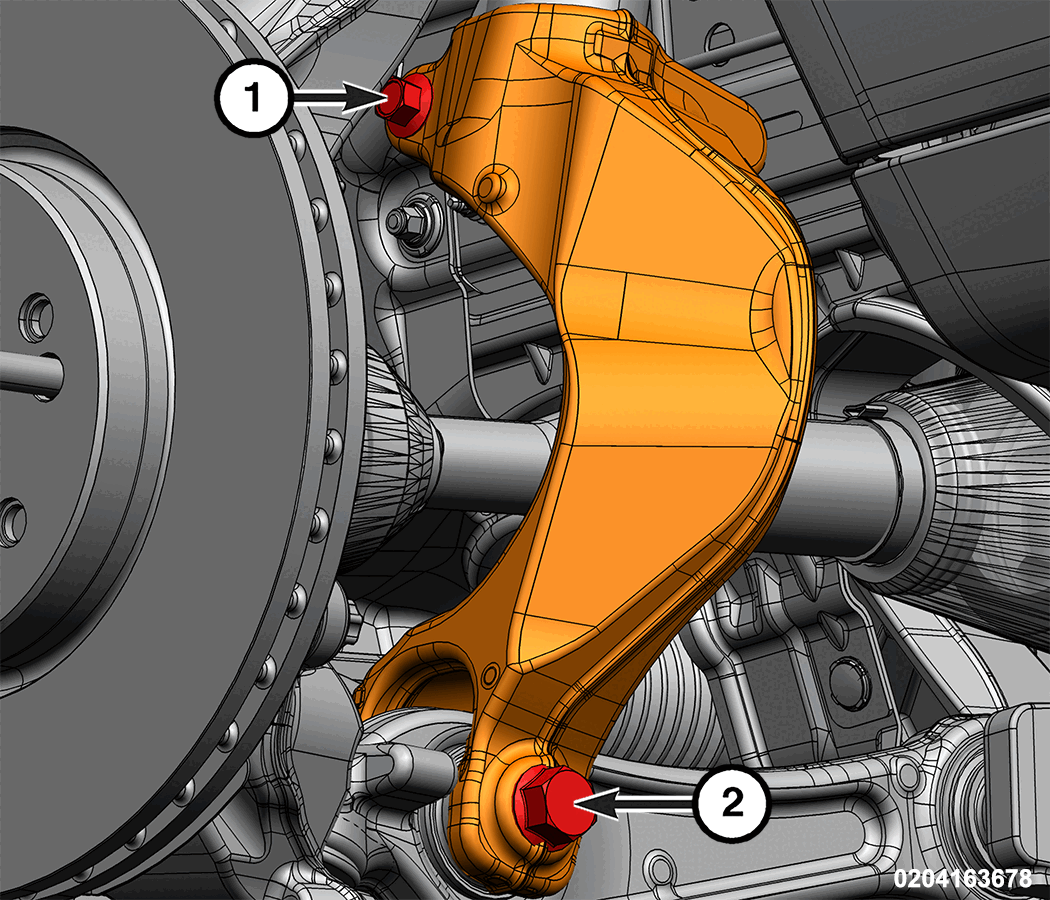

    GC0201236Courtesy of CHRYSLER GROUP, LLC
    1 - Clevis Pinch Bolt
    2 - Clevis Lower Bolt
  13. Hold the clevis lower nut and remove the clevis lower bolt.
    CAUTION:

    DO NOT attempt to rotate the clevis lower nut. The clevis lower nut is pressed in the clevis bracket and damage will occur if the nut is rotated.

  14. Disengage the clevis from the shock absorber.
  15. Remove the clevis.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

CAUTION:

DO NOT attempt to rotate the clevis lower nut. The clevis lower nut is pressed in the clevis bracket and damage will occur if the nut is rotated.

CAUTION:

DO NOT attempt to rotate the clevis bracket pinch nut. The clevis bracket pinch nut is pressed in the clevis bracket and damage will occur if the nut is rotated.
