Torque Specifications - Front Axle - 195FIA

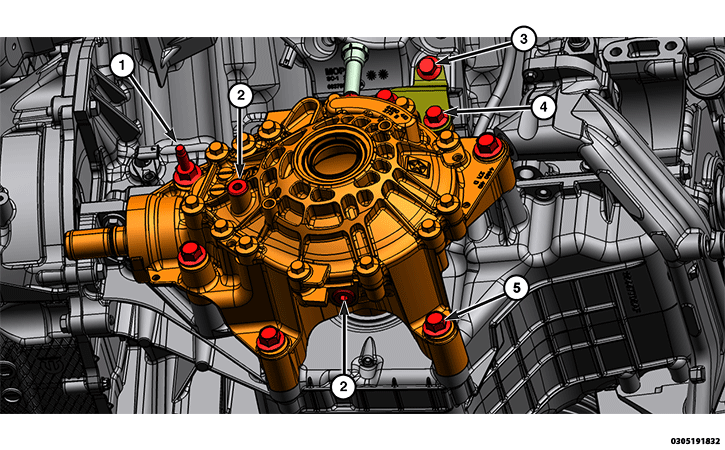

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Front Axle to Engine Stud Bolt | Torque Procedure
|
- |
| 2 | Drain and Fill Plugs | 35 N. m (26 Ft. Lbs.) | - |
| 3 | Front Axle Support Bracket Bolts to Engine | 55 N.m (41 Ft. Lbs.) | - |
| 4 | Front Axle Support Bracket Bolts to PDU | 55 N.m (41 Ft. Lbs.) | - |
| 5 | Front Axle to Engine Bolts | Torque Procedure
|
- |
| - | Differential Vent Fitting | 15 N. m (11 In. Lbs.) | - |

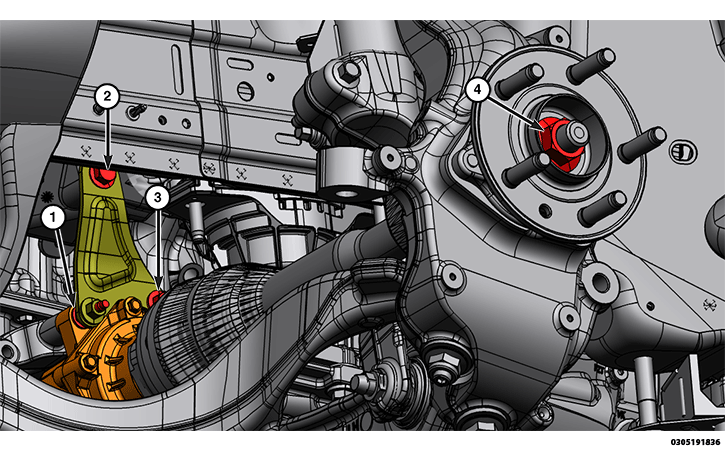

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Front Axle Disconnect (FAD) to Engine Bolt (Double Ended Stud) | 55 N. m (41 Ft. Lbs.) | - |
| 2 | Front Axle Disconnect (FAD) Bracket Bolt | 35 N. m (26 Ft. Lbs.) | - |
| 3 | Front Axle Disconnect (FAD) Bracket Nut | 30 N. m (22 Ft. Lbs.) | - |
| 4 | Halfshaft Hub Nut | 310 N. m (229 Ft. Lbs.) | If removed, NEW nut must be installed and tightened to specifications |
