| 1 |

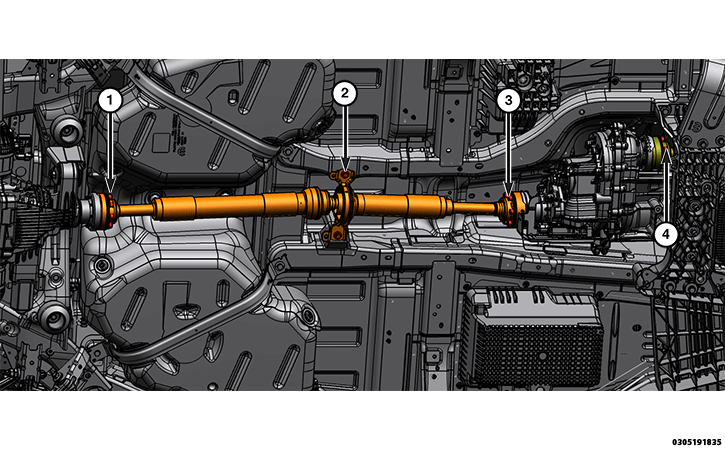

Rear Driveshaft to Rear Pinion Flange Bolts |
56 N. m (41 Ft. Lbs.) |
If removed, NEW
bolts must be installed and tightened to specifications |
| 2 |
Rear Driveshaft Center Support Bearing Bolts |
55 N. m (41 Ft. Lbs.) |
If removed, NEW
bolts must be installed and tightened to specifications |
| 3 |
Rear Driveshaft to Transfer Case Flange Bolts |
56 N. m (41 Ft. Lbs.) |
If removed, NEW
bolts must be installed and tightened to specifications |
| 4 |
Front Driveshaft to Transfer Case Flange Bolts |
56 N. m (41 Ft. Lbs.) |
If removed, NEW
bolts must be installed and tightened to specifications |
