Torque Specifications - Hydraulic Control Unit (HCU)

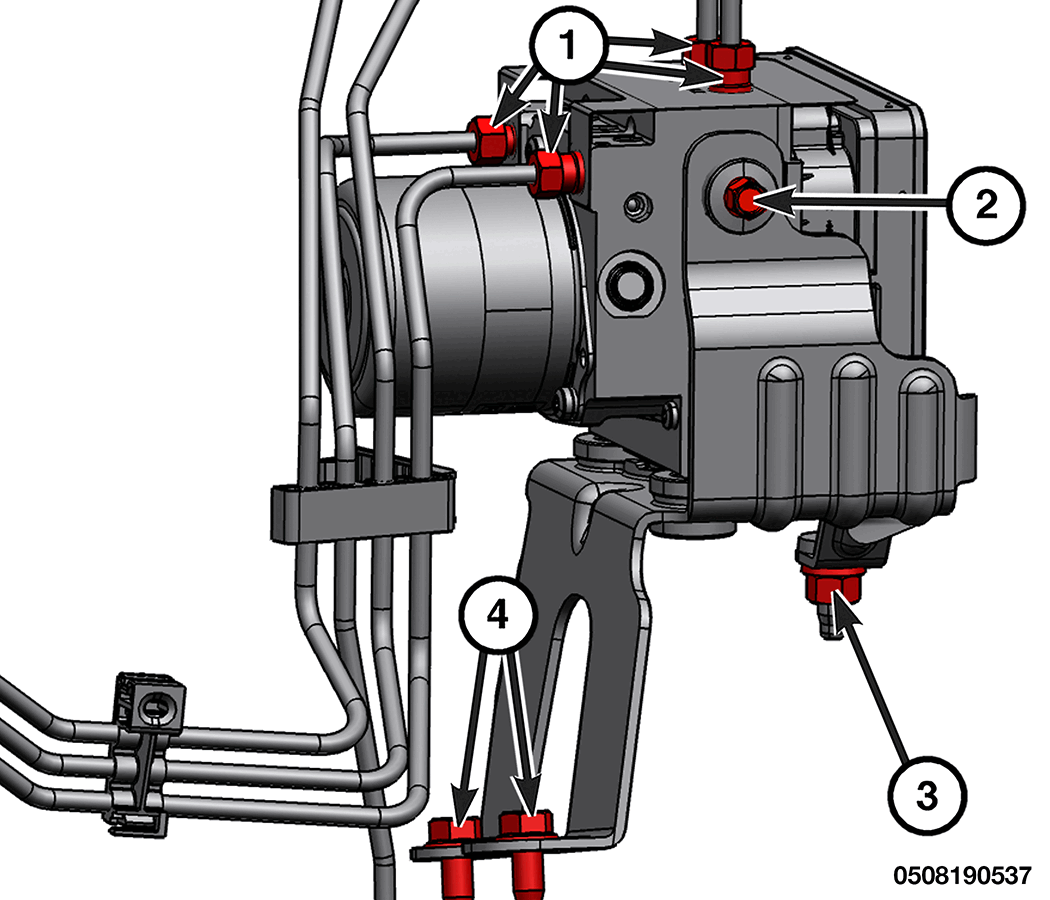

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Hydraulic Control Unit (HCU) Brake Line Flare Nuts | 20 N. m (15 Ft. Lbs.) | - |
| 2 | Hydraulic Control Unit (HCU) Bolt | 11 N. m (8 Ft. Lbs.) | - |
| 3 | Hydraulic Control Unit (HCU) Bracket Nut | 13 N. m (10 Ft. Lbs.) | - |
| 4 | Hydraulic Control Unit (HCU) Bracket Bolt | 13 N. m (10 Ft. Lbs.) | - |
