Torque Specifications - Brake System Control Module 2 (BSCM2)

Courtesy of CHRYSLER GROUP, LLC

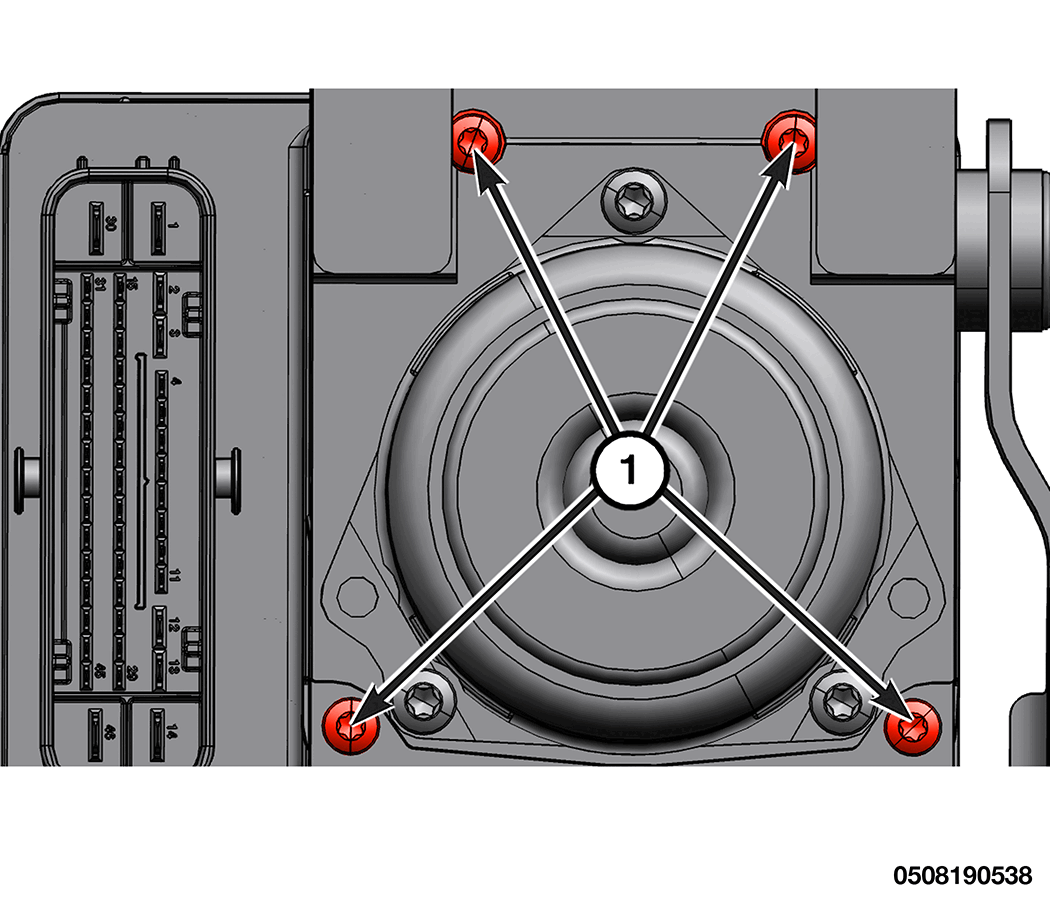

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT

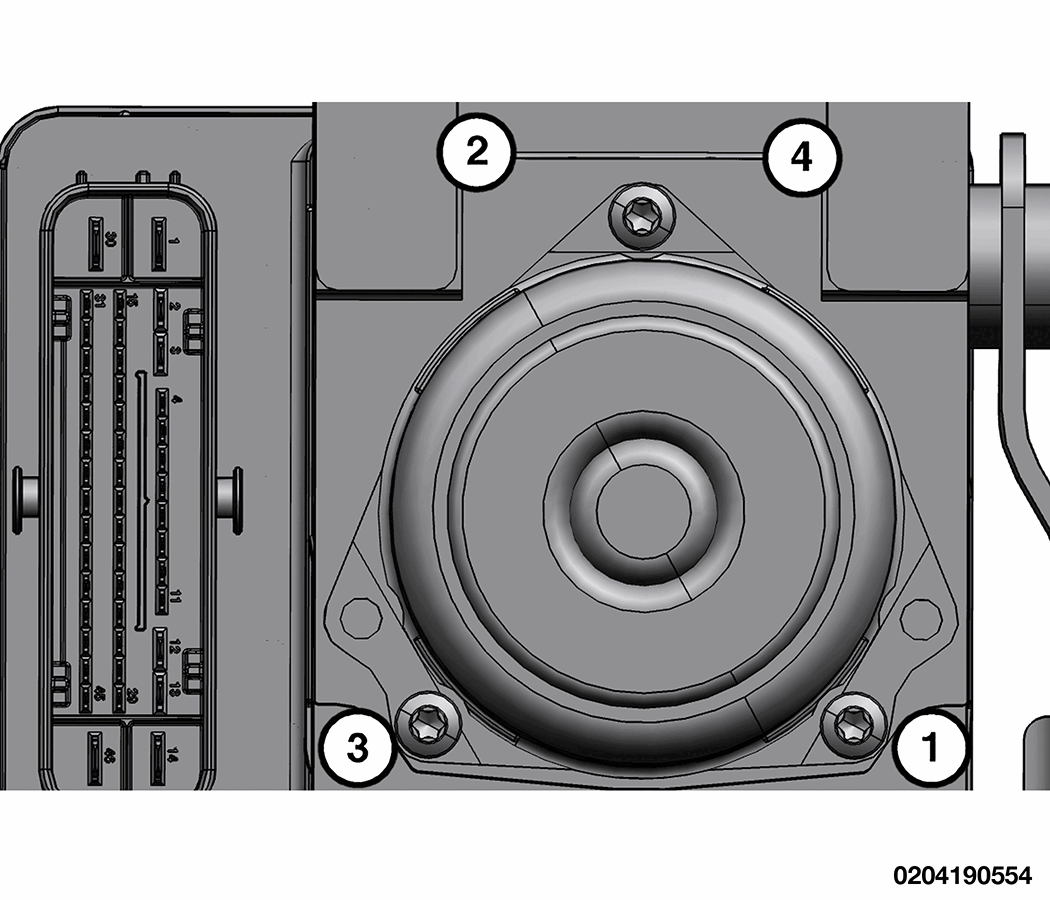

1	Brake System Control Module (BSCM) Bolts (First Stage)	2.75 N. m (24 In. Lbs.)	Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. Courtesy of CHRYSLER GROUP, LLC
1	Brake System Control Module (BSCM) Bolts (Second Stage)	3.5 N. m (31 In. Lbs.)	Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. Courtesy of CHRYSLER GROUP, LLC
