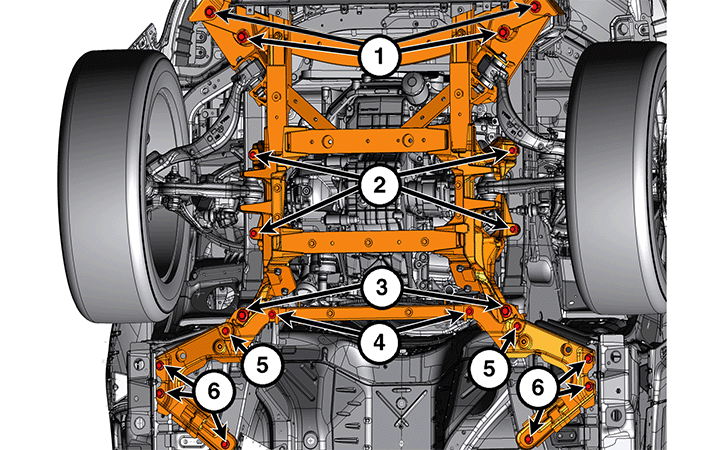

| 1 |
Cradle to Body 1 and 2 Attachment Bolts |
150 N.m (111 Ft. Lbs.) |
Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 2 |
Front Crossmember to Body Bolts - Middle |
49 N.m (36 Ft. Lbs.) |
Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 3 |
Front Crossmember to Body Bolts - Rear |
150 N.m (110 Ft. Lbs.) |
Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 4 |

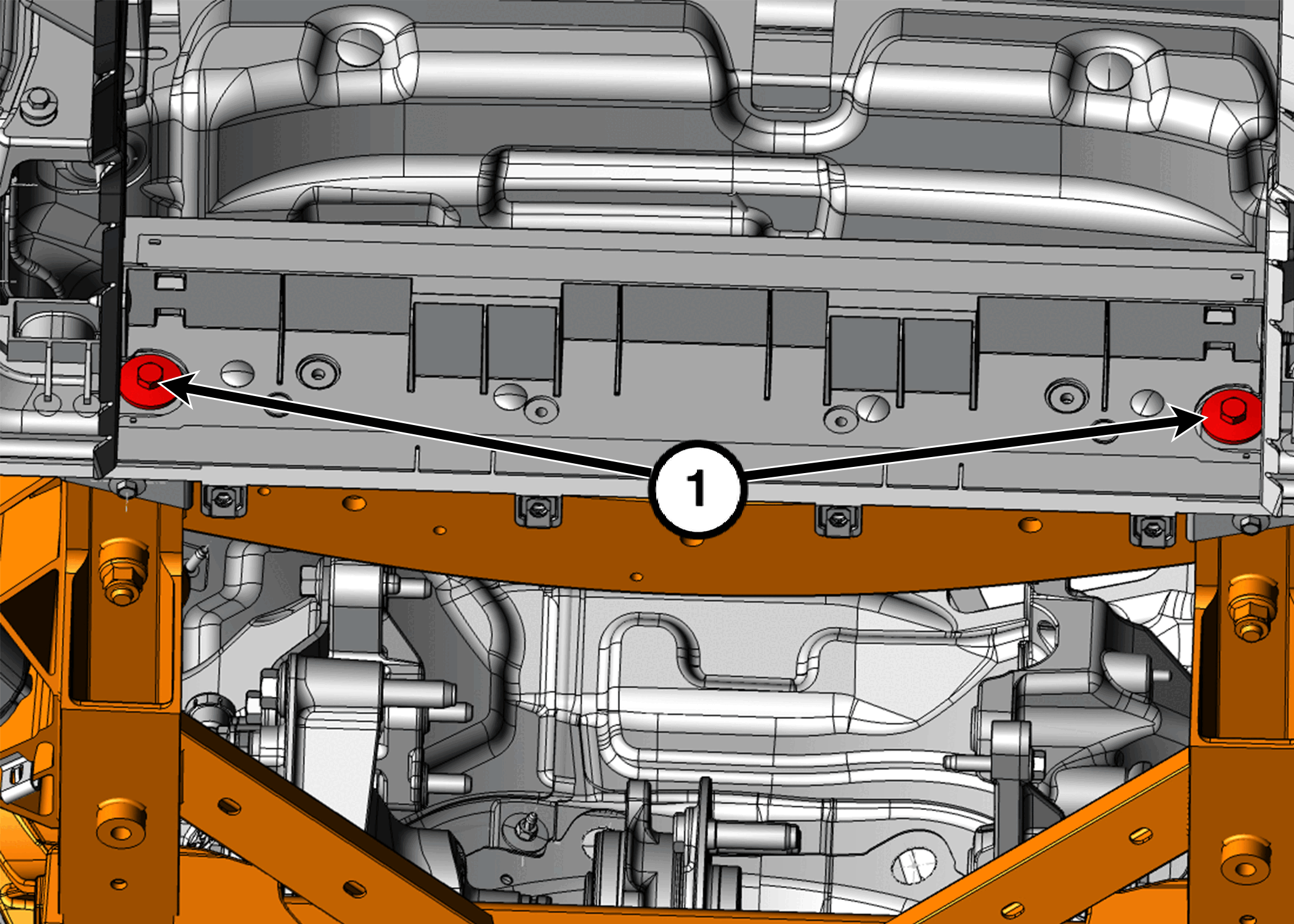

Shear Plate to Torque Box Crossmember |
20 N.m (15 Ft. Lbs.) |
- |
| 5 |
Shear Plate to Cradle |
63 N.m (46 Ft. Lbs.) |
- |
| 6 |
Shear Plate to Body |
100 N.m (74 Ft. Lbs.) |
- |
