Torque Specifications - Front Bumper Reinforcement
Torque Specifications - Front Bumper Reinforcement
Courtesy of CHRYSLER GROUP, LLC
CALLOUT
DESCRIPTION
SPECIFICATION
COMMENT

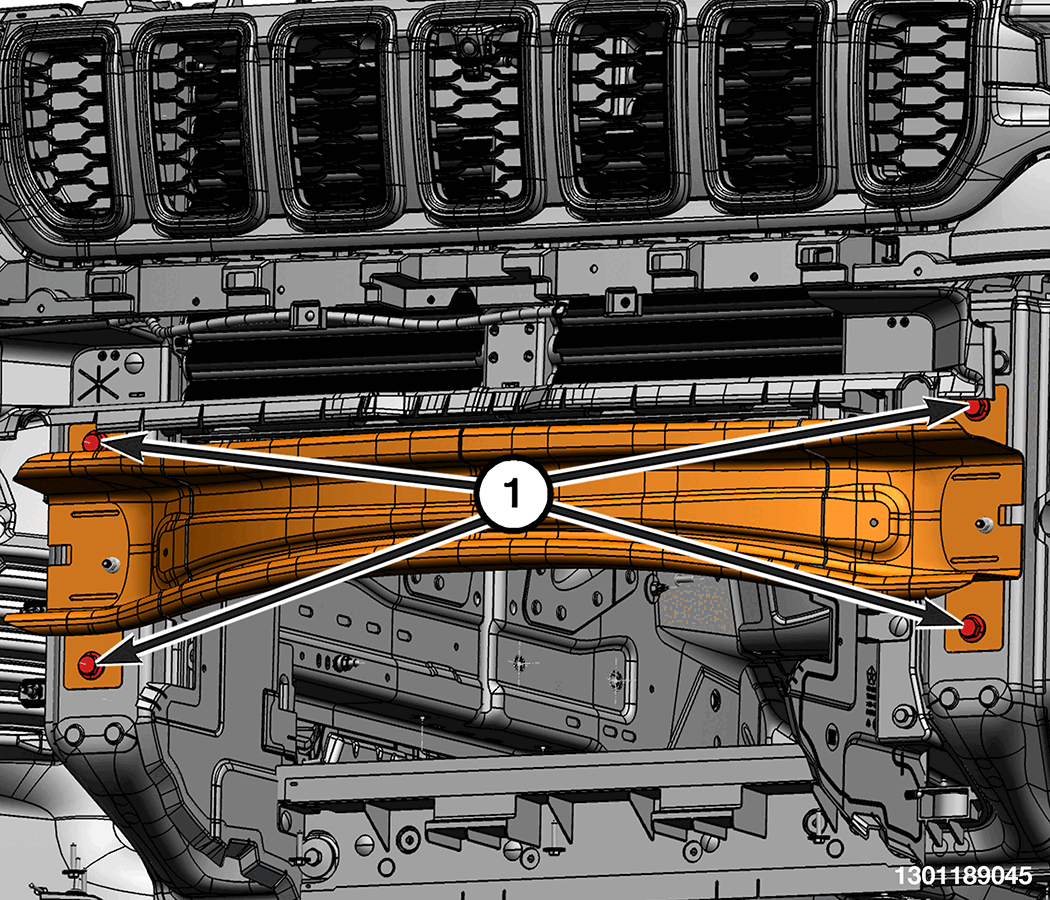

1
Front Bumper Reinforcement
41 N.m (30 Ft. Lbs.)
-
Courtesy of CHRYSLER GROUP, LLC
