Torque Specifications - CROSSMEMBERS - PHEV
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Torque Box Crossmember to Support Bracket Bolts | 70 N. m (52 Ft. Lbs.) | - |
| 2 | Transmission Crossmember to Body Bolts | 110 N. m (73 Ft. Lbs.) | - |
| 3 | Transmission Crossmember to Crossmember Bolts | 110 N. m (73 Ft. Lbs.) | - |

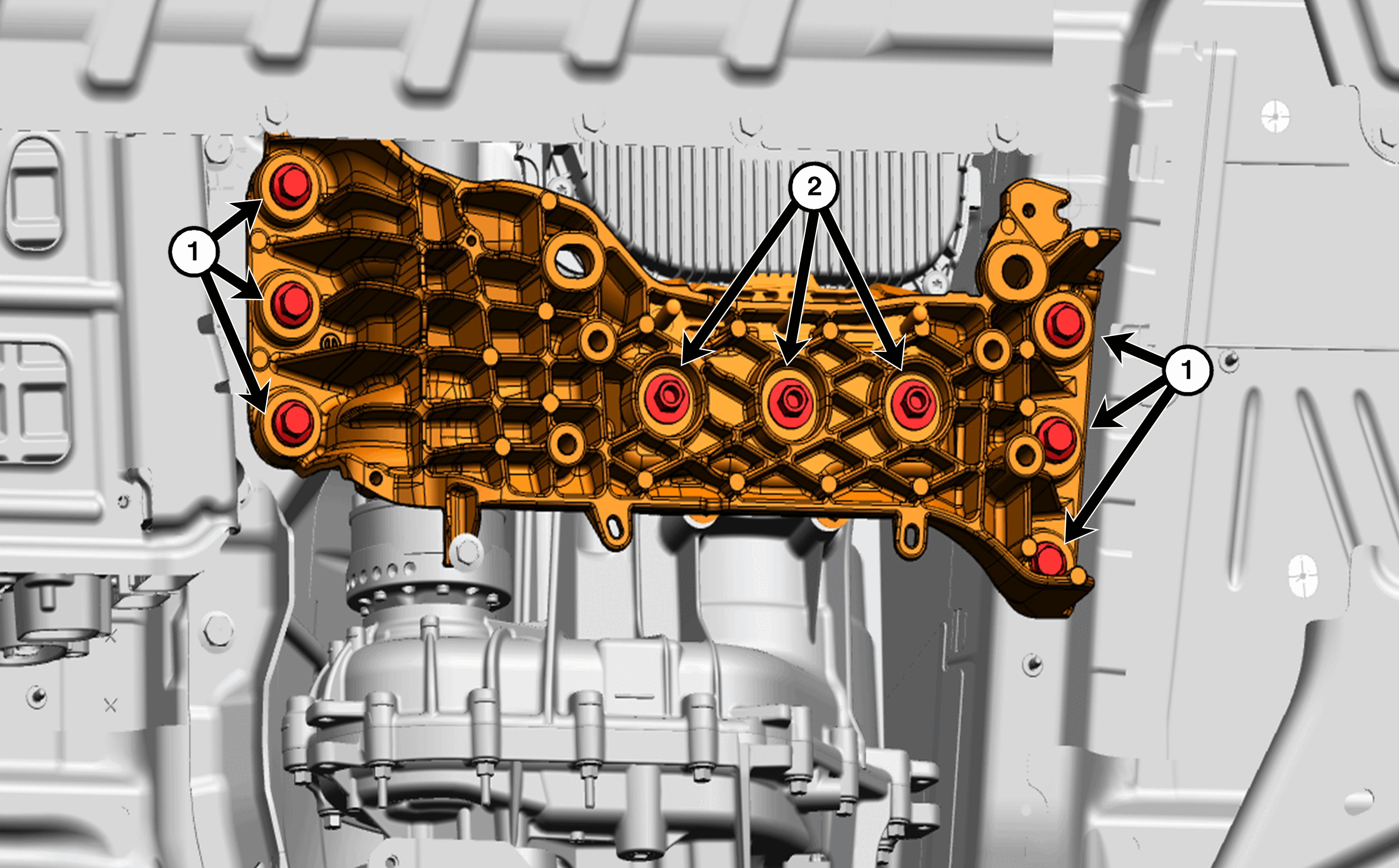

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Crossmember to Body PHEV | 61 N. m (45 Ft. Lbs.) | - |
| 2 | Transmission Mount to Crossmember | 62.5 N. m (46 Ft. Lbs.) | - |
