Stabilizer Bar Link: Notes

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Hold the stud and remove the stabilizer bar link upper nut using (special tool #2027800020, Kit, Remover - Installer Shock / Strut).

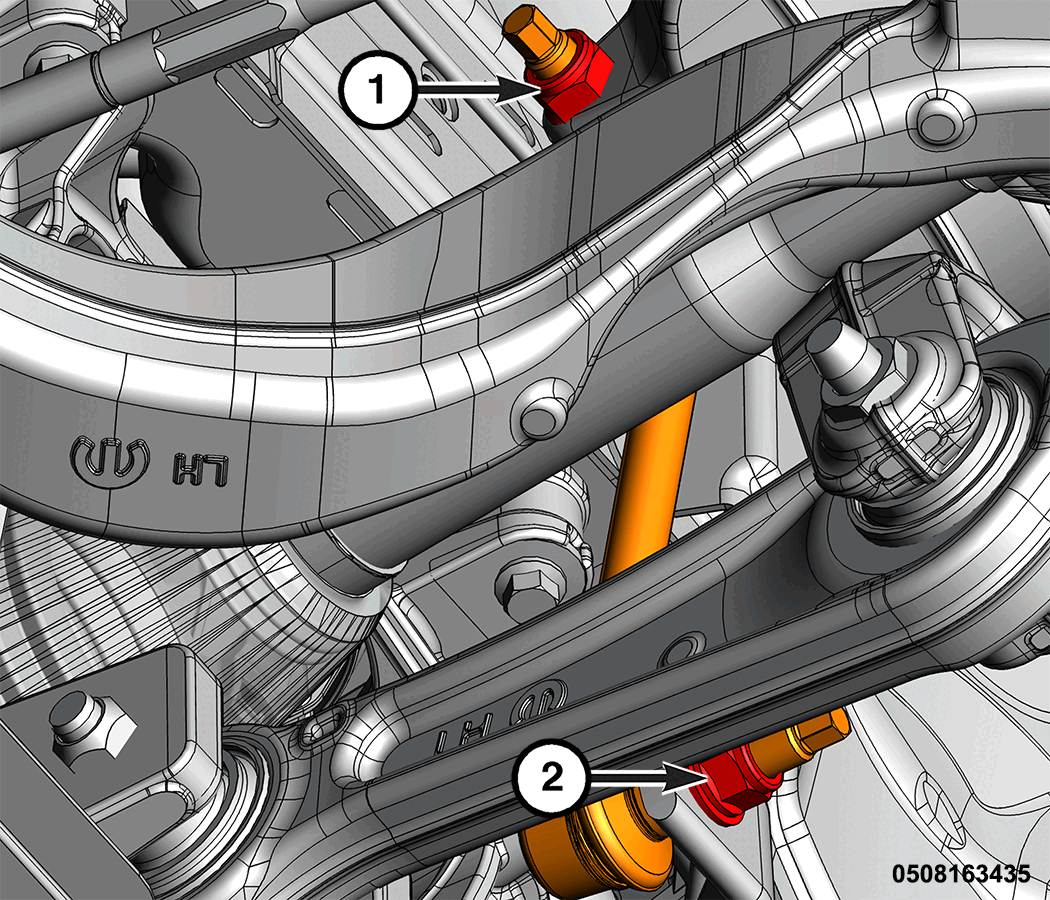

   Courtesy of CHRYSLER GROUP, LLC

   1 - Stabilizer Bar Link Upper Nut

   2 - Stabilizer Bar Link Lower Nut

3. Hold the stud and remove the stabilizer bar link lower nut.
4. Remove the stabilizer bar link.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
