Removal And Installation: Battery: Notes

REMOVAL

WARNING:

To protect the hands from battery acid, a suitable pair of heavy duty rubber gloves should be worn when removing or servicing a battery. Safety glasses also should be worn.

WARNING:

Remove metallic jewelry to avoid injury by accidental arcing of battery current.

Remove the Intelligent Battery Sensor (IBS). Refer to SENSOR, INTELLIGENT BATTERY (IBS), REMOVAL AND INSTALLATION .

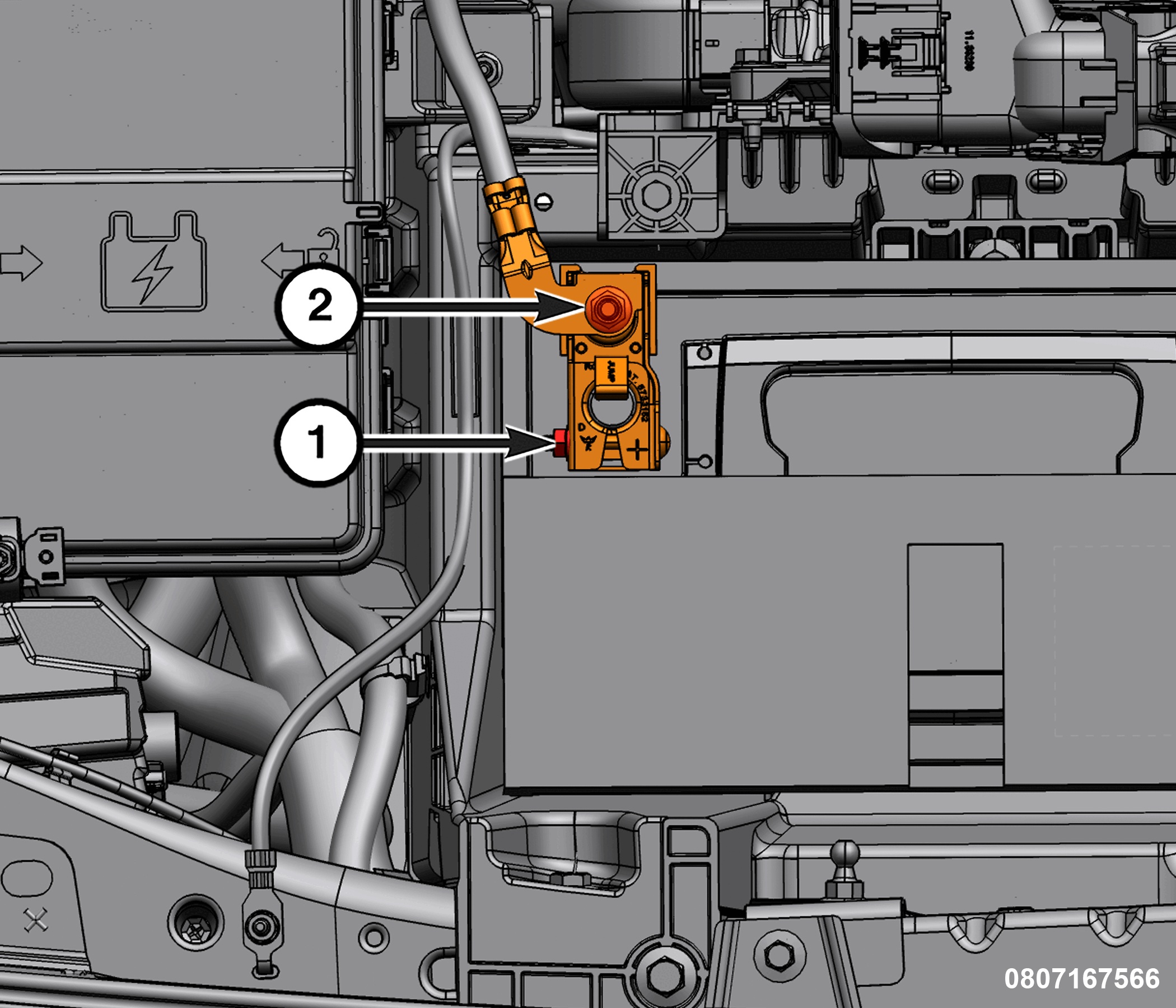

Courtesy of CHRYSLER GROUP, LLC

1 - Positive Battery Cable Nut

2 - Positive Battery Cable
Loosen the positive battery cable nut and remove the positive battery cable.

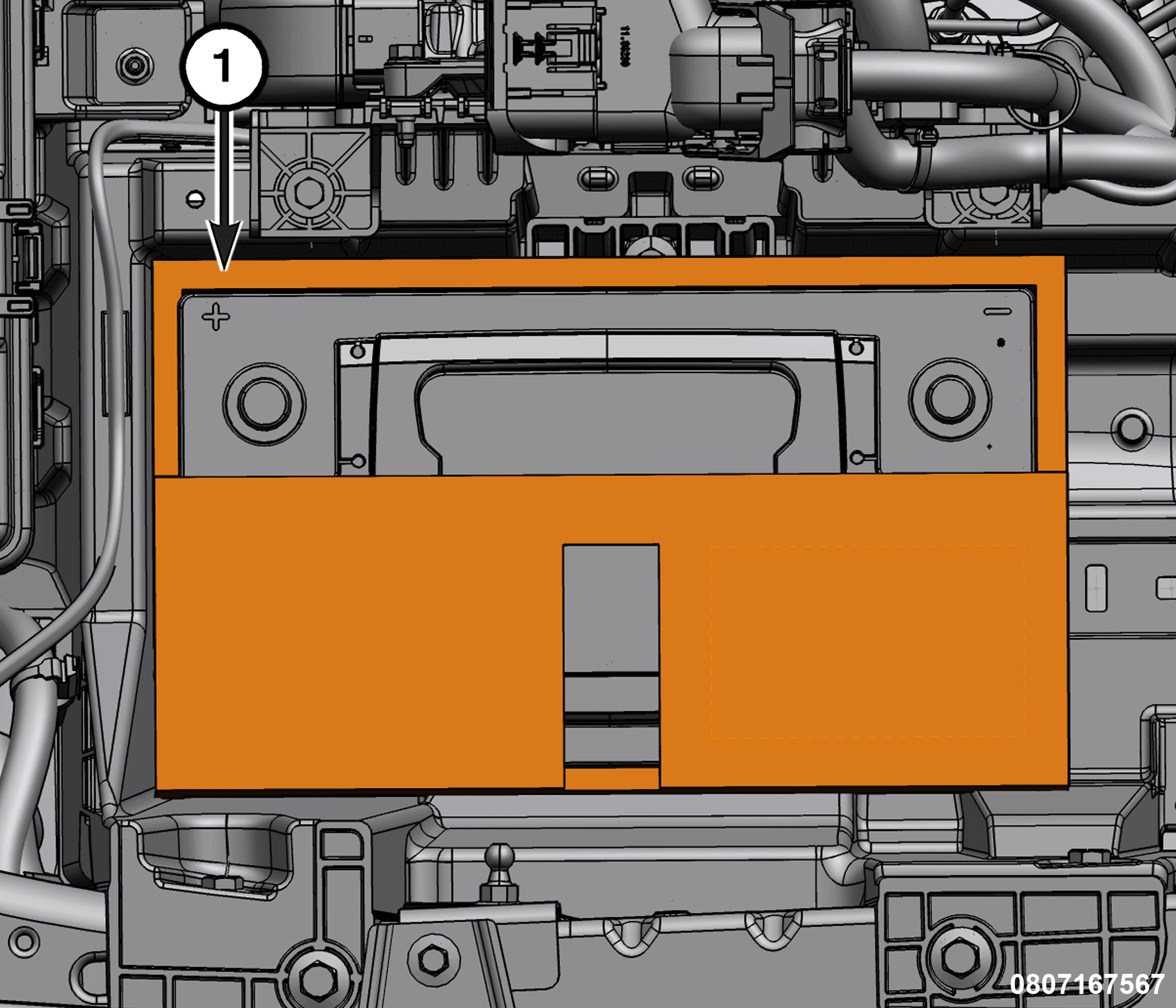

Courtesy of CHRYSLER GROUP, LLC

1 - Battery Thermal Cover

NOTE:
If the battery thermal cover is damaged, torn, or ripped it will need to be replaced.

Remove the battery thermal cover from the battery.

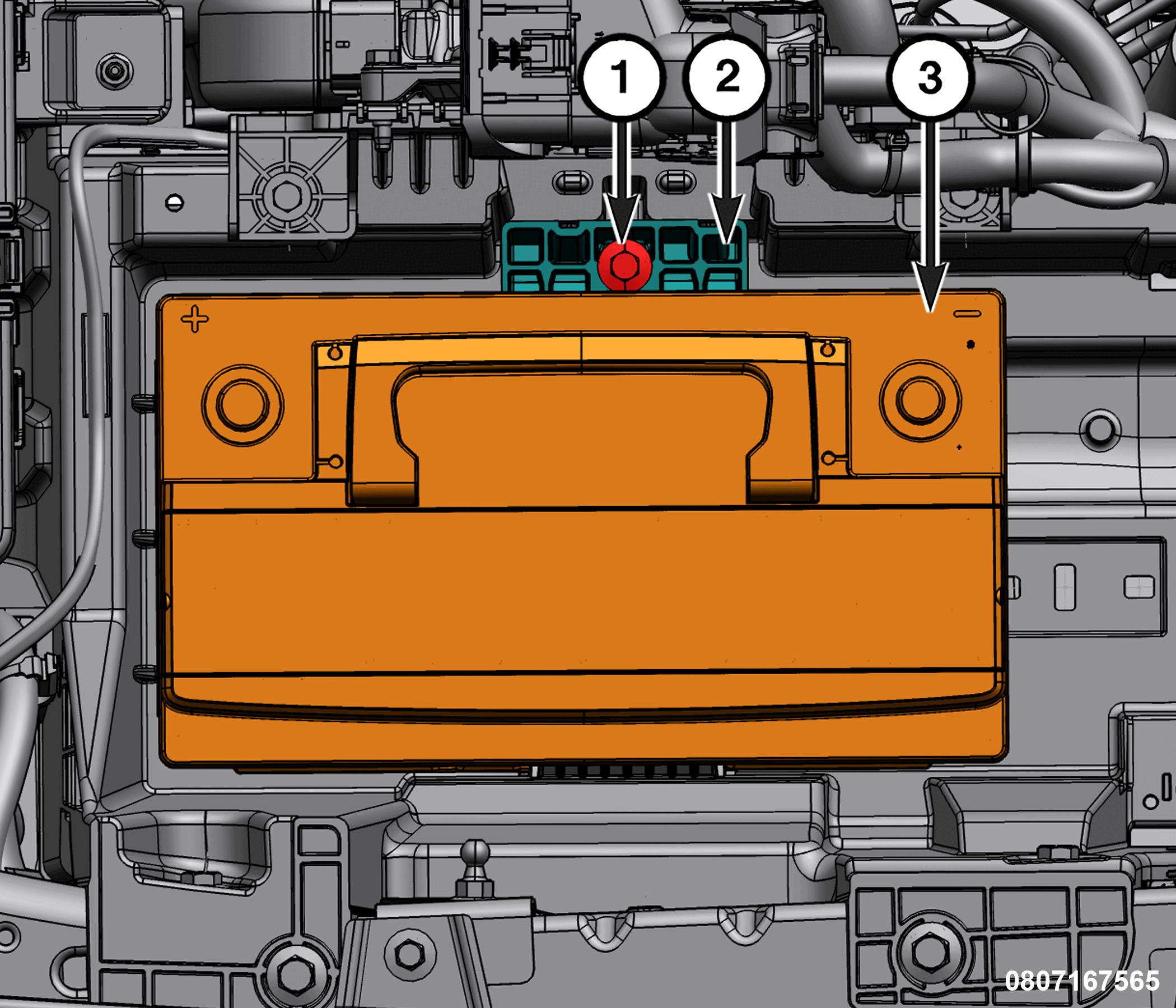

Courtesy of CHRYSLER GROUP, LLC

1 - Battery Hold Down Bolt

2 - Battery Hold Down

3 - Battery

Remove the battery hold down bolt and remove the hold down.
Remove the battery from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
