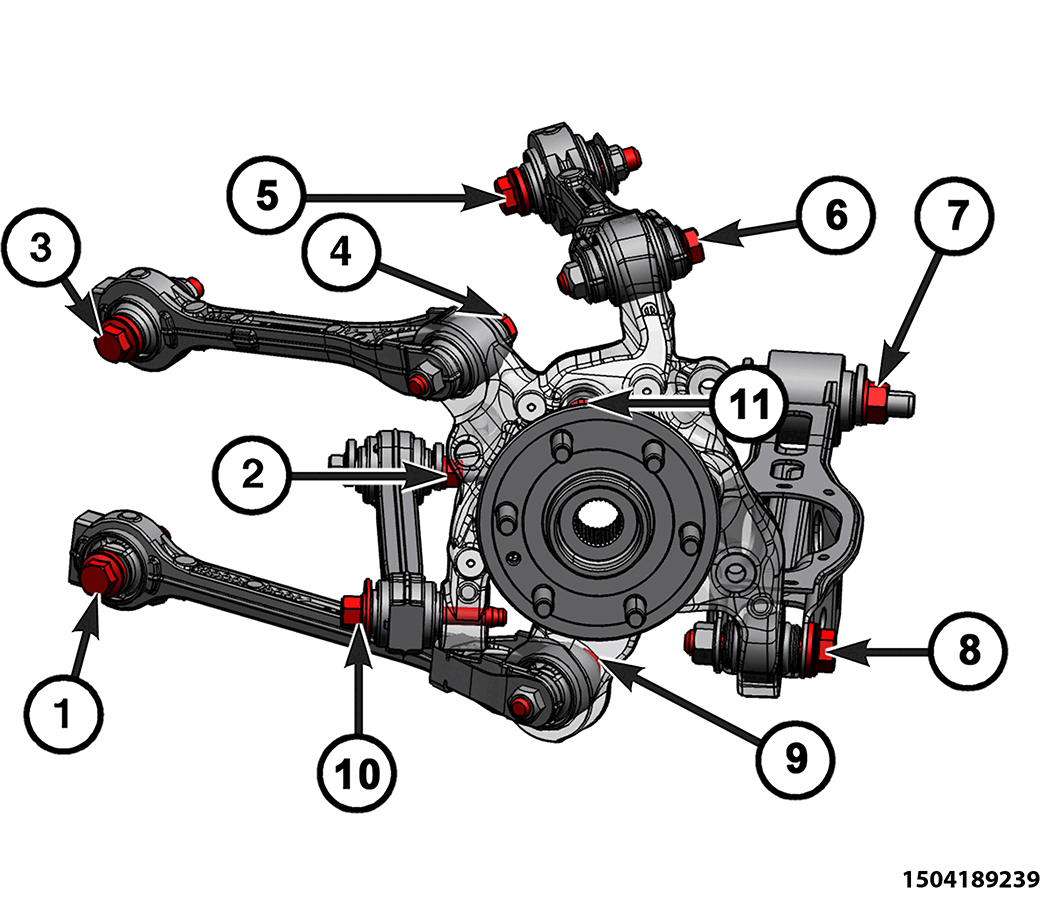

| 1 |
Compression Link Inner Bolt |
215 N. m (159 Ft. Lbs.) |
Fastener must be torqued with the vehicle at normal ride height. Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 2 |
Toe Link Inner Nut |
140 N. m (103 Ft. Lbs.) |
Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 3 |
Tension Link Inner Bolt |
215 N. m (159 Ft. Lbs.) |
Fastener must be torqued with the vehicle at normal ride height. |
| 4 |
Tension Link Outer Bolt |
215 N. m (159 Ft. Lbs.) |
Fastener must be torqued with the vehicle at normal ride height. |
| 5 |
Camber Link Inner Bolt |
215 N. m (159 Ft. Lbs.) |
Fastener must be torqued with the vehicle at normal ride height. |
| 6 |
Camber Link Outer Bolt |
215 N. m (159 Ft. Lbs.) |
Fastener must be torqued with the vehicle at normal ride height. |
| 7 |
Spring Link Inner Nut |
275 N. m (203 Ft. Lbs.) |
- |
| 8 |
Spring Link Outer Bolt |
200 N. m (148 Ft. Lbs.) |
Fastener must be torqued with the vehicle at normal ride height. |
| 9 |
Compression Link Outer Bolt |
215 N. m (159 Ft. Lbs.) |
Fastener must be torqued with the vehicle at normal ride height. |
| 10 |
Toe Link Outer Bolt |
140 N. m (103 Ft. Lbs.) |
Fastener must be torqued with the vehicle at normal ride height. Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 11 |

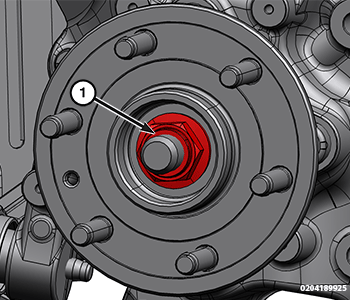

Hub and Bearing Bolts |
150 N. m (111 Ft. Lbs.) |
- |
