Stabilizer Bar: Notes

REMOVAL

NOTE:

The air suspension system can be disabled and enabled by using the Display Screen Module (DSM) in the vehicle under Tire Jack Mode, which is the preferred method. If the disable level control routine in the scan tool is used, it will only disable the level control (automatic and manual) for that ignition cycle. The air suspension system can also be enabled by driving the vehicle above 19 km/h (12 mph). The air suspension should be disabled prior to lifting the vehicle or performing any work.

If equipped with air suspension, disable the air suspension system. Refer to DISABLING AND ENABLING AIR SUSPENSION .
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Disconnect both stabilizer bar links from the stabilizer bar. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

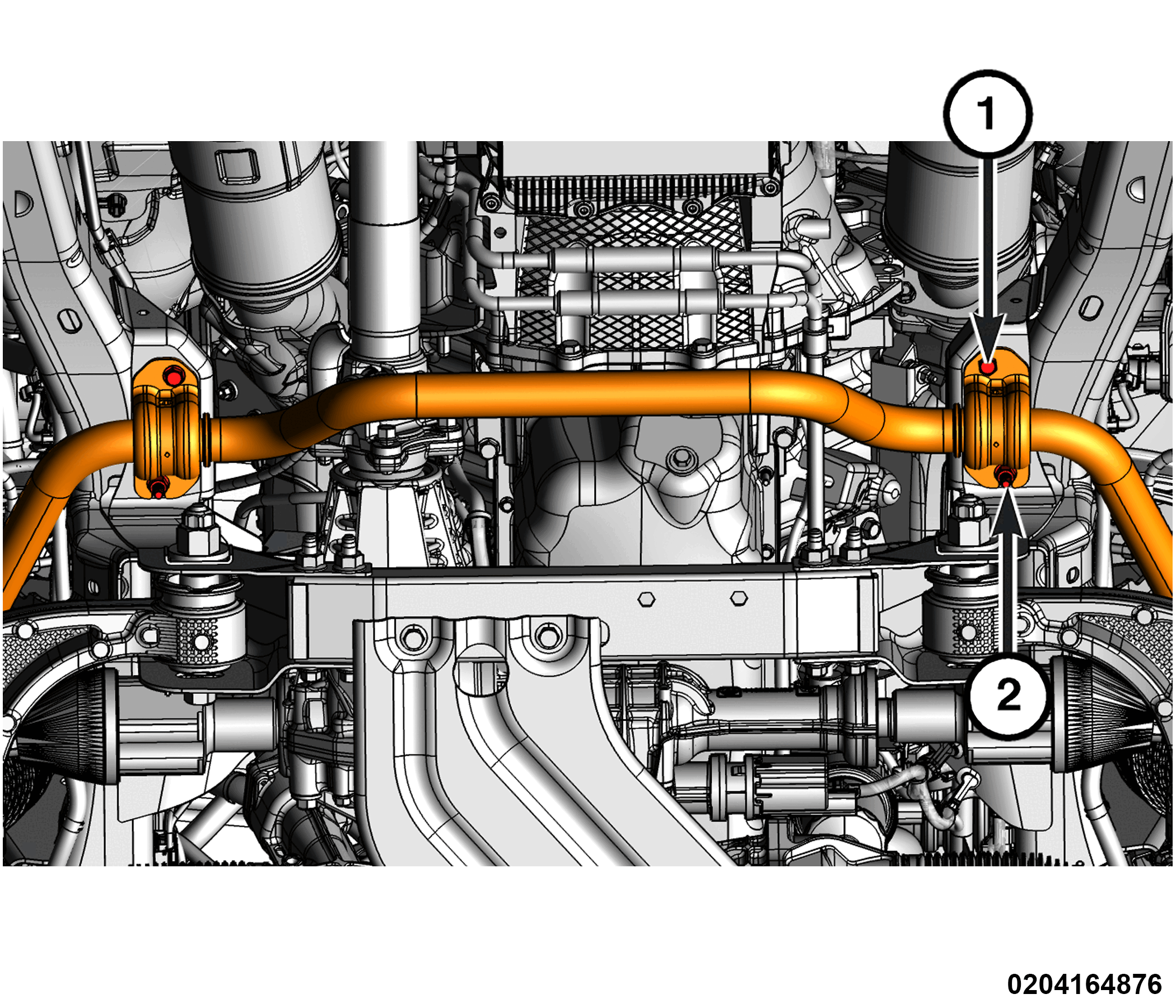

1 - Stabilizer Bar Bolts

2 - Stabilizer Bar Nuts
Remove the stabilizer bar bolts.
Remove the stabilizer bar nuts.
Remove the stabilizer bar, brackets, and bushings as an assembly.
Remove the stabilizer bar brackets from the bushings.
Remove the stabilizer bar bushings from the stabilizer bar using a mixture of soapy water to slide the bushings over the bar.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

NOTE:

Lube the stabilizer bar with soapy water before installation of the bushings.
