Right Front Heat Shield: Notes

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the exhaust pipe. Refer to PIPE, EXHAUST, REMOVAL AND INSTALLATION  .
3. Remove the fasteners and the right front heat shield.

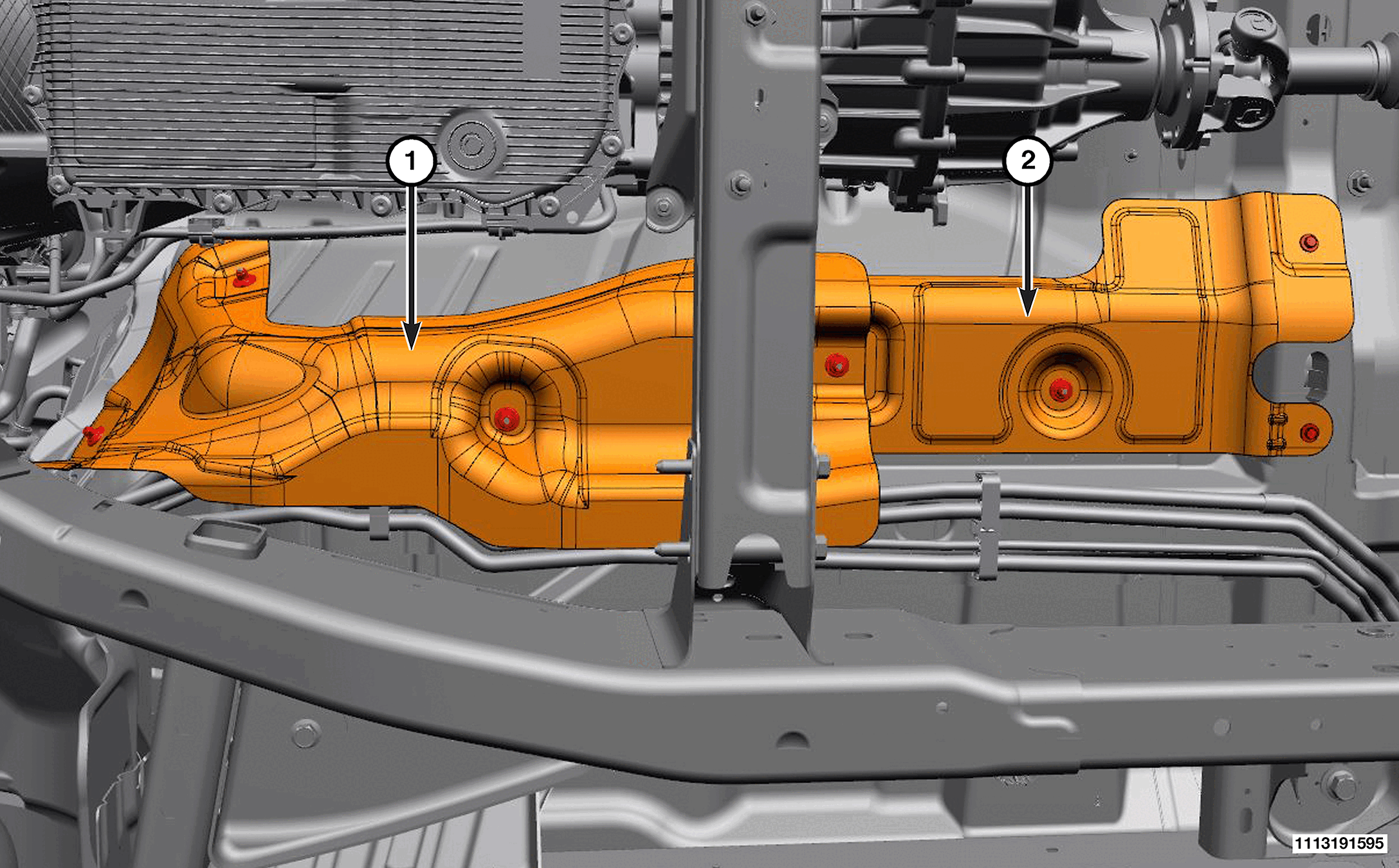

   Courtesy of CHRYSLER GROUP, LLC

   1 - Right Front Heat Shield

   2 - Right Middle Heat Shield

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
