Center Front Heat Shield: Notes

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the center front heat shield nuts and center front heat shield.

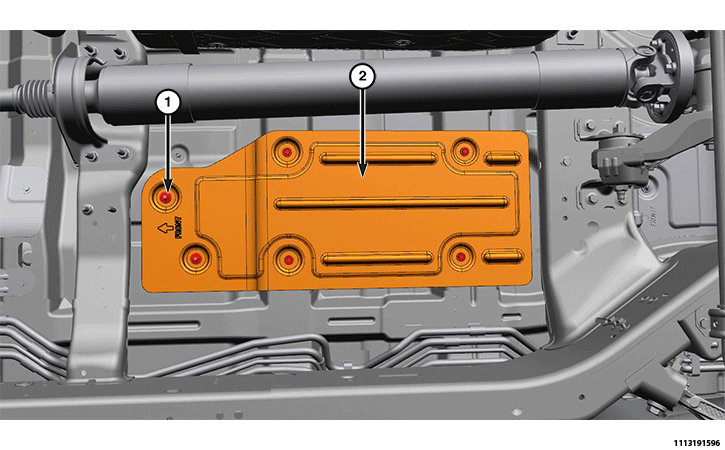

   Courtesy of CHRYSLER GROUP, LLC

   1 - Center Front Heat Shield Nuts

   2 - Center Front Heat Shield

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
