Charging System: Notes

DESCRIPTION

Courtesy of CHRYSLER GROUP, LLC

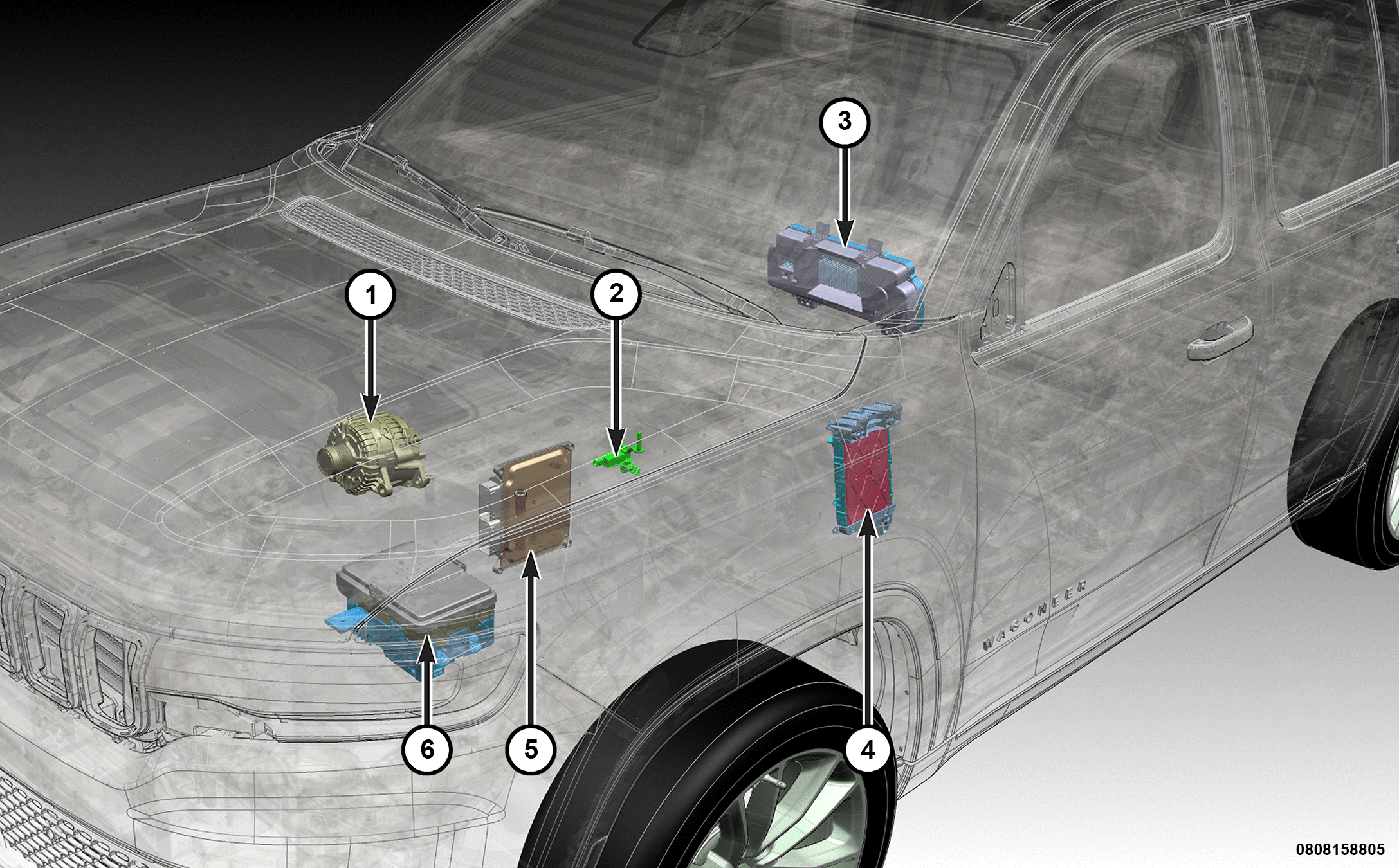

COMPONENT INDEX

1.	Alternator
2.	Intelligent Battery Sensor (IBS)
3.	Instrument Panel Cluster (IPC)
4.	Body Control Module (BCM)
5.	Powertrain Control Module (PCM) with an integrated Electronic Voltage Regulator (EVR)
6.	Power Distribution Center (PDC)
