Removal And Installation: Rear: Notes

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM .
2. Remove the left quarter trim. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

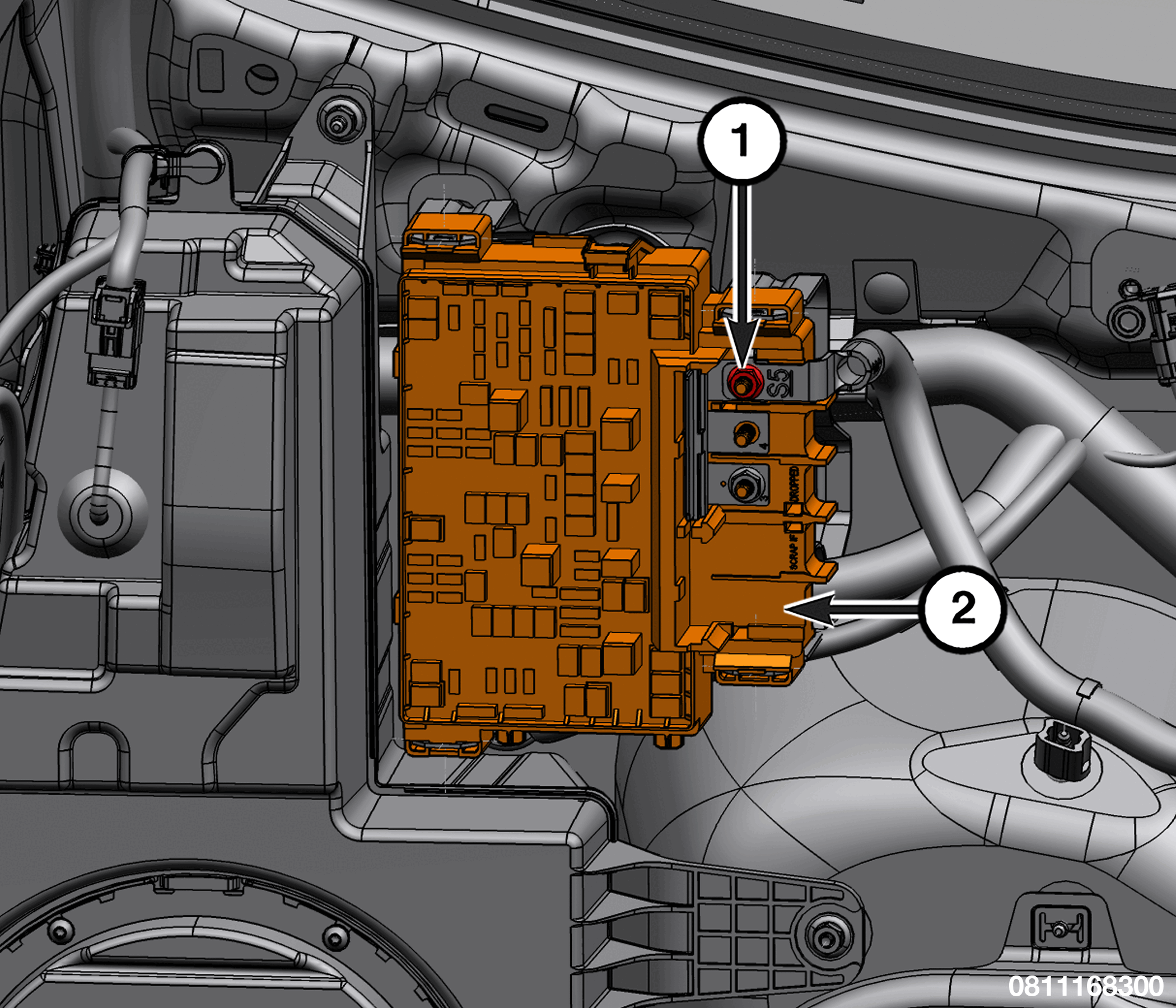

   1 - Eyelet Nut

   2 - Rear Power Distribution Center

3. Remove the eyelet nut(s), remove and isolate the electrical eyelet(s) from the rear Power Distribution Center (PDC).

   Courtesy of CHRYSLER GROUP, LLC

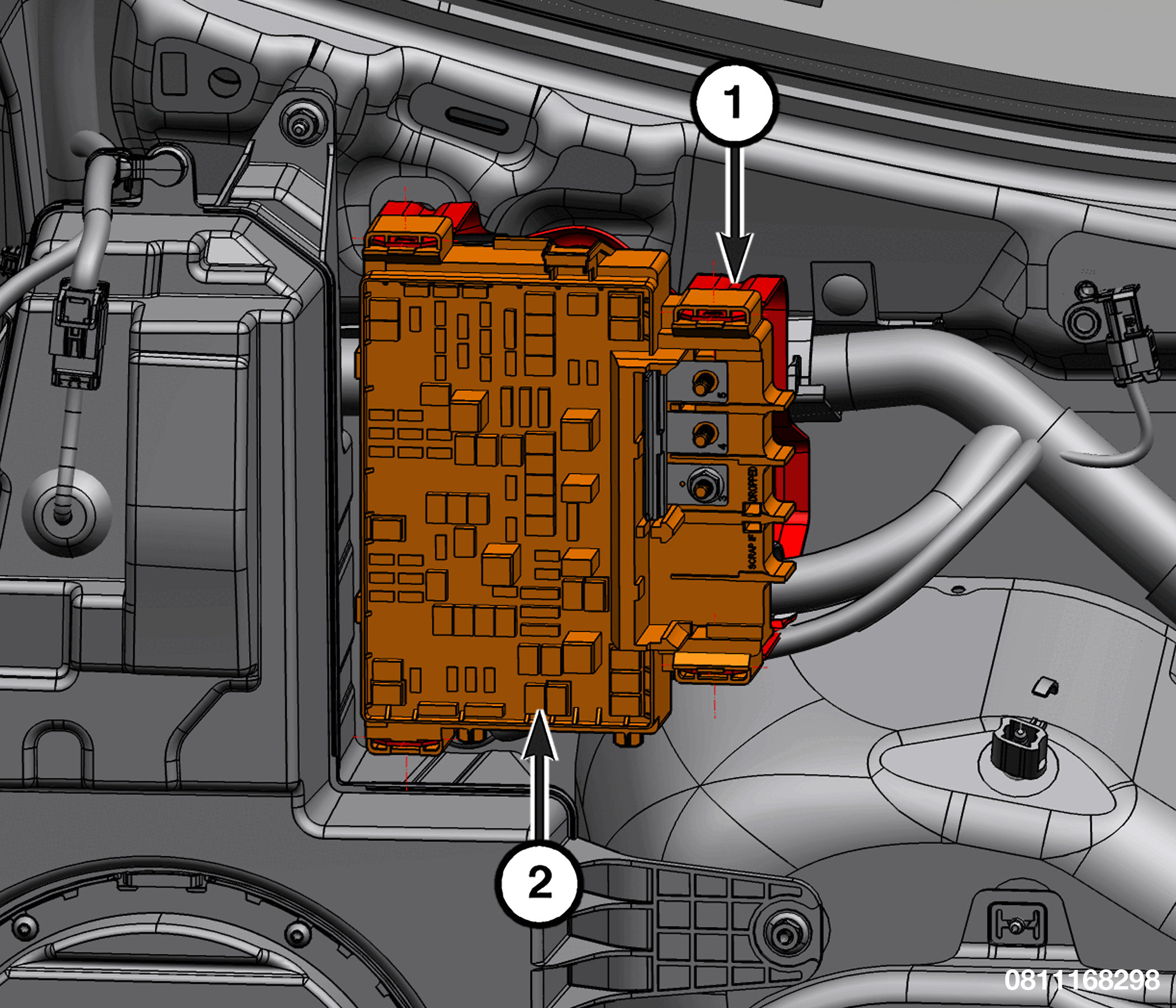

   1 - Rear PDC Latches

   2 - Rear Power Distribution Center

4. Release the Latches on the rear PDC and carefully pull the rear PDC away from the mounting bracket to access the backside of the rear PDC.

   Courtesy of CHRYSLER GROUP, LLC

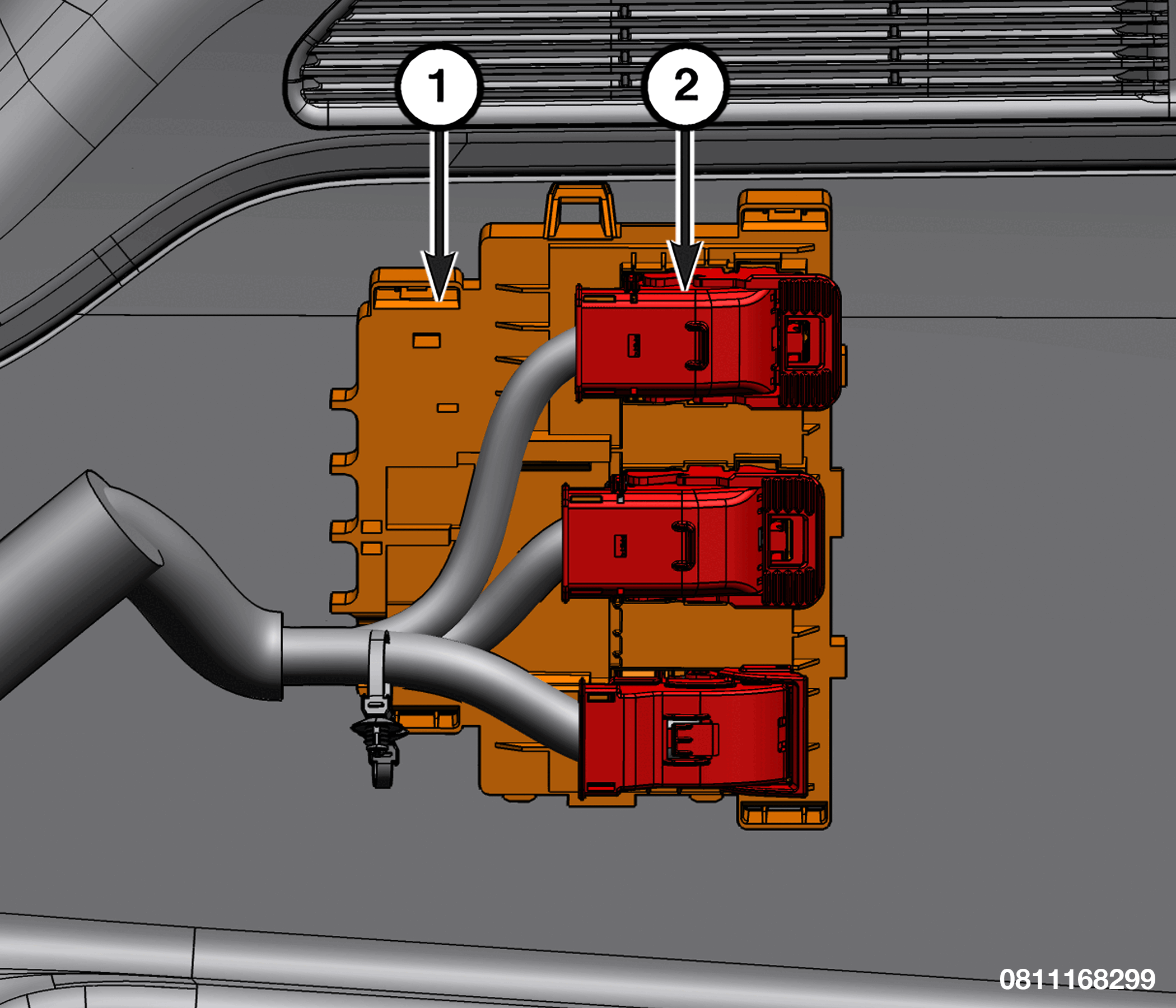

   1 - Rear Power Distribution Center

   2 - Wire Harness Connectors

5. Release the wiring harness connectors from the rear PDC and remove it from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
