Torque Specifications - Front Bumper
Torque Specifications - Front Bumper
Courtesy of CHRYSLER GROUP, LLC

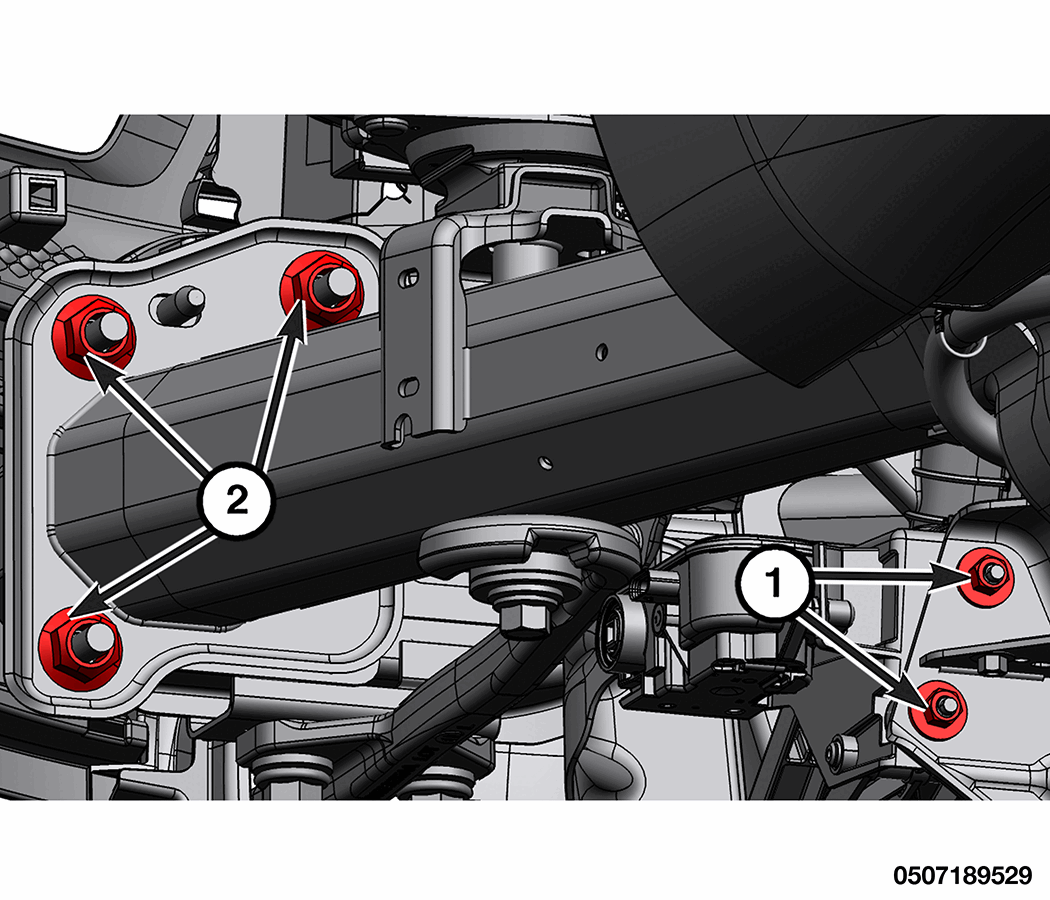

CALLOUT
DESCRIPTION
SPECIFICATION
COMMENT
1
Active Air Dam Nuts
16 N.m (12 Ft. Lbs.)
-
2
Front Bumper Reinforcement Nuts
90 N.m (66 Ft. Lbs.)
-
Courtesy of CHRYSLER GROUP, LLC
